Clean-Geartech X42N, helical bevel gear Ø25H7 hollow shaft, 17,93:1, input 90B14, V5, stainless steel
HV82PX42NI05-CFBN-TV5-E-OFThis model features a gear ratio of 17.93:1 and a two-stage gear configuration, offering efficient torque transmission. The gear efficiency is 96%, ensuring minimal power loss. With a 24 mm input shaft and 25 mm output shaft, it is compatible with a broad range of drive systems. The gear motor interface is 90B14.Constructed with stainless steel AISI 316L gears and a stainless steel Ø25H7 hollow output shaft, it is corrosion-resistant and suitable for hygienic or corrosive applications. The gear size is X42N, with a 115 mm BCD input and 90 mm BCD output.
Specifications
Product description
Downloads
€2,080.00
In stock
Expected shipment:
Loading...

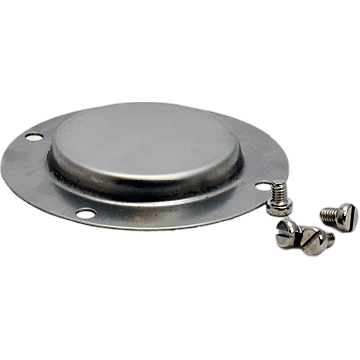

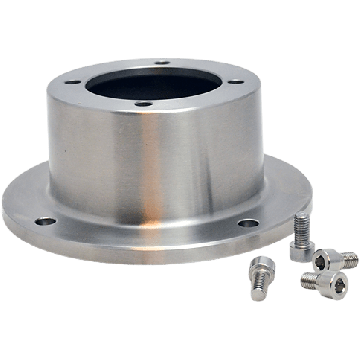

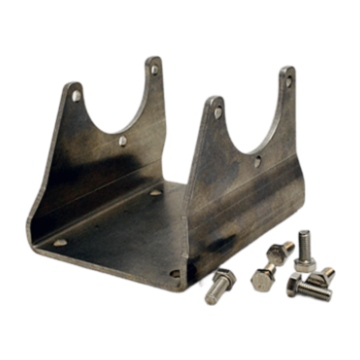

Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
17,93:1
BCD input
115
BCD output
90
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
25
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X42N
Output speed at 1400 RPM
78
Max output torque (Nm)
130
Max kW input at 1400 rpm
1.1
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a reputable European manufacturer specializing in hygienic, stainless steel gearboxes for demanding industrial environments. Known for their premium components, robustness, and clean design, Clean-Geartech gears are ideal for applications in the food processing, pharmaceutical, and chemical industries, where hygiene, corrosion resistance, and mechanical reliability are paramount.Product: Clean-Geartech X42N Bevel Gear Reducer Material: Stainless Steel AISI 316L Ratio: 17.93:1 Output shaft: Ø25 mm H7 Hollow Shaft (Stainless Steel) Input connection: IEC 90B14 motor interface Two-stage bevel gear system Gear input shaft: 24 mm Efficiency: 96%Applications and Key Benefits:
• Exceptional corrosion resistance due to full Stainless Steel AISI 316L construction—ideal for washdown areas and hygienic zones.
• Two-stage bevel gear transmission ensures compact design with high torque output—suitable for space-constrained environments in packaging and automation systems.
• Hollow output shaft Ø25H7 in stainless steel allows direct shaft-mounting for easy integration in conveyor systems or rotating drums in food or chemical processing.
• High efficiency (96%) reduces energy consumption and heat generation—ensuring long service life and minimal maintenance for continuous-duty operations.
• IEC 90B14 input flange offers versatile motor compatibility—connects seamlessly with most IEC-standard motors, simplifying system integration.
• Output angle at 90° enables flexible layout designs, allowing engineers to optimize machinery footprint without sacrificing performance.
• Smooth surface and hygienic design minimize contamination risks, making it ideal for CIP (Clean-In-Place) and SIP (Steam-In-Place) processes in the food and pharma sectors.
• Gear size X42N provides an optimal balance between torque capacity and size, engineered specifically for medium-duty industrial drive systems. This gear unit is engineered for reliable operation in challenging environments, integrating hygienic design and mechanical precision. Clean-Geartech's X42N bevel gearbox ensures technical specialists and engineers can rely on performance, hygiene, and durability all in one solution.
• Exceptional corrosion resistance due to full Stainless Steel AISI 316L construction—ideal for washdown areas and hygienic zones.
• Two-stage bevel gear transmission ensures compact design with high torque output—suitable for space-constrained environments in packaging and automation systems.
• Hollow output shaft Ø25H7 in stainless steel allows direct shaft-mounting for easy integration in conveyor systems or rotating drums in food or chemical processing.
• High efficiency (96%) reduces energy consumption and heat generation—ensuring long service life and minimal maintenance for continuous-duty operations.
• IEC 90B14 input flange offers versatile motor compatibility—connects seamlessly with most IEC-standard motors, simplifying system integration.
• Output angle at 90° enables flexible layout designs, allowing engineers to optimize machinery footprint without sacrificing performance.
• Smooth surface and hygienic design minimize contamination risks, making it ideal for CIP (Clean-In-Place) and SIP (Steam-In-Place) processes in the food and pharma sectors.
• Gear size X42N provides an optimal balance between torque capacity and size, engineered specifically for medium-duty industrial drive systems. This gear unit is engineered for reliable operation in challenging environments, integrating hygienic design and mechanical precision. Clean-Geartech's X42N bevel gearbox ensures technical specialists and engineers can rely on performance, hygiene, and durability all in one solution.
