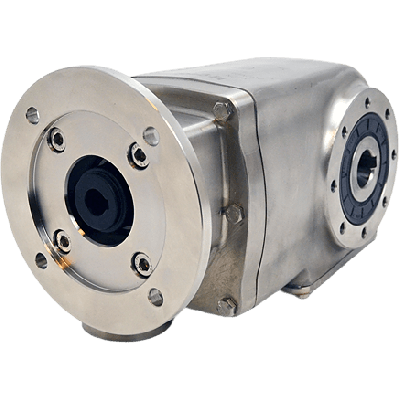

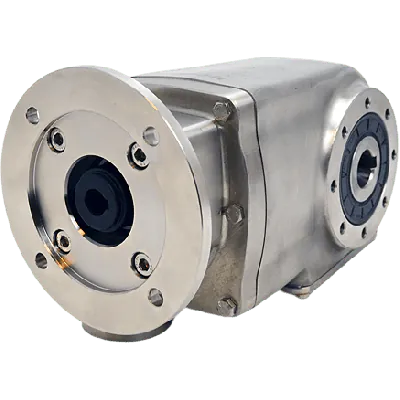

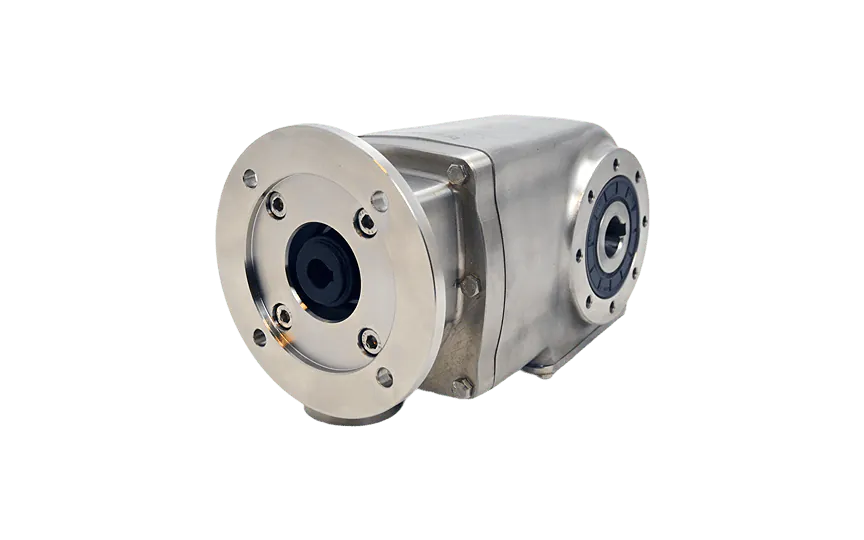

Clean-Geartech X42N, helical bevel gear Ø25H7 hollow shaft, 15,27:1, input 90B14, V5, stainless steel
HV82PX42NI04-CFBN-TV5-E-OFThe Clean-Geartech X42N, bevel gear Ø25H7 hollow shaft, 15.27:1, input 90B14, stainless steel, is a compact and efficient gear solution designed for demanding environments. It features a gear ratio of 15.27:1 and a 2-stage configuration, providing reliable torque transmission. The gear input shaft diameter is 24 mm, while the output shaft is a Ø25H7 hollow shaft. Built for long-term use, it is constructed with stainless steel AISI 316L gears and offers a 96% efficiency. The gear unit is compatible with a 90B14 motor interface and sized as X42N for standardized integration. It supports a BCD input of 115 mm and a BCD output of 90 mm.
Specifications
Product description
Downloads
€2,080.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
15,27:1
BCD input
115
BCD output
90
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
25
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X42N
Output speed at 1400 RPM
92
Max output torque (Nm)
130
Max kW input at 1400 rpm
1.3
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a specialized manufacturer of hygienic, high-performance gear systems engineered for demanding industrial environments. Designed for reliability and optimized for use in food processing, pharmaceutical, chemical, and cleanroom applications, Clean-Geartech products are renowned for their precision engineering, corrosion resistance, and compliance with strict hygiene standards. Made in Europe, the brand promises lasting durability and technical flexibility for engineers who demand both performance and cleanliness.Key Features and Benefits:
✔ Fully constructed from AISI 316L stainless steel, including the housing and Ø25H7 hollow output shaft – ensuring maximum corrosion resistance in aggressive and hygienic environments.
✔ Bevel gear configuration with 2-stage reduction offers a high ratio of 15.27:1 – ideal for speed reduction with high torque transmission in compact spaces.
✔ 96% efficiency – minimizes energy losses and reduces operational costs over time, contributing to optimized power utilization.
✔ Hollow output shaft with Ø25 mm dimension enables direct connection to driven equipment without the need for coupling – simplifying installation and minimizing misalignment issues.
✔ Designed with 90B14 motor flange input – provides compatibility with standard IEC motors for easy integration into existing systems.
✔ Input shaft Ø24 mm allows flexibility in motor selection and coupling options – supporting high adaptability across applications.
✔ Gear size X42N offers an optimized balance between torque capacity and installation footprint – suitable for applications where space is restricted.
✔ Ideal for use in environments requiring strict hygiene control such as food and beverage processing, pharmaceuticals, biotechnology, and harsh chemical processing.
✔ Maintenance-free operation due to sealed and lubricated-for-life housing – reducing downtime and total cost of ownership.
✔ Precision-machined components ensure smooth, low-noise operation even under continuous loads – increasing the reliability of mechanical systems.
✔ Suitable for conveyor systems, agitators, packaging machinery, and dosing systems where reliability, hygiene, and corrosion resistance are critical.
✔ Fully constructed from AISI 316L stainless steel, including the housing and Ø25H7 hollow output shaft – ensuring maximum corrosion resistance in aggressive and hygienic environments.
✔ Bevel gear configuration with 2-stage reduction offers a high ratio of 15.27:1 – ideal for speed reduction with high torque transmission in compact spaces.
✔ 96% efficiency – minimizes energy losses and reduces operational costs over time, contributing to optimized power utilization.
✔ Hollow output shaft with Ø25 mm dimension enables direct connection to driven equipment without the need for coupling – simplifying installation and minimizing misalignment issues.
✔ Designed with 90B14 motor flange input – provides compatibility with standard IEC motors for easy integration into existing systems.
✔ Input shaft Ø24 mm allows flexibility in motor selection and coupling options – supporting high adaptability across applications.
✔ Gear size X42N offers an optimized balance between torque capacity and installation footprint – suitable for applications where space is restricted.
✔ Ideal for use in environments requiring strict hygiene control such as food and beverage processing, pharmaceuticals, biotechnology, and harsh chemical processing.
✔ Maintenance-free operation due to sealed and lubricated-for-life housing – reducing downtime and total cost of ownership.
✔ Precision-machined components ensure smooth, low-noise operation even under continuous loads – increasing the reliability of mechanical systems.
✔ Suitable for conveyor systems, agitators, packaging machinery, and dosing systems where reliability, hygiene, and corrosion resistance are critical.
