Clean-Geartech X42N, helical bevel gear Ø25H7 hollow shaft, 15,27:1, input 90B14, B3, stainless steel
HV82PX42NI04-CFBN-TB3-E-OFThis gear unit features a gear ratio of 15.27:1 and two gear stages, providing effective torque conversion and speed reduction. The efficiency is 96%, ensuring minimal energy loss during operation. The gear input shaft measures 24 mm, while the gear output shaft is 25 mm in diameter, compatible with Ø25H7 connections.Constructed with stainless steel AISI 316L gear material and a stainless steel hollow output shaft, it offers high resistance to corrosion. The motor interface is 90B14, and the gear size is X42N. Designed for input power rating of 115 BCD and output rating of 90 BCD.
Specifications
Product description
Downloads
€2,031.00
In stock
Expected shipment:
Loading...

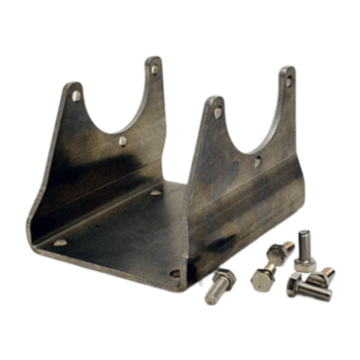

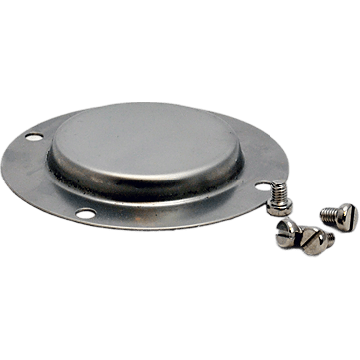

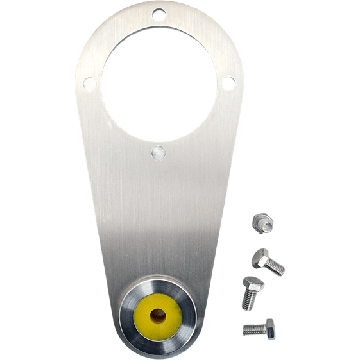

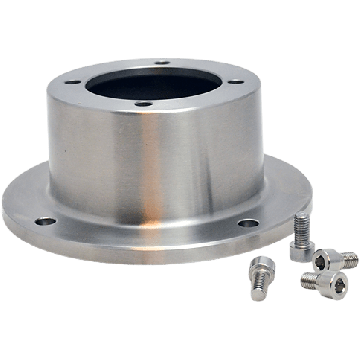

Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
15,27:1
BCD input
115
BCD output
90
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
25
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X42N
Output speed at 1400 RPM
92
Max output torque (Nm)
130
Max kW input at 1400 rpm
1.3
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a trusted manufacturer specialized in high-performance stainless steel gear solutions developed for demanding industrial applications. With a strong focus on hygiene, durability, and efficiency, Clean-Geartech provides gear units tailored for the food, pharmaceutical, chemical, and marine industries. Their products are engineered for longevity and performance under challenging operating conditions while complying with industry standards for safety and cleanliness.
The Clean-Geartech X42N bevel gear unit is manufactured entirely in high-grade stainless steel AISI 316L, ensuring corrosion resistance and extended service life in aggressive or hygienic environments.
Designed with a Ø25H7 stainless steel hollow output shaft, providing a strong and precise interface ideal for direct flange mounting and backlash-sensitive applications.
The input flange conforms to standard size 90B14, enabling easy coupling with standard IEC electric motors, improving modularity and motor interchangeability.
Equipped with a 15.27:1 reduction ratio across two gear stages, this unit delivers optimal torque conversion and smooth operation for medium-speed industrial systems.
Highly efficient with a mechanical efficiency of 96%, the gearbox minimizes energy loss and helps optimize operational costs over time.
The bevel gear configuration allows for 90° torque transmission, making it suitable for compact machinery layouts and space-saving installations.
Ideal for use in food processing, cleanroom environments, chemical dosing systems, offshore installations, and other washdown applications where hygiene and resistance to chemicals are critical.
The input shaft has a diameter of Ø24 mm, compatible with various drive systems and couplings used in precision motion and automation.
Compact X42N gear size fits seamlessly into system designs with space limitations without compromising on strength or durability.
Fully enclosed housing with smooth, crevice-free surfaces prevents dirt and bacterial accumulation—optimal for CIP (Clean-In-Place) processes.The Clean-Geartech X42N stands out as the stainless steel bevel gear solution for industries requiring uncompromising reliability, cleanliness, and performance efficiency.
The Clean-Geartech X42N bevel gear unit is manufactured entirely in high-grade stainless steel AISI 316L, ensuring corrosion resistance and extended service life in aggressive or hygienic environments.
Designed with a Ø25H7 stainless steel hollow output shaft, providing a strong and precise interface ideal for direct flange mounting and backlash-sensitive applications.
The input flange conforms to standard size 90B14, enabling easy coupling with standard IEC electric motors, improving modularity and motor interchangeability.
Equipped with a 15.27:1 reduction ratio across two gear stages, this unit delivers optimal torque conversion and smooth operation for medium-speed industrial systems.
Highly efficient with a mechanical efficiency of 96%, the gearbox minimizes energy loss and helps optimize operational costs over time.
The bevel gear configuration allows for 90° torque transmission, making it suitable for compact machinery layouts and space-saving installations.
Ideal for use in food processing, cleanroom environments, chemical dosing systems, offshore installations, and other washdown applications where hygiene and resistance to chemicals are critical.
The input shaft has a diameter of Ø24 mm, compatible with various drive systems and couplings used in precision motion and automation.
Compact X42N gear size fits seamlessly into system designs with space limitations without compromising on strength or durability.
Fully enclosed housing with smooth, crevice-free surfaces prevents dirt and bacterial accumulation—optimal for CIP (Clean-In-Place) processes.The Clean-Geartech X42N stands out as the stainless steel bevel gear solution for industries requiring uncompromising reliability, cleanliness, and performance efficiency.
