Clean-Geartech X42N, helical bevel gear Ø25H7 hollow shaft, 11,2:1, input 90B14, B3, stainless steel
HV82PX42NI02-CFBN-TB3-E-OFIt features a gear size of X42N with 2 gear stages and a gear ratio of 11.2:1, ensuring consistent torque transmission. The unit offers 96% efficiency and includes a gear input shaft of 24 mm and a gear output shaft of 25 mm.The input flange is compatible with 90B14 motors, ensuring easy integration. Built with stainless steel AISI 316L gears and a Ø25H7 hollow output shaft in stainless steel, this solution supports hygiene-critical and corrosion-prone environments.BCD dimensions: Input 115 mm, Output 90 mm.
Specifications
Product description
Downloads
€2,031.00
In stock
Expected shipment:
Loading...

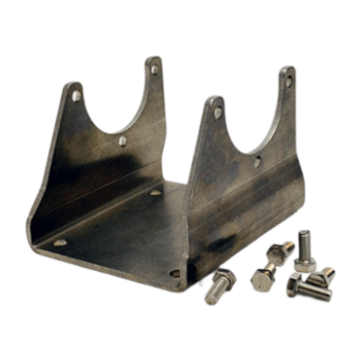

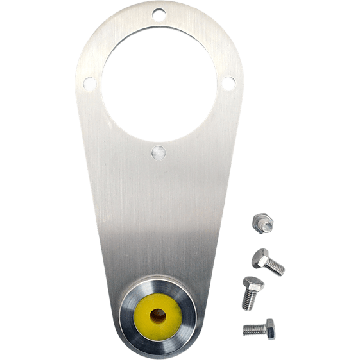

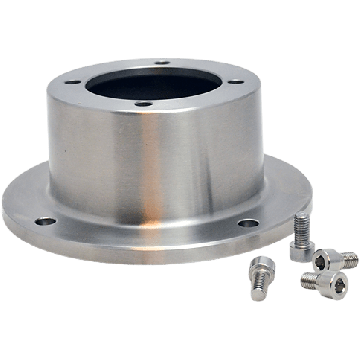

Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
11,2:1
BCD input
115
BCD output
90
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
25
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X42N
Output speed at 1400 RPM
125
Max output torque (Nm)
130
Max kW input at 1400 rpm
1.8
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a leading manufacturer of high-performance, hygienic gear solutions for demanding industrial applications. Specializing in stainless steel gearboxes designed for optimal reliability, easy maintenance, and resistance to corrosion, Clean-Geartech products are widely used in the food and beverage industry, pharmaceuticals, chemicals, and other sectors with stringent hygiene or environmental requirements.The Clean-Geartech X42N is a compact and robust 2-stage bevel gear unit, optimized for high-efficiency torque transmission and long-term durability. Built entirely in stainless steel AISI 316L, this gearbox guarantees exceptional corrosion resistance and is ideal for applications in hygienic or aggressive environments.
High corrosion resistance due to full stainless steel AISI 316L construction, including housing and hollow shaft – ideal for washdown, food, marine, and chemical applications.
Powerful torque transmission with a gear ratio of 11.2:1 – offering precise speed regulation for conveyors, mixers, and packaging machinery.
Highly efficient performance with an energy efficiency rating of 96% – reducing energy losses and operating costs in continuous-duty industrial applications.
Standardized motor interface 90B14 – ensures easy integration with IEC-compatible motors common across automation and processing systems.
Durable Ø25H7 hollow output shaft in stainless steel – enables direct shaft mounting and high resistance to wear in harsh environments.
Compact X42N gear size for space-limited installations – supports integration in OEM equipment as well as retrofits in existing production lines.
24 mm input shaft with solid coupling – supports stable torque transfer and upstream integration with precision motors or motion control gear.
Two gear stages with precision-machined bevel gears – providing excellent load capacity, quiet operation, and long service life in demanding applications.
Designed for cleanroom and hygienic environments – suitable for CIP/SIP processes, reducing contamination risks and enabling compliance with food safety standards.The Clean-Geartech X42N provides engineers and system integrators with a reliable, energy-efficient, and hygienically optimized solution for line automation, conveying systems, filling, dosing, and other demanding industrial tasks.
High corrosion resistance due to full stainless steel AISI 316L construction, including housing and hollow shaft – ideal for washdown, food, marine, and chemical applications.
Powerful torque transmission with a gear ratio of 11.2:1 – offering precise speed regulation for conveyors, mixers, and packaging machinery.
Highly efficient performance with an energy efficiency rating of 96% – reducing energy losses and operating costs in continuous-duty industrial applications.
Standardized motor interface 90B14 – ensures easy integration with IEC-compatible motors common across automation and processing systems.
Durable Ø25H7 hollow output shaft in stainless steel – enables direct shaft mounting and high resistance to wear in harsh environments.
Compact X42N gear size for space-limited installations – supports integration in OEM equipment as well as retrofits in existing production lines.
24 mm input shaft with solid coupling – supports stable torque transfer and upstream integration with precision motors or motion control gear.
Two gear stages with precision-machined bevel gears – providing excellent load capacity, quiet operation, and long service life in demanding applications.
Designed for cleanroom and hygienic environments – suitable for CIP/SIP processes, reducing contamination risks and enabling compliance with food safety standards.The Clean-Geartech X42N provides engineers and system integrators with a reliable, energy-efficient, and hygienically optimized solution for line automation, conveying systems, filling, dosing, and other demanding industrial tasks.
