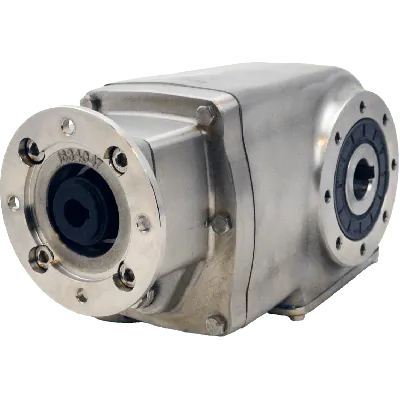

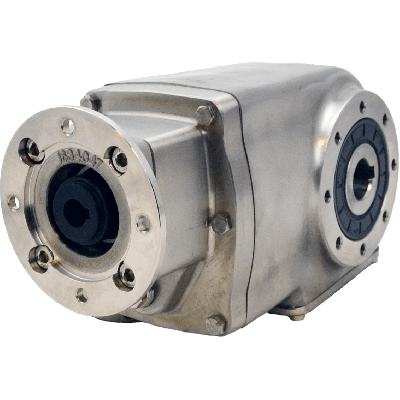

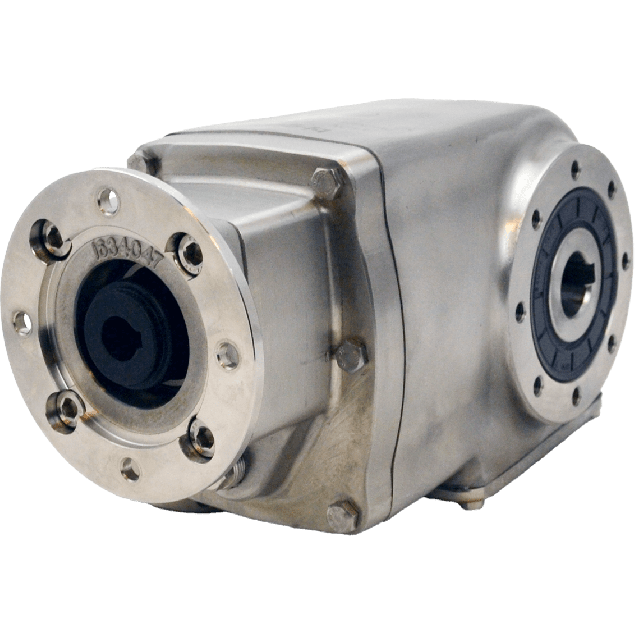

Clean-Geartech X42N, helical bevel gear Ø25H7 hollow shaft, 11,2:1, input 80B14, V5, stainless steel
HV82PX42NI02-CFBN-RV5-D-OFIt features a gear ratio of 11.2:1 and two gear stages for efficient torque transmission. The unit offers a 96% efficiency and supports a BCD input of 100 with a BCD output of 90.The input shaft diameter is 19 mm and the output shaft is a Ø25H7 hollow shaft, allowing for precise coupling. The gear motor interface is 80B14, and the gear size is X42N.All internal gears are made from stainless steel AISI 316L, providing high resistance to aggressive environments. Designed for reliability in demanding industrial applications.
Specifications
Product description
Downloads
€2,061.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
Supplier product ID
PX42NI02-CFBN-RV5-D
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
11,2:1
BCD input
100
BCD output
90
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X42N
Output speed at 1400 RPM
125
Max output torque (Nm)
130
Max kW input at 1400 rpm
1.8
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech X42N Bevel Gearbox with Ø25H7 Hollow Shaft, 11.2:1 Ratio, 80B14 Input Flange, Stainless SteelClean-Geartech is a trusted manufacturer specializing in advanced hygienic gear solutions tailored for demanding industrial and engineering applications. Known for producing gearboxes using premium materials and cutting-edge technology, the company's products are built for maximum durability, efficiency, and performance—especially in environments where corrosion resistance and cleanliness are paramount.Key Features, Applications & Benefits:
• Constructed entirely from stainless steel AISI 316L, ensuring exceptional resistance to corrosion — ideal for hygienic industries such as food processing, chemical processing, and pharmaceuticals.
• Equipped with a Ø25H7 stainless steel hollow output shaft, supporting precise torque transmission and facilitating easy integration into high-precision drive systems.
• Compact and durable housing (gear size X42N) minimizes installation footprint while withstanding high mechanical loads in constrained industrial settings.
• 11.2:1 gear ratio optimizes output torque and speed control, making it suitable for applications like conveyor systems, mixers, automated processing lines, and packaging units.
• Dual-stage gear configuration offers balanced torque transmission and high load capacities — ideal for continuous duty operations under variable loads.
• High efficiency rating of 96% reduces energy consumption and operating costs, ensuring sustainability and cost-effectiveness in long-term use.
• Input flange compatible with IEC 80B14 motors allows for standardized connections with a wide range of motor systems, increasing system design flexibility.
• Ø19 mm input shaft ensures reliable connection with motor drive, minimizing vibration and wear — suitable for high-stability industrial operations.
• Stainless steel properties are crucial in washdown environments, making the unit excellent for use in sterilizable and cleanroom facilities. The Clean-Geartech X42N represents a fusion of hygienic design, robust material usage, and precision engineering — perfectly aligned with the expectations of technical specialists and engineers in modern industrial environments.
• Constructed entirely from stainless steel AISI 316L, ensuring exceptional resistance to corrosion — ideal for hygienic industries such as food processing, chemical processing, and pharmaceuticals.
• Equipped with a Ø25H7 stainless steel hollow output shaft, supporting precise torque transmission and facilitating easy integration into high-precision drive systems.
• Compact and durable housing (gear size X42N) minimizes installation footprint while withstanding high mechanical loads in constrained industrial settings.
• 11.2:1 gear ratio optimizes output torque and speed control, making it suitable for applications like conveyor systems, mixers, automated processing lines, and packaging units.
• Dual-stage gear configuration offers balanced torque transmission and high load capacities — ideal for continuous duty operations under variable loads.
• High efficiency rating of 96% reduces energy consumption and operating costs, ensuring sustainability and cost-effectiveness in long-term use.
• Input flange compatible with IEC 80B14 motors allows for standardized connections with a wide range of motor systems, increasing system design flexibility.
• Ø19 mm input shaft ensures reliable connection with motor drive, minimizing vibration and wear — suitable for high-stability industrial operations.
• Stainless steel properties are crucial in washdown environments, making the unit excellent for use in sterilizable and cleanroom facilities. The Clean-Geartech X42N represents a fusion of hygienic design, robust material usage, and precision engineering — perfectly aligned with the expectations of technical specialists and engineers in modern industrial environments.
