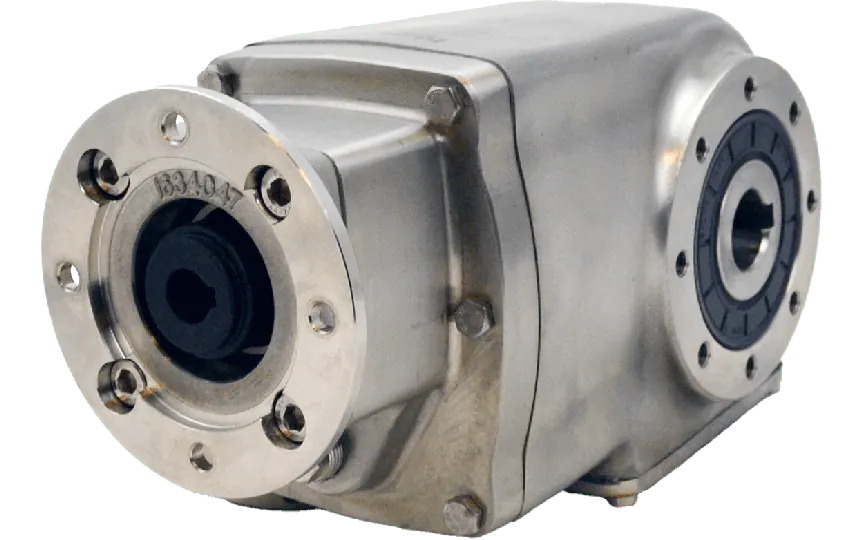

Clean-Geartech X42N, helical bevel gear Ø25H7 hollow shaft, 11,2:1, input 71B14, V5, stainless steel
HV82PX42NI02-CFBN-QV5-C-OFThis model features a gear ratio of 11.2:1 and a two-stage configuration, delivering an efficiency of 96%. It is equipped with a Ø14 mm input shaft and a Ø25 mm H7 hollow output shaft. The gear housing corresponds to size X42N and interfaces with motors via a 71B14 flange.All gear components are manufactured from AISI 316L stainless steel, including the stainless steel hollow output shaft, providing resistance against corrosion and chemical exposure. BCD input and output are 85 mm and 90 mm respectively.
Specifications
Product description
Downloads
€2,055.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
Supplier product ID
PX42NI02-CFBN-QV5-C
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
11,2:1
BCD input
85
BCD output
90
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
X42N
Output speed at 1400 RPM
125
Max output torque (Nm)
130
Max kW input at 1400 rpm
1.8
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a renowned European manufacturer specializing in premium stainless steel gear solutions tailored for demanding industrial applications. Their products are designed to meet the stringent hygiene, corrosion resistance, and durability standards required in sectors such as food processing, pharmaceuticals, marine, and chemical industries. Known for precision engineering and high reliability, Clean-Geartech offers optimal performance even under extreme operating conditions.Application-Oriented Features and Advantages:
Stainless Steel AISI 316L Gear Housing – Offers exceptional corrosion resistance, ideal for wet, caustic, or hygiene-critical environments like food & beverage, marine, and chemical industries.
Ø25H7 Stainless Steel Hollow Output Shaft – Enables efficient direct torque transfer while allowing for easy integration in existing drive shafts. Particularly suitable for washdown areas and applications requiring robust mechanical connections.
Gear Input Interface 71B14 – Standardized IEC motor flange ensures compatibility with a wide range of motor types, simplifying system integration and maintenance in automated systems.
High Gear Efficiency of 96% – Reduces energy loss, making the gear unit suitable for applications requiring continuous operation and energy optimization such as packaging lines and processing machinery.
Two-Stage Gearbox with 11.2:1 Ratio – Provides high torque transmission with compact dimensions, addressing the needs of automation engineers focused on space-saving drive solutions in confined installations.
Input Shaft Ø14 mm – Standard-size ensures easy coupling with common motor shafts, minimizing mechanical modifications during upgrades or system retrofitting.
Gear Size X42N – Medium-sized gear ensures a balance between power and compactness, suitable for a wide range of medium-duty industrial applications.
Durable Mechanical Design – High reliability under heavy or continuous loads makes it suitable for conveying, bottling, or dosing systems in demanding sanitary-grade operations.
Stainless Steel AISI 316L Gear Housing – Offers exceptional corrosion resistance, ideal for wet, caustic, or hygiene-critical environments like food & beverage, marine, and chemical industries.
Ø25H7 Stainless Steel Hollow Output Shaft – Enables efficient direct torque transfer while allowing for easy integration in existing drive shafts. Particularly suitable for washdown areas and applications requiring robust mechanical connections.
Gear Input Interface 71B14 – Standardized IEC motor flange ensures compatibility with a wide range of motor types, simplifying system integration and maintenance in automated systems.
High Gear Efficiency of 96% – Reduces energy loss, making the gear unit suitable for applications requiring continuous operation and energy optimization such as packaging lines and processing machinery.
Two-Stage Gearbox with 11.2:1 Ratio – Provides high torque transmission with compact dimensions, addressing the needs of automation engineers focused on space-saving drive solutions in confined installations.
Input Shaft Ø14 mm – Standard-size ensures easy coupling with common motor shafts, minimizing mechanical modifications during upgrades or system retrofitting.
Gear Size X42N – Medium-sized gear ensures a balance between power and compactness, suitable for a wide range of medium-duty industrial applications.
Durable Mechanical Design – High reliability under heavy or continuous loads makes it suitable for conveying, bottling, or dosing systems in demanding sanitary-grade operations.
