Description

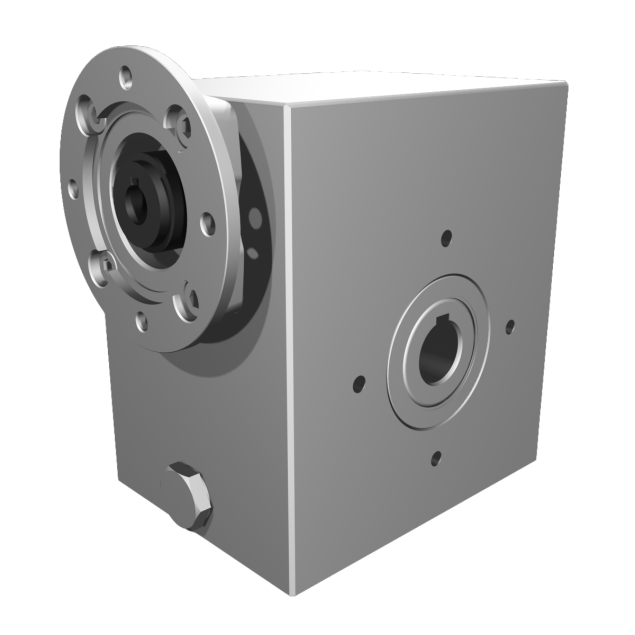

Brand/Manufacturer: Clean-Geartech is a globally recognized manufacturer specializing in advanced, hygienic gearbox solutions for applications in demanding industrial environments. Renowned for innovation, durability, and premium stainless steel construction, Clean-Geartech products are trusted by engineers worldwide.Product Key Features and Application Notes:
Robust housing and internal gearing manufactured from AISI 316L stainless steel ensure exceptional corrosion resistance and suitability for aggressive environments (food, pharma, marine, and chemical industries).
Efficient worm-gear design with a 94:1 ratio delivers high torque output and precise speed reduction for use in conveyor systems, mixers, packaging, and materials handling applications.
Hollow stainless steel output shaft Ø25 mm provides seamless connection to driven loads requiring superior hygiene and corrosion protection.
14 mm input shaft and 71B14 motor interface enable easy and versatile motor integration—ideal for custom drive systems and retrofitting projects.
High ingress protection and smooth surfaces simplify cleaning and aid compliance with strict hygienic and washdown requirements.
52% efficiency offers optimized power transmission for demanding, continuous processes, reducing energy losses.
Compact I63 size allows installation in space-restricted layouts without sacrificing performance or reliability.
Designed for universal mounting (B3) and compatibility with OF320 motors or similar, maximizing application flexibility.
Product SKU: VFI I63 ensures streamlined logistics and traceability for OEMs and system integrators.
Robust housing and internal gearing manufactured from AISI 316L stainless steel ensure exceptional corrosion resistance and suitability for aggressive environments (food, pharma, marine, and chemical industries).
Efficient worm-gear design with a 94:1 ratio delivers high torque output and precise speed reduction for use in conveyor systems, mixers, packaging, and materials handling applications.
Hollow stainless steel output shaft Ø25 mm provides seamless connection to driven loads requiring superior hygiene and corrosion protection.
14 mm input shaft and 71B14 motor interface enable easy and versatile motor integration—ideal for custom drive systems and retrofitting projects.
High ingress protection and smooth surfaces simplify cleaning and aid compliance with strict hygienic and washdown requirements.
52% efficiency offers optimized power transmission for demanding, continuous processes, reducing energy losses.
Compact I63 size allows installation in space-restricted layouts without sacrificing performance or reliability.
Designed for universal mounting (B3) and compatibility with OF320 motors or similar, maximizing application flexibility.
Product SKU: VFI I63 ensures streamlined logistics and traceability for OEMs and system integrators.
Specifications
IP classification
IP66
Material
Stainless steel AISI 316L
Ratio
94:1
BCD input
85
BCD output
92
Efficiency (%)
52
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
I63
Output speed at 1400 RPM
14.9
Max output torque (Nm)
119
Max kW input at 1400 rpm
0.36
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Foreign trade
HS-Code
84834025
ERP net weight (Kg)
14.60
Country of origin
ITA
