Description

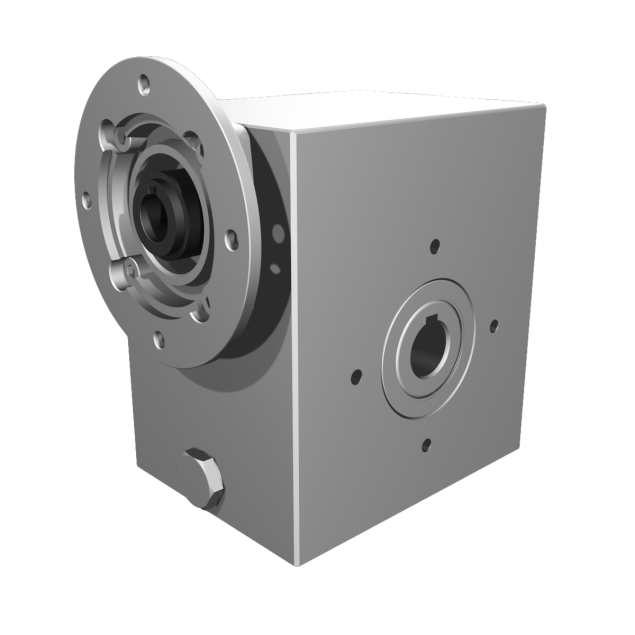

Clean-Geartech is a renowned manufacturer specializing in high-performance gearbox solutions tailored for demanding industrial environments. With a strong commitment to reliability and corrosion resistance, Clean-Geartech products are trusted by technical professionals across multiple industries for their robust construction and innovative engineering.Product Name: Clean-Geartech VFI I63 Worm Gearbox Ø25, 80:1, Input 80B14, B3, OF320, Stainless SteelKey features, benefits, and applications:
Constructed in AISI 316L stainless steel, offering superior corrosion resistance in chemically aggressive or hygienic environments.
Optimized for food, pharmaceutical, chemical, and marine applications where sanitation and resistance to corrosion are critical.
Gear ratio of 80:1 enables significant torque multiplication—ideal for applications requiring precise speed reduction and high output torque.
25 mm stainless steel output shaft supports high loads and ensures long operational life even under demanding cycles.
Input shaft diameter of 19 mm allows easy integration with standard industrial motors.
Compatible motor interface (80B14) simplifies installation into existing automation systems used by engineers and OEMs.
High ingress protection and sealed surfaces allow for intensive washdown—supporting deployment in cleanrooms or outdoor environments.
Efficiency rating of 57% provides reliable performance in applications where energy optimization is important.
Gearbox size I63 and output configuration (B3, OF320) increase integration flexibility in custom machinery setups.
Ideal for conveyors, mixers, filling equipment, agitation systems, and other motion solutions requiring hygienic and robust gear units.
Constructed in AISI 316L stainless steel, offering superior corrosion resistance in chemically aggressive or hygienic environments.
Optimized for food, pharmaceutical, chemical, and marine applications where sanitation and resistance to corrosion are critical.
Gear ratio of 80:1 enables significant torque multiplication—ideal for applications requiring precise speed reduction and high output torque.
25 mm stainless steel output shaft supports high loads and ensures long operational life even under demanding cycles.
Input shaft diameter of 19 mm allows easy integration with standard industrial motors.
Compatible motor interface (80B14) simplifies installation into existing automation systems used by engineers and OEMs.
High ingress protection and sealed surfaces allow for intensive washdown—supporting deployment in cleanrooms or outdoor environments.
Efficiency rating of 57% provides reliable performance in applications where energy optimization is important.
Gearbox size I63 and output configuration (B3, OF320) increase integration flexibility in custom machinery setups.
Ideal for conveyors, mixers, filling equipment, agitation systems, and other motion solutions requiring hygienic and robust gear units.
Specifications
IP classification
IP66
Material
Stainless steel AISI 316L
Ratio
80:1
BCD input
100
BCD output
92
Efficiency (%)
57
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
I63
Output speed at 1400 RPM
17.5
Max output torque (Nm)
119
Max kW input at 1400 rpm
0.38
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Foreign trade
HS-Code
84834025
ERP net weight (Kg)
14.60
Country of origin
ITA
