Description

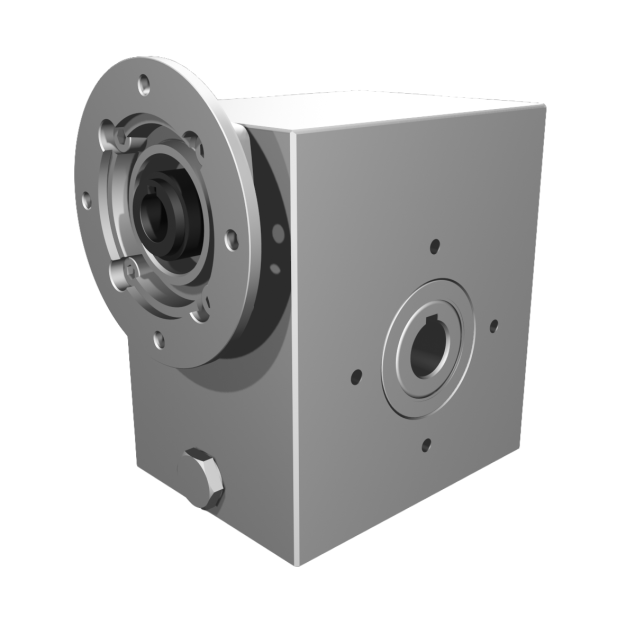

Clean-Geartech is renowned for developing robust and highly hygienic transmission solutions for demanding industrial environments. Their products, manufactured in premium-grade stainless steel, ensure maximum reliability, corrosion resistance, and compliance with strict industry standards—particularly valued in the food processing, pharmaceutical, and chemical sectors.**Product Name:** Clean-Geartech VFI I63, Worm Gear Ø25, 60:1, Input 80B14, B3, OF320, Stainless Steel**Key Features, Benefits, and Applications:**
Constructed from AISI 316L stainless steel housing for superior corrosion resistance, ideal for use in aggressive environments, such as food, beverage, and chemical processing
Worm gear with 60:1 ratio provides high torque transfer and accurate speed reduction, perfectly suited for conveyor systems, mixers, and automated machinery
Stainless steel (SS) hollow output shaft (Ø25 mm) ensures exceptional durability and hygienic operation, especially where washdown and sanitary requirements are critical
Gear input shaft diameter of 19 mm enables compatibility with a wide range of motors and custom drive assemblies, enhancing flexibility in integration
Supports 80B14 flange motor interface, facilitating quick motor mounting and easy maintenance for efficient system setup and downtime reduction
Overall gear size I63 is compact, making the unit ideal for installations with limited space or requiring easy retrofitting in existing production lines
Energy efficiency rated at 62% delivers a balance between performance and power consumption, helping reduce operational costs
Designed for engineering-intensive sectors such as pharmaceuticals, food processing, packaging, and water treatment, where reliability, hygiene, and strength are critical
Constructed from AISI 316L stainless steel housing for superior corrosion resistance, ideal for use in aggressive environments, such as food, beverage, and chemical processing
Worm gear with 60:1 ratio provides high torque transfer and accurate speed reduction, perfectly suited for conveyor systems, mixers, and automated machinery
Stainless steel (SS) hollow output shaft (Ø25 mm) ensures exceptional durability and hygienic operation, especially where washdown and sanitary requirements are critical
Gear input shaft diameter of 19 mm enables compatibility with a wide range of motors and custom drive assemblies, enhancing flexibility in integration
Supports 80B14 flange motor interface, facilitating quick motor mounting and easy maintenance for efficient system setup and downtime reduction
Overall gear size I63 is compact, making the unit ideal for installations with limited space or requiring easy retrofitting in existing production lines
Energy efficiency rated at 62% delivers a balance between performance and power consumption, helping reduce operational costs
Designed for engineering-intensive sectors such as pharmaceuticals, food processing, packaging, and water treatment, where reliability, hygiene, and strength are critical
Specifications
IP classification
IP66
Material
Stainless steel AISI 316L
Ratio
60:1
BCD input
100
BCD output
92
Efficiency (%)
62
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
I63
Output speed at 1400 RPM
23
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.51
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Foreign trade
HS-Code
84834025
ERP net weight (Kg)
14.60
Country of origin
ITA
