Description

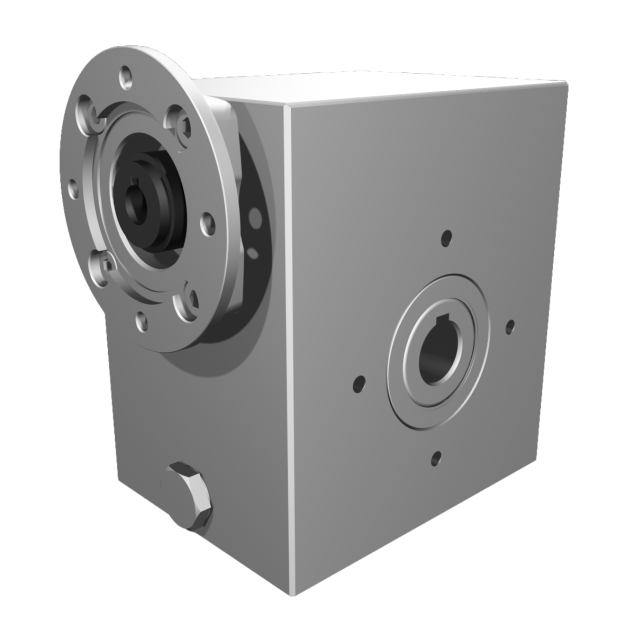

Clean-Geartech is a trusted manufacturer renowned for delivering robust, hygienic, and corrosion-resistant gear solutions tailored for demanding industrial environments. With superior engineering and use of high-grade materials like AISI 316L stainless steel, Clean-Geartech products are suited for both process reliability and long service life under rigorous conditions. **Product: Clean-Geartech VFI I63, Worm Gear Ø25, 36:1, Input 71B14, B3, OF320, Stainless Steel**
High corrosion resistance due to full AISI 316L stainless steel construction, ensuring suitability for food & beverage, chemical, and pharmaceutical industries, as well as other washdown environments.
Hollow output shaft (Ø25 mm) in stainless steel enables direct and hygienic integration with drive shafts, simplifying installation and supporting applications where contamination risk must be minimized.
Worm gear set offers a reduction ratio of 36:1, which provides high torque multiplication and precise speed control—ideal for conveyors, agitators, and lifting mechanisms.
Compatible with IEC 71B14 input flange, providing seamless motor coupling and flexibility in selecting and replacing electric motors according to application requirements.
Compact gear size (I63) and OF320 mounting style support diverse installation possibilities, especially in confined spaces or retrofitting scenarios.
Efficiency of 68% allows for reliable power transmission while maintaining manageable thermal load—well-suited for intermittent and continuous duty operations.
14 mm input shaft diameter accommodates standard transmission couplings, broadening compatibility with upstream drive systems and custom applications.
Gear designed for intensive industrial use, including conveyor lines, packaging, materials handling, and automation systems demanding strict hygiene and longevity.
Clean-Geartech’s commitment to innovation and reliability reduces maintenance downtimes and total cost of ownership, enhancing operational uptime for technical specialists and engineers.
High corrosion resistance due to full AISI 316L stainless steel construction, ensuring suitability for food & beverage, chemical, and pharmaceutical industries, as well as other washdown environments.
Hollow output shaft (Ø25 mm) in stainless steel enables direct and hygienic integration with drive shafts, simplifying installation and supporting applications where contamination risk must be minimized.
Worm gear set offers a reduction ratio of 36:1, which provides high torque multiplication and precise speed control—ideal for conveyors, agitators, and lifting mechanisms.
Compatible with IEC 71B14 input flange, providing seamless motor coupling and flexibility in selecting and replacing electric motors according to application requirements.
Compact gear size (I63) and OF320 mounting style support diverse installation possibilities, especially in confined spaces or retrofitting scenarios.
Efficiency of 68% allows for reliable power transmission while maintaining manageable thermal load—well-suited for intermittent and continuous duty operations.
14 mm input shaft diameter accommodates standard transmission couplings, broadening compatibility with upstream drive systems and custom applications.
Gear designed for intensive industrial use, including conveyor lines, packaging, materials handling, and automation systems demanding strict hygiene and longevity.
Clean-Geartech’s commitment to innovation and reliability reduces maintenance downtimes and total cost of ownership, enhancing operational uptime for technical specialists and engineers.
Specifications
IP classification
IP66
Material
Stainless steel AISI 316L
Ratio
36:1
BCD input
85
BCD output
92
Efficiency (%)
68
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
I63
Output speed at 1400 RPM
39
Max output torque (Nm)
147
Max kW input at 1400 rpm
0.88
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Foreign trade
HS-Code
84834025
ERP net weight (Kg)
14.60
Country of origin
ITA
