Description
Clean-Geartech is a leading manufacturer renowned for high-performance, precision worm gearboxes designed specifically for demanding industrial and process environments, with a focus on hygiene, durability, and reliability. The brand specializes in stainless steel solutions that meet the stringent requirements of food processing, pharmaceuticals, chemical, and offshore industries.

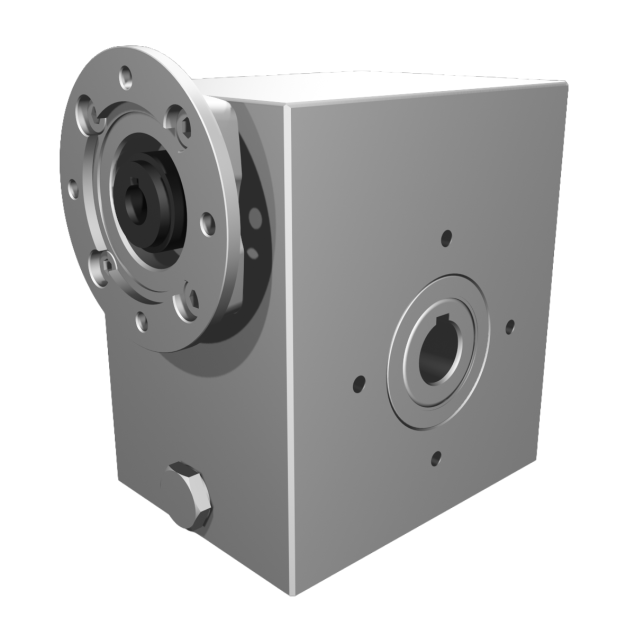

**Product Name:** Clean-Geartech VFI I63 Stainless Steel Worm Gearbox Ø25, 24:1 Ratio, Input 71B14, B3, OF320, Stainless Steel
**Worm gearbox constructed in high-grade stainless steel AISI 316L for maximum corrosion resistance, ideal for use in harsh environments such as food, chemical, and marine industries.**
**Output shaft diameter of 25 mm (stainless steel) supports secure and robust transmission to large industrial loads and conveyor systems.**
**Input shaft diameter of 14 mm provides compatibility with various standard drive motors, enhancing flexibility in system integration.**
**True hollow-shaft design allows for simple mounting directly onto driven shafts, reducing installation time and improving maintenance accessibility.**
**Standardized IEC motor flange interface (71B14) enables easy coupling with most IEC motors for quick and cost-effective system setup.**
**Highly efficient worm gear operation (75% efficiency) ensures optimized energy use and reduced operational costs, vital for continuous-duty applications.**
**Gear ratio of 24:1 delivers precise speed reduction and increased torque, making it suitable for conveyor belts, mixers, and processing machinery.**
**Compact frame size (I63) facilitates installation in space-limited environments without compromising torque transmission.**
**Designed for high cleanliness applications with smooth, crevice-free surfaces that minimize risk of bacterial accumulation and simplify washdown.**
**Ideal for engineering specialists requiring reliable, hygienic, and long-lasting gear solutions for critical industrial processes.**
**Product Name:** Clean-Geartech VFI I63 Stainless Steel Worm Gearbox Ø25, 24:1 Ratio, Input 71B14, B3, OF320, Stainless Steel
**Worm gearbox constructed in high-grade stainless steel AISI 316L for maximum corrosion resistance, ideal for use in harsh environments such as food, chemical, and marine industries.**
**Output shaft diameter of 25 mm (stainless steel) supports secure and robust transmission to large industrial loads and conveyor systems.**
**Input shaft diameter of 14 mm provides compatibility with various standard drive motors, enhancing flexibility in system integration.**
**True hollow-shaft design allows for simple mounting directly onto driven shafts, reducing installation time and improving maintenance accessibility.**
**Standardized IEC motor flange interface (71B14) enables easy coupling with most IEC motors for quick and cost-effective system setup.**
**Highly efficient worm gear operation (75% efficiency) ensures optimized energy use and reduced operational costs, vital for continuous-duty applications.**
**Gear ratio of 24:1 delivers precise speed reduction and increased torque, making it suitable for conveyor belts, mixers, and processing machinery.**
**Compact frame size (I63) facilitates installation in space-limited environments without compromising torque transmission.**
**Designed for high cleanliness applications with smooth, crevice-free surfaces that minimize risk of bacterial accumulation and simplify washdown.**
**Ideal for engineering specialists requiring reliable, hygienic, and long-lasting gear solutions for critical industrial processes.**
Specifications
IP classification
IP66
Material
Stainless steel AISI 316L
Ratio
24:1
BCD input
85
BCD output
92
Efficiency (%)
75
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
I63
Output speed at 1400 RPM
58
Max output torque (Nm)
142
Max kW input at 1400 rpm
1.2
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Foreign trade
HS-Code
84834025
ERP net weight (Kg)
14.60
Country of origin
ITA
