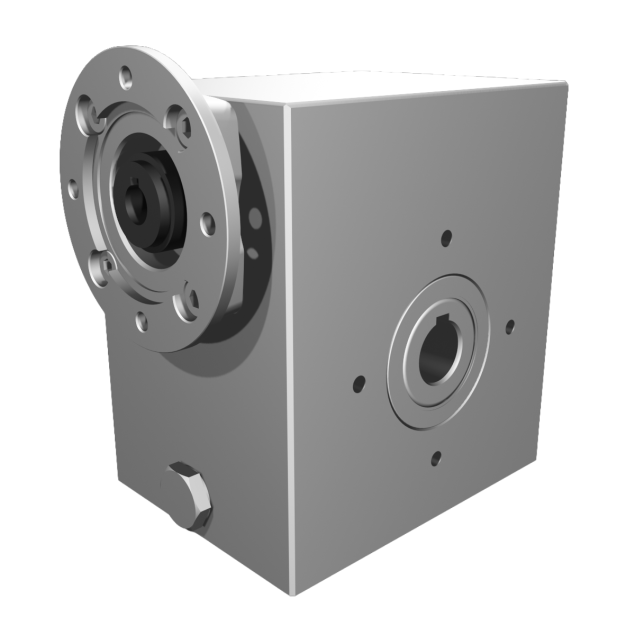

Clean-Geartech VFI I63, worm gear Ø25, 15:1, input 71B14, B3, OF320, stainless steel

HV82PI63UNIN030MFINN-QB3-C-OF

The Clean-Geartech VFI I63, worm gearbox Ø25, 15:1, input 71B14, B3, OF320, stainless steel is engineered for demanding industrial environments. Key attributes include a BCD input of 85 mm, BCD output of 92 mm, efficiency of 79%, input shaft diameter of 14 mm, and output shaft diameter of 25 mm. The gear material is stainless steel AISI 316L, ensuring resistance to corrosion. The gear ratio is 15:1, with a gear motor interface of 71B14. The gear size is I63. This combination provides a reliable gearbox solution for technical specialists requiring robust and durable components for their machinery.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Expected shipment:

Estimated Shipping:

More Information

IP classification

IP66

Country of origin

ITA

HS-Code

84834025.000000

ERP net weight (Kg)

14.600000

Material

Stainless steel AISI 316L

Ratio

15:1

BCD input

BCD output

Efficiency (%)

Gear output shaft (mm)

Gear input shaft (mm)

Gear motor interface

71B14

Gear size

I63

Output speed at 1400 RPM

Max output torque (Nm)

138

Max kW input at 1400 rpm

1.7

Mounting position

Oil

Mobil SHC Cibus 320 NSF H1

Producer

Clean-Geartech

Description

**Brand Overview:
**Clean-Geartech is recognized for delivering premium stainless steel gear solutions tailored for demanding industrial applications, emphasizing high hygiene standards, reliability, and process efficiency in harsh or regulated environments.
**Key Features and Benefits:**
Constructed from AISI 316L stainless steel, ensuring exceptional corrosion resistance and suitability for aggressive environments or hygiene-sensitive sectors such as food processing, pharmaceutical, or chemical industries.

Worm gear configuration (ratio 15:1) provides high torque transmission with effective speed reduction, perfect for precise motion control in automation, conveyor systems, and material handling.

Output shaft diameter 25 mm (stainless steel) offers easy integration with standard couplings and provides significant durability and strength in high-load cycles.

Input shaft diameter 14 mm supports direct connection to motors with IEC 71B14 flanges, optimizing retrofit flexibility and simplifying assembly for engineering teams.

Gear size I63 enables compact installation where space is limited, while still delivering robust performance, ideal for confined industrial machinery layouts.

Gear motor interface 71B14 allows seamless fit with a wide range of industrial motors, facilitating modular system design and maintenance efficiency.

Efficiency of 79% ensures low energy losses and optimized operational costs, supporting sustainable plant operation and energy-saving initiatives.

All external surfaces are fully stainless steel, providing maximum protection against washdown, chemicals, and mechanical stress, increasing product lifespan and reducing maintenance intervals.
**Applications:**
Designed for conveyor systems, packaging machinery, mixers, pumps, and robotic solutions, especially where resistance to corrosion and sanitation is paramount.

Ideal for industries including food & beverage, pharmaceuticals, bottling, chemical processing, and marine engineering environments requiring uncompromising reliability and hygiene.
