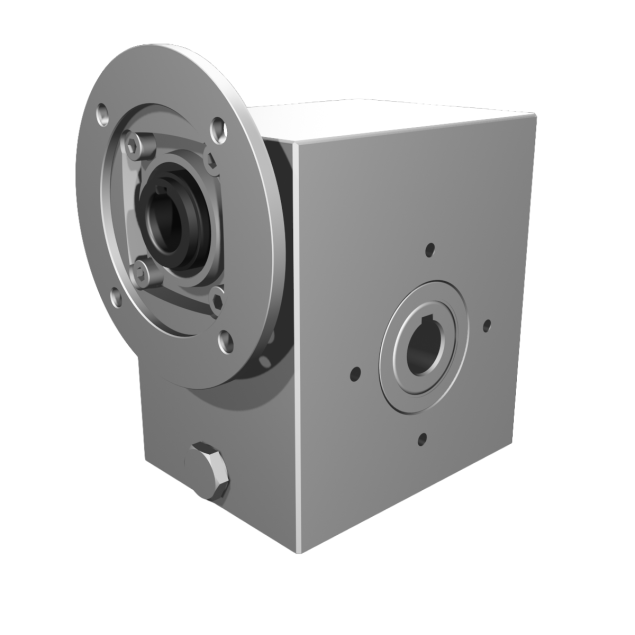

Clean-Geartech VFI I63, worm gear Ø25, 10:1, input 90B14, B3, OF320, stainless steel
HV82PI63UNIN020MFINN-TB3-E-OFThe Clean-Geartech VFI I63, worm gear Ø25, 10:1, input 90B14, B3, OF320, stainless steel is designed for demanding industrial environments. This unit features a gear material: stainless steel AISI 316L, a gear input shaft diameter: 24 mm, and a gear output shaft diameter: 25 mm. The input interface: 90B14 allows for standardized motor mounting. With a transmission ratio: 10:1 and efficiency: 81%, it supports reliable torque transfer. The gear size: I63 offers compatibility for various applications. BCD input: 115 mm; BCD output: 92 mm. All critical components are engineered for durability and corrosion resistance.
Specifications
Product description
Downloads
€1,550.00
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
14.600000
Material
Stainless steel AISI 316L
Ratio
10:1
BCD input
115
BCD output
92
Efficiency (%)
81
Gear output shaft (mm)
25
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
I63
Output speed at 1400 RPM
140
Max output torque (Nm)
134
Max kW input at 1400 rpm
2.4
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
**Product: Clean-Geartech VFI I63, Worm Gear Ø25, 10:1, Input 90B14, B3, OF320, Stainless Steel**
**Key Features, Benefits, and Applications:**
• Constructed entirely from AISI 316L stainless steel, providing outstanding corrosion resistance and superior durability for food, pharmaceutical, and chemical industries.• SS hollow output shaft (Ø25 mm) ensures high integrity and easy cleaning, crucial in environments with stringent hygiene demands.• High efficiency (81%) minimizes energy loss, making it ideal for continuous high-duty cycles and reducing operational costs in automated production lines.• Input shaft (Ø24 mm) and standardized 90B14 flange interface allow for seamless integration with IEC B14 electric motors and easy retrofitting into existing systems.• 10:1 gear ratio offers precise speed reduction and torque increase, perfect for conveyors, mixers, and dosing applications requiring accurate motion control.• Compact I63 size and robust OF320 configuration are engineered for tight spaces without compromising performance or reliability.• Worm gear mechanism minimizes backlash and ensures smooth, quiet operation, beneficial in sensitive processing areas and noise-restricted zones.• Maintenance-friendly design with smooth, hygienic surfaces reduces downtime and supports CIP/SIP cleaning protocols in regulated industries.• Universal mounting flexibility (B3 foot-mounted) provides versatile installation options across diverse industrial frameworks.• Full stainless steel construction guarantees long-term asset protection, even under frequent washdowns, chemical exposure, or extreme environments.
**Key Features, Benefits, and Applications:**
• Constructed entirely from AISI 316L stainless steel, providing outstanding corrosion resistance and superior durability for food, pharmaceutical, and chemical industries.• SS hollow output shaft (Ø25 mm) ensures high integrity and easy cleaning, crucial in environments with stringent hygiene demands.• High efficiency (81%) minimizes energy loss, making it ideal for continuous high-duty cycles and reducing operational costs in automated production lines.• Input shaft (Ø24 mm) and standardized 90B14 flange interface allow for seamless integration with IEC B14 electric motors and easy retrofitting into existing systems.• 10:1 gear ratio offers precise speed reduction and torque increase, perfect for conveyors, mixers, and dosing applications requiring accurate motion control.• Compact I63 size and robust OF320 configuration are engineered for tight spaces without compromising performance or reliability.• Worm gear mechanism minimizes backlash and ensures smooth, quiet operation, beneficial in sensitive processing areas and noise-restricted zones.• Maintenance-friendly design with smooth, hygienic surfaces reduces downtime and supports CIP/SIP cleaning protocols in regulated industries.• Universal mounting flexibility (B3 foot-mounted) provides versatile installation options across diverse industrial frameworks.• Full stainless steel construction guarantees long-term asset protection, even under frequent washdowns, chemical exposure, or extreme environments.
