Description

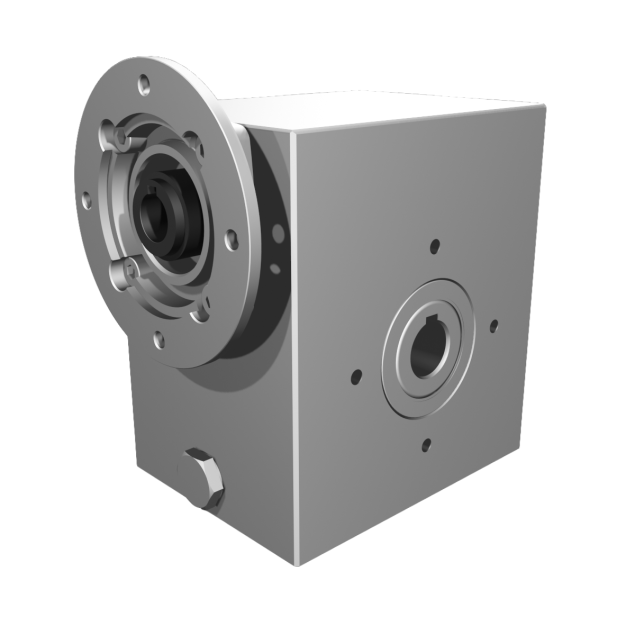

Clean-Geartech is a leading provider of high-quality gearboxes engineered specifically for demanding industrial and engineering applications. Renowned for precision, durability, and hygiene, Clean-Geartech delivers robust solutions with exceptional corrosion resistance, making them ideal for industries with stringent sanitary standards.Product Name: Clean-Geartech VFI I63, Worm Gearbox Ø25, 10:1, Input 80B14, B3, OF320, Stainless SteelKey Features and Application Possibilities:
• Manufactured in robust AISI 316L stainless steel, the gearbox ensures outstanding corrosion resistance, making it ideal for food processing, pharmaceutical, chemical, and marine applications.• 10:1 gear ratio offers precise speed reduction and torque multiplication, supporting applications such as conveyor systems, mixers, and automated production lines.• The 25 mm output shaft, made from stainless steel, assures enhanced mechanical strength and hygiene in washdown environments.• Input shaft diameter of 19 mm fits standard industrial motors and promotes easy integration into existing systems.• Motor mounting interface complies with 80B14 flange, supporting a wide compatibility range with IEC motors.• High efficiency at 81% minimizes energy loss, supporting energy-conscious operations.• Compact I63 gear size enables installation in space-restricted environments, enhancing system flexibility.• Suitable for both horizontal (B3) mounting, offering installation versatility for various industrial layouts.• Clean, crevice-free design simplifies maintenance and reduces contamination risks, particularly in sensitive production areas.• OF320 lubrication option assures extended service intervals and smooth, reliable operation in harsh environments.
• Manufactured in robust AISI 316L stainless steel, the gearbox ensures outstanding corrosion resistance, making it ideal for food processing, pharmaceutical, chemical, and marine applications.• 10:1 gear ratio offers precise speed reduction and torque multiplication, supporting applications such as conveyor systems, mixers, and automated production lines.• The 25 mm output shaft, made from stainless steel, assures enhanced mechanical strength and hygiene in washdown environments.• Input shaft diameter of 19 mm fits standard industrial motors and promotes easy integration into existing systems.• Motor mounting interface complies with 80B14 flange, supporting a wide compatibility range with IEC motors.• High efficiency at 81% minimizes energy loss, supporting energy-conscious operations.• Compact I63 gear size enables installation in space-restricted environments, enhancing system flexibility.• Suitable for both horizontal (B3) mounting, offering installation versatility for various industrial layouts.• Clean, crevice-free design simplifies maintenance and reduces contamination risks, particularly in sensitive production areas.• OF320 lubrication option assures extended service intervals and smooth, reliable operation in harsh environments.
Specifications
IP classification
IP66
Material
Stainless steel AISI 316L
Ratio
10:1
BCD input
100
BCD output
92
Efficiency (%)
81
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
I63
Output speed at 1400 RPM
140
Max output torque (Nm)
134
Max kW input at 1400 rpm
2.4
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Foreign trade
HS-Code
84834025
ERP net weight (Kg)
14.60
Country of origin
ITA
