Description

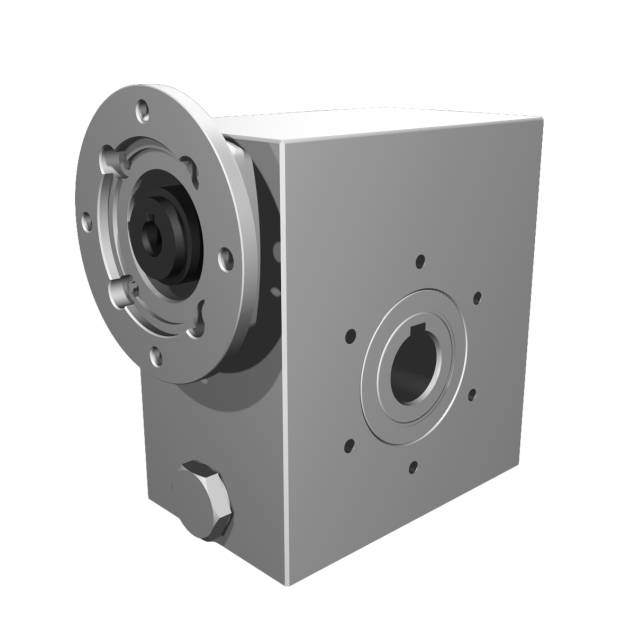

Clean-Geartech is a renowned manufacturer specializing in high-quality gearboxes for demanding industrial applications. Their products are well-known for exceptional reliability, hygiene, and longevity in harsh environments – especially within food, pharmaceutical, and chemical industries. **Product: Clean-Geartech VFI I50, Worm Gearbox Ø25, 26:1, Input 63B14, B3, OF320, Stainless Steel**
High corrosion resistance: The entire gearbox housing is manufactured from AISI 316L stainless steel, making it exceptionally suitable for aggressive environments, frequent washdowns, and industries with strict hygiene requirements.
Optimized worm gear design: With a 26:1 ratio, the unit is ideal for applications requiring significant torque multiplication with relatively low output speeds, geared perfectly for conveyors, dosing systems, and mixers.
Stainless steel output shaft (Ø25 mm): The output shaft is crafted from stainless steel, ensuring maximum durability and resistance to corrosion, suited for direct integration in wet processing zones.
63B14 Gear motor interface: The standardized input flange enables fast, trouble-free coupling with most IEC standard motors, offering flexibility in design and quick replacement or upgrades.
High efficiency (69%): Improved power transmission saves energy and reduces heat generation, vital for continuous operation in automated lines and energy-conscious facilities.
Compact I50 gear size: The compact footprint allows installation into restricted spaces, supporting modular machine designs and retrofitting into existing layouts.
Input shaft (Ø11 mm) in stainless steel: Provides superior robustness in demanding processes, with reduced risk of wear, even during heavy loads and frequent stopping/starting cycles.
Versatile applications: Perfectly suited for food processing, pharmaceuticals, packaging machinery, marine environments, clean rooms, and any area where hygiene and corrosion resistance are essential.
High corrosion resistance: The entire gearbox housing is manufactured from AISI 316L stainless steel, making it exceptionally suitable for aggressive environments, frequent washdowns, and industries with strict hygiene requirements.
Optimized worm gear design: With a 26:1 ratio, the unit is ideal for applications requiring significant torque multiplication with relatively low output speeds, geared perfectly for conveyors, dosing systems, and mixers.
Stainless steel output shaft (Ø25 mm): The output shaft is crafted from stainless steel, ensuring maximum durability and resistance to corrosion, suited for direct integration in wet processing zones.
63B14 Gear motor interface: The standardized input flange enables fast, trouble-free coupling with most IEC standard motors, offering flexibility in design and quick replacement or upgrades.
High efficiency (69%): Improved power transmission saves energy and reduces heat generation, vital for continuous operation in automated lines and energy-conscious facilities.
Compact I50 gear size: The compact footprint allows installation into restricted spaces, supporting modular machine designs and retrofitting into existing layouts.
Input shaft (Ø11 mm) in stainless steel: Provides superior robustness in demanding processes, with reduced risk of wear, even during heavy loads and frequent stopping/starting cycles.
Versatile applications: Perfectly suited for food processing, pharmaceuticals, packaging machinery, marine environments, clean rooms, and any area where hygiene and corrosion resistance are essential.
Specifications
IP classification
IP66
Material
Stainless steel AISI 316L
Ratio
26:1
BCD input
75
BCD output
75
Efficiency (%)
69
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
I50
Output speed at 1400 RPM
54
Max output torque (Nm)
66
Max kW input at 1400 rpm
0.54
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Foreign trade
HS-Code
84834025
ERP net weight (Kg)
7.30
Country of origin
ITA
