Description

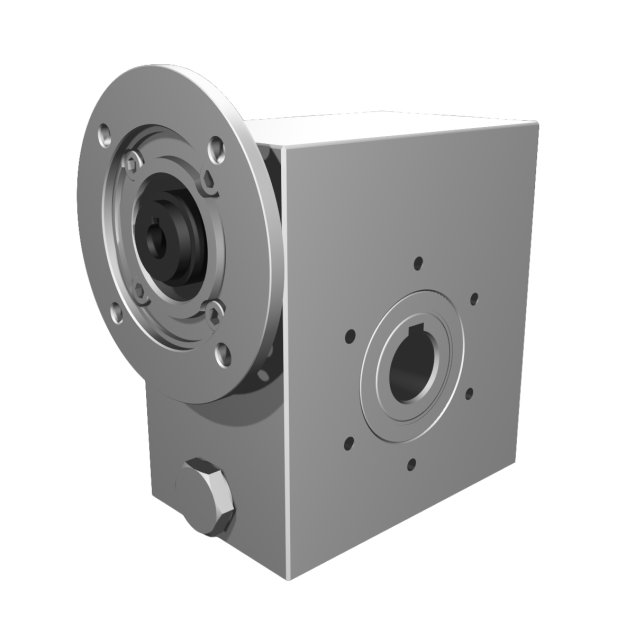

**Brand/Manufacturer:** Clean-Geartech is recognized for producing high-quality, durable gear solutions engineered for demanding industrial environments. Their stainless steel gearboxes are specifically designed to meet rigorous hygiene standards and deliver long-lasting performance within corrosive and washdown settings. **Key Features, Benefits, and Applications:**
Robust stainless steel housing made from AISI 316L ensures exceptional corrosion resistance, making it ideal for food processing, pharmaceutical, and marine industries.
Worm gear type provides high torque output and smooth, quiet operation, suitable for conveyor systems, material handling equipment, and automation robots.
Output shaft diameter of 25 mm (also in stainless steel) enables easy integration with a wide range of drive components, ensuring flexible system configurations.
Input shaft size of 14 mm combined with a 71B14 motor interface simplifies adaptation to standard industrial motors, reducing installation time and cost.
Gear ratio of 18:1 allows for precise speed reduction and increased torque, enhancing control in applications requiring accurate positioning and load handling.
High efficiency of 75% ensures energy savings during continuous operation, contributing to lower operational costs and sustainable system design.
Compact I50 gear size offers space-saving installation while delivering the necessary mechanical power in tight machine layouts.
Simplified maintenance due to the use of stainless steel components results in improved hygiene, reduced contamination risk, and longer service life in harsh environments.
BCD Input: 85 mm, BCD Output: 75 mm provides compatibility with a variety of mounting standards, supporting easy replacement and upgrades in existing systems.
Robust stainless steel housing made from AISI 316L ensures exceptional corrosion resistance, making it ideal for food processing, pharmaceutical, and marine industries.
Worm gear type provides high torque output and smooth, quiet operation, suitable for conveyor systems, material handling equipment, and automation robots.
Output shaft diameter of 25 mm (also in stainless steel) enables easy integration with a wide range of drive components, ensuring flexible system configurations.
Input shaft size of 14 mm combined with a 71B14 motor interface simplifies adaptation to standard industrial motors, reducing installation time and cost.
Gear ratio of 18:1 allows for precise speed reduction and increased torque, enhancing control in applications requiring accurate positioning and load handling.
High efficiency of 75% ensures energy savings during continuous operation, contributing to lower operational costs and sustainable system design.
Compact I50 gear size offers space-saving installation while delivering the necessary mechanical power in tight machine layouts.
Simplified maintenance due to the use of stainless steel components results in improved hygiene, reduced contamination risk, and longer service life in harsh environments.
BCD Input: 85 mm, BCD Output: 75 mm provides compatibility with a variety of mounting standards, supporting easy replacement and upgrades in existing systems.
Specifications
IP classification
IP66
Material
Stainless steel AISI 316L
Ratio
18:1
BCD input
85
BCD output
75
Efficiency (%)
75
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
I50
Output speed at 1400 RPM
78
Max output torque (Nm)
62
Max kW input at 1400 rpm
0.67
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Foreign trade
HS-Code
84834025
ERP net weight (Kg)
7.30
Country of origin
ITA
