Description

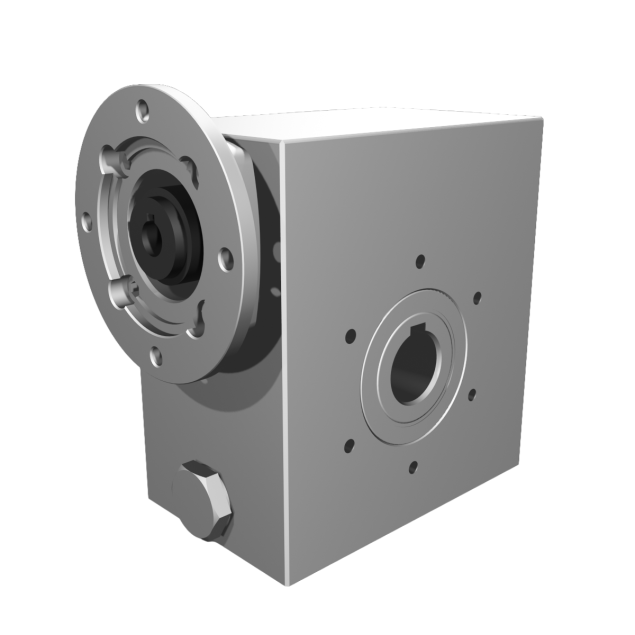

Clean-Geartech is renowned for delivering premium quality stainless steel gear solutions, engineered to meet the strict hygiene and durability demands in industrial sectors such as food processing, pharmaceuticals, and chemical engineering.Product Name: Clean-Geartech VFI I50, Worm Gear Ø25, 100:1 Ratio, Input 63B14, B3, OF320, Stainless SteelKey Attributes and Application Benefits:
High-grade AISI 316L Stainless Steel housing provides exceptional corrosion resistance for use in aggressive environments, ideal for food and pharmaceutical industries.
Output shaft diameter of 25 mm allows integration with a wide variety of driven equipment, including conveyors, mixers, and pumps.
Stainless Steel input shaft with a diameter of 11 mm ensures reliable power transmission and longevity, even in demanding applications.
The 100:1 ratio offers high torque at low output speeds, perfectly suited for applications requiring precise, controlled motion.
Fits IEC 63B14 motor interface, allowing flexible and easy integration with a broad range of compatible gear motors.
Compact Gear size I50 is optimal for installations where space is restricted, enhancing design flexibility in equipment layout.
Efficiency rating of 50% balances compact design with effective power transmission, suitable for moderate-duty cycles.
Hollow stainless steel output shaft enables direct coupling to the driven shaft, simplifying assembly and reducing maintenance requirements.Applications:
Designed for hygienic production lines in food and beverage processing, pharmaceutical filling, packaging machinery, and chemical process automation.
Perfect for equipment subject to frequent washdowns or cleaning-in-place (CIP) protocols due to its fully stainless construction.
High-grade AISI 316L Stainless Steel housing provides exceptional corrosion resistance for use in aggressive environments, ideal for food and pharmaceutical industries.
Output shaft diameter of 25 mm allows integration with a wide variety of driven equipment, including conveyors, mixers, and pumps.
Stainless Steel input shaft with a diameter of 11 mm ensures reliable power transmission and longevity, even in demanding applications.
The 100:1 ratio offers high torque at low output speeds, perfectly suited for applications requiring precise, controlled motion.
Fits IEC 63B14 motor interface, allowing flexible and easy integration with a broad range of compatible gear motors.
Compact Gear size I50 is optimal for installations where space is restricted, enhancing design flexibility in equipment layout.
Efficiency rating of 50% balances compact design with effective power transmission, suitable for moderate-duty cycles.
Hollow stainless steel output shaft enables direct coupling to the driven shaft, simplifying assembly and reducing maintenance requirements.Applications:
Designed for hygienic production lines in food and beverage processing, pharmaceutical filling, packaging machinery, and chemical process automation.
Perfect for equipment subject to frequent washdowns or cleaning-in-place (CIP) protocols due to its fully stainless construction.
Specifications
IP classification
IP66
Material
Stainless steel AISI 316L
Ratio
100:1
BCD input
75
BCD output
75
Efficiency (%)
50
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
I50
Output speed at 1400 RPM
14
Max output torque (Nm)
51
Max kW input at 1400 rpm
0.15
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Foreign trade
HS-Code
84834025
ERP net weight (Kg)
7.30
Country of origin
ITA
