Description

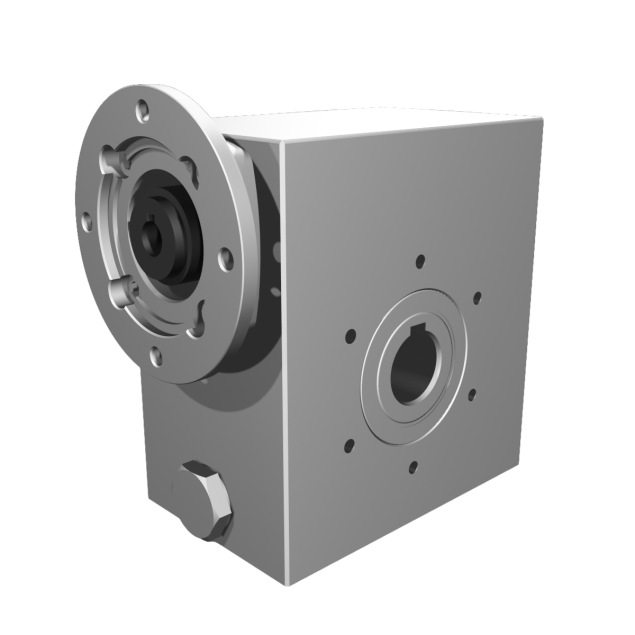

Producer: Clean-Geartech is renowned for manufacturing high-quality, hygienic stainless steel gearboxes designed specifically for demanding industrial applications, ensuring durability, reliability, and resistance to corrosion.
Robust stainless steel AISI 316L gear housing provides excellent corrosion resistance, making the gearbox ideal for use in harsh, washdown, and hygienically critical environments, such as food, pharmaceutical, and chemical processing industries.
Worm gear configuration (Ratio 10:1) enables substantial torque multiplication and output speed reduction—crucial for precise motion control in conveying, packaging, and material handling systems.
Input flange 63B14 ensures seamless compatibility with a wide range of electric motors, supporting flexible system integration and standardized mounting options.
Highly efficient (80%) operation minimizes energy loss and heat generation, optimizing power use and promoting sustainable application in continuous-duty cycles.
25 mm output shaft diameter accommodates heavy loads and transmits high torque, supporting conveyor systems, mixers, and processing equipment.
11 mm input shaft dimension suited for robust coupling to motor shafts or drives in automated systems, ensuring stable and vibration-free operation.
Compact housing size (I50) supports easy installation in space-constrained environments, facilitating retrofits and new machine integrations.
OF320 mounting and B3 foot-mounted design enable straightforward installation, providing installation flexibility for vertical or horizontal orientations.
All stainless steel components, including hollow shaft options, extend longevity, sanitary performance, and maintainability, lowering overall lifecycle costs.
Robust stainless steel AISI 316L gear housing provides excellent corrosion resistance, making the gearbox ideal for use in harsh, washdown, and hygienically critical environments, such as food, pharmaceutical, and chemical processing industries.
Worm gear configuration (Ratio 10:1) enables substantial torque multiplication and output speed reduction—crucial for precise motion control in conveying, packaging, and material handling systems.
Input flange 63B14 ensures seamless compatibility with a wide range of electric motors, supporting flexible system integration and standardized mounting options.
Highly efficient (80%) operation minimizes energy loss and heat generation, optimizing power use and promoting sustainable application in continuous-duty cycles.
25 mm output shaft diameter accommodates heavy loads and transmits high torque, supporting conveyor systems, mixers, and processing equipment.
11 mm input shaft dimension suited for robust coupling to motor shafts or drives in automated systems, ensuring stable and vibration-free operation.
Compact housing size (I50) supports easy installation in space-constrained environments, facilitating retrofits and new machine integrations.
OF320 mounting and B3 foot-mounted design enable straightforward installation, providing installation flexibility for vertical or horizontal orientations.
All stainless steel components, including hollow shaft options, extend longevity, sanitary performance, and maintainability, lowering overall lifecycle costs.
Specifications
IP classification
IP66
Material
Stainless steel AISI 316L
Ratio
10:1
BCD input
75
BCD output
75
Efficiency (%)
80
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
I50
Output speed at 1400 RPM
140
Max output torque (Nm)
62
Max kW input at 1400 rpm
1.1
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Foreign trade
HS-Code
84834025
ERP net weight (Kg)
7.30
Country of origin
ITA
