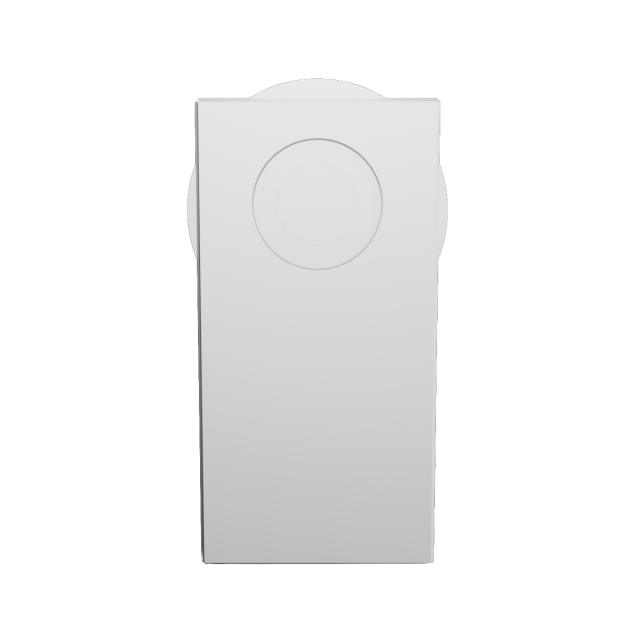

calcPageSize())" />Clean-Geartech VFI I45, worm gear Ø18, 7:1, input 71B14, B3, OF320, stainless steel
HV82PI45UNIN010MBINN-QB3-C-OFThe Clean-Geartech VFI I45, worm gear Ø18, 7:1, input 71B14, B3, OF320, stainless steel is designed for demanding industrial applications. Key attributes include: BCD input: 85 mm, BCD output: 64 mm, Efficiency: 80%, Gear input shaft: 14 mm, Gear material: stainless steel AISI 316L, Gear motor interface: 71B14, Gear output shaft: 18 mm, Ratio: 7:1, Gear size: I45. This gearbox meets requirements for durability, corrosion resistance, and compatibility with standard motor configurations, making it suitable for technical environments where stainless steel and reliability are crucial.
Specifications
Product description
Downloads
€829.00
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
5.000000
Material
Stainless steel AISI 316L
Ratio
7:1
BCD input
85
BCD output
64
Efficiency (%)
80
Gear output shaft (mm)
18
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
I45
Output speed at 1400 RPM
200
Max output torque (Nm)
30
Max kW input at 1400 rpm
0.8
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description

**Brand Description:** Clean-Geartech is a recognized leader in industrial drive solutions, known for manufacturing high-quality, corrosion-resistant gearboxes ideal for demanding engineering environments. Specializing in stainless steel construction, Clean-Geartech’s products combine mechanical durability with innovative design.**Key Features, Advantages, and Application Possibilities:**
Constructed from corrosion-resistant AISI 316L stainless steel for exceptional durability, making it ideal for use in food processing, pharmaceutical, and chemical industries where hygiene and resistance to aggressive cleaning agents are required.
Gear input shaft (Ø14 mm) and output shaft (Ø18 mm) made of stainless steel ensure robust performance, reliability, and extended endurance against wear in continuous operation environments.
7:1 gear ratio provides optimal torque multiplication and smooth speed reduction, suitable for conveyor systems, automated machinery, and material handling where precision and efficiency are crucial.
High mechanical efficiency rated at 80% enables significant reduction of energy loss, supporting greener operations and lower operational costs for industrial facilities.
Designed for quick and standard motor mounting via 71B14 gear motor interface, streamlining installation and integration into existing platforms and modular factory setups.
Compact I45 gear size allows integration into space-limited automation systems or retrofitting in existing production lines.
Output configuration B3/OF320 further expands mounting flexibility, supporting horizontal and varied custom installation requirements.
Fully sealed and easy-to-clean housing minimizes contamination risks, making it ideal for cleanroom, washdown, and outdoor industrial applications.
Constructed from corrosion-resistant AISI 316L stainless steel for exceptional durability, making it ideal for use in food processing, pharmaceutical, and chemical industries where hygiene and resistance to aggressive cleaning agents are required.
Gear input shaft (Ø14 mm) and output shaft (Ø18 mm) made of stainless steel ensure robust performance, reliability, and extended endurance against wear in continuous operation environments.
7:1 gear ratio provides optimal torque multiplication and smooth speed reduction, suitable for conveyor systems, automated machinery, and material handling where precision and efficiency are crucial.
High mechanical efficiency rated at 80% enables significant reduction of energy loss, supporting greener operations and lower operational costs for industrial facilities.
Designed for quick and standard motor mounting via 71B14 gear motor interface, streamlining installation and integration into existing platforms and modular factory setups.
Compact I45 gear size allows integration into space-limited automation systems or retrofitting in existing production lines.
Output configuration B3/OF320 further expands mounting flexibility, supporting horizontal and varied custom installation requirements.
Fully sealed and easy-to-clean housing minimizes contamination risks, making it ideal for cleanroom, washdown, and outdoor industrial applications.
