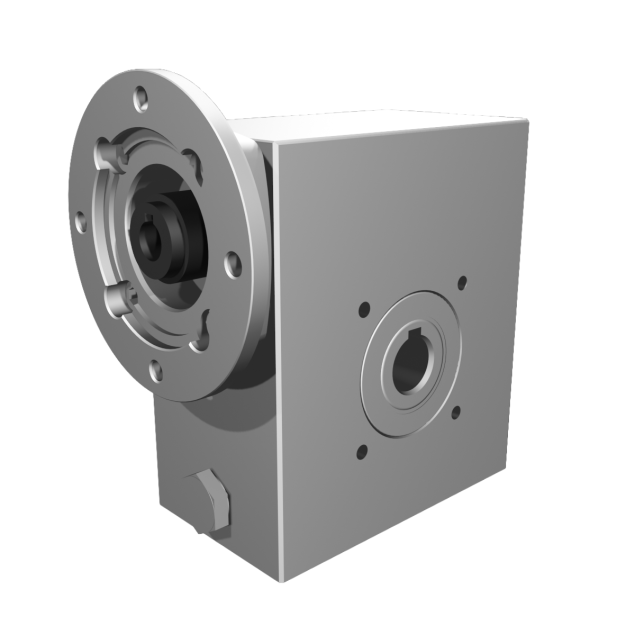

Clean-Geartech VFI I45, worm gear Ø18, 46:1, input 63B14, B3, OF320, stainless steel
HV82PI45UNIN070MBINN-PB3-B-OFThe Clean-Geartech VFI I45 Worm Gearbox Ø18, 46:1, Input 63B14, B3, OF320, Stainless Steel offers reliable mechanical transmission for technical applications. Key attributes include: Input BCD: 75 mm, Output BCD: 64 mm, Gear Input Shaft: 11 mm, Gear Output Shaft: 18 mm, Gear Ratio: 46:1, Efficiency: 59%, Gear Motor Interface: 63B14, Gear Size: I45, and Gear Material: Stainless Steel AISI 316L. This gearbox provides a robust solution for environments requiring durability and corrosion resistance, with a configuration suitable for B3 mounting and OF320 lubrication.
Specifications
Product description
Downloads
€824.00
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
5.000000
Material
Stainless steel AISI 316L
Ratio
46:1
BCD input
75
BCD output
64
Efficiency (%)
59
Gear output shaft (mm)
18
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
I45
Output speed at 1400 RPM
30
Max output torque (Nm)
41
Max kW input at 1400 rpm
0.22
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
**Brand/Manufacturer:** Clean-Geartech is recognized for its advanced engineering and robust design standards, specializing in hygienic stainless steel gearing solutions for demanding industrial applications, ensuring long operational lifespan and reliable performance.**Key Features, Benefits & Application Possibilities:**
Stainless Steel Housing (AISI 316L): Engineered with superior corrosion resistance for use in harsh and hygienic environments, such as food processing, pharmaceuticals, and chemical industries.
Stainless Steel Output Shaft, Ø18 mm: Delivers exceptional durability and hygiene in environments where contamination risks must be minimized, supporting wash-down and cleanroom applications.
Input Shaft Ø11 mm: Standard dimension for easy integration with a wide range of IEC-standard motors using the 63B14 motor interface.
High Gear Ratio (46:1): Offers precise speed reduction, enabling high torque output for demanding industrial automation and conveying applications.
Efficiency of 59%: Balances power transmission demands with energy conservation, supporting sustainable operation and lower energy costs.
Compact Gear Size (I45): Enables installation in space-constrained areas, optimizing machine and production line design.
Universal Mounting (B3): Facilitates versatile installation options, both horizontally and vertically, enhancing adaptability for diverse machinery.
OF320 Lubrication: Utilizes premium-grade lubricants suitable for stainless steel gearboxes, ensuring reliability with minimal maintenance.
Cleanroom-Grade Design: Ideal for environments requiring strict hygiene standards, such as beverage, dairy, meat processing and medical device manufacturing.
Low Maintenance Requirements: Extended service intervals reduce downtime and operational costs for industrial end users.
Stainless Steel Housing (AISI 316L): Engineered with superior corrosion resistance for use in harsh and hygienic environments, such as food processing, pharmaceuticals, and chemical industries.
Stainless Steel Output Shaft, Ø18 mm: Delivers exceptional durability and hygiene in environments where contamination risks must be minimized, supporting wash-down and cleanroom applications.
Input Shaft Ø11 mm: Standard dimension for easy integration with a wide range of IEC-standard motors using the 63B14 motor interface.
High Gear Ratio (46:1): Offers precise speed reduction, enabling high torque output for demanding industrial automation and conveying applications.
Efficiency of 59%: Balances power transmission demands with energy conservation, supporting sustainable operation and lower energy costs.
Compact Gear Size (I45): Enables installation in space-constrained areas, optimizing machine and production line design.
Universal Mounting (B3): Facilitates versatile installation options, both horizontally and vertically, enhancing adaptability for diverse machinery.
OF320 Lubrication: Utilizes premium-grade lubricants suitable for stainless steel gearboxes, ensuring reliability with minimal maintenance.
Cleanroom-Grade Design: Ideal for environments requiring strict hygiene standards, such as beverage, dairy, meat processing and medical device manufacturing.
Low Maintenance Requirements: Extended service intervals reduce downtime and operational costs for industrial end users.
