Description

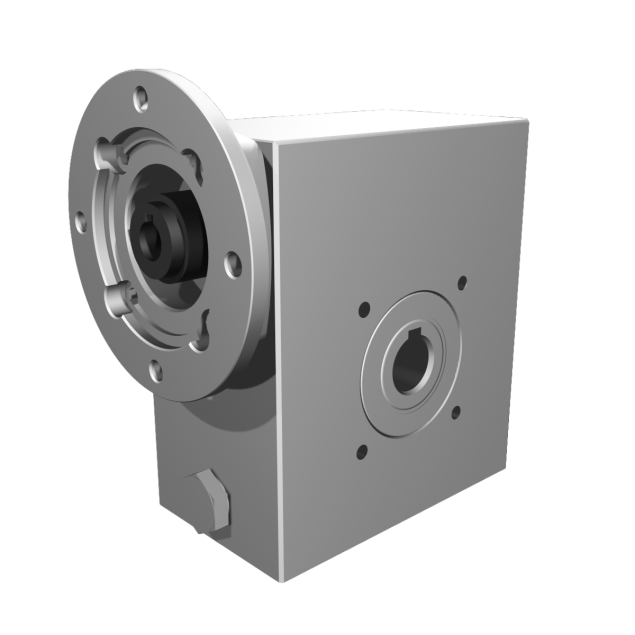

Clean-Geartech is a renowned manufacturer specializing in high-performance gear solutions made from premium stainless steel. The company is committed to delivering durable and hygienic power transmission components tailored for demanding industrial applications, where reliability, corrosion resistance and hygiene are critical.**Product name:** Clean-Geartech VFI I45, Worm Gearbox Ø18, 28:1, Input 63B14, B3, OF320, Stainless Steel**Key features and usage possibilities:**
High-grade AISI 316L stainless steel housing and components ensure excellent corrosion resistance, making the gearbox ideal for challenging environments such as food, pharmaceutical, and chemical industries.
Input shaft diameter of 11 mm and output shaft diameter of 18 mm allow for compatibility with a wide range of motors and driven components, supporting diverse mechanical configurations.
Compact I45 gear size makes this gearbox suitable for use in installations where space is limited, without compromising performance or durability.
Worm gear ratio of 28:1 provides high torque multiplication and precise motion control for conveyors, packaging lines, agitators, and automated processing equipment.
Gear motor interface 63B14 allows direct mounting to standard IEC motors, simplifying integration and reducing assembly time for OEMs and system integrators.
Efficiency rating of 65% ensures reliable operation while minimizing energy consumption, facilitating compliance with sustainability and cost targets.
B3 foot mounting and OF320 configuration grant versatile installation options for horizontal or vertical orientation in machinery layouts.
The corrosion-resistant through bore-output (Ø18 mm) simplifies wash-down processes, enhances hygiene, and reduces maintenance intervals in sanitary-sensitive environments.
Suitable for industries including food processing, pharmaceuticals, marine engineering, and chemical handling where reliable, hygienic, and rugged gearbox performance is essential.
High-grade AISI 316L stainless steel housing and components ensure excellent corrosion resistance, making the gearbox ideal for challenging environments such as food, pharmaceutical, and chemical industries.
Input shaft diameter of 11 mm and output shaft diameter of 18 mm allow for compatibility with a wide range of motors and driven components, supporting diverse mechanical configurations.
Compact I45 gear size makes this gearbox suitable for use in installations where space is limited, without compromising performance or durability.
Worm gear ratio of 28:1 provides high torque multiplication and precise motion control for conveyors, packaging lines, agitators, and automated processing equipment.
Gear motor interface 63B14 allows direct mounting to standard IEC motors, simplifying integration and reducing assembly time for OEMs and system integrators.
Efficiency rating of 65% ensures reliable operation while minimizing energy consumption, facilitating compliance with sustainability and cost targets.
B3 foot mounting and OF320 configuration grant versatile installation options for horizontal or vertical orientation in machinery layouts.
The corrosion-resistant through bore-output (Ø18 mm) simplifies wash-down processes, enhances hygiene, and reduces maintenance intervals in sanitary-sensitive environments.
Suitable for industries including food processing, pharmaceuticals, marine engineering, and chemical handling where reliable, hygienic, and rugged gearbox performance is essential.
Specifications
IP classification
IP66
Material
Stainless steel AISI 316L
Ratio
28:1
BCD input
75
BCD output
64
Efficiency (%)
65
Gear output shaft (mm)
18
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
I45
Output speed at 1400 RPM
50
Max output torque (Nm)
41
Max kW input at 1400 rpm
0.33
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Foreign trade
HS-Code
84834025
ERP net weight (Kg)
5.00
Country of origin
ITA
