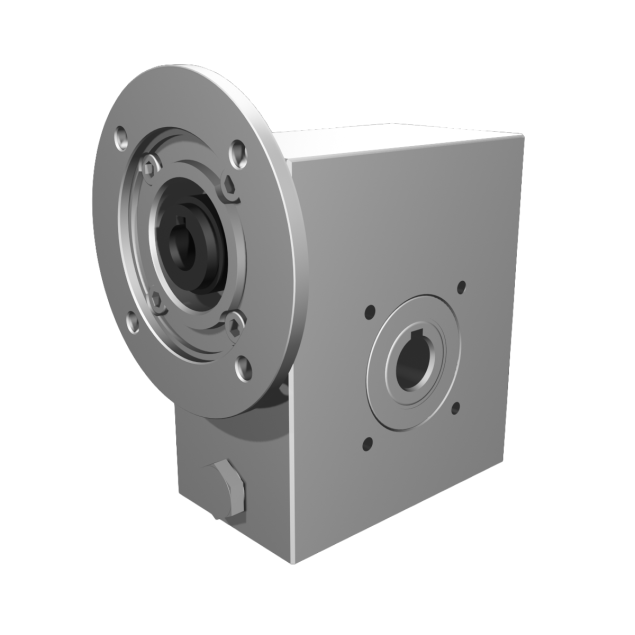

Clean-Geartech VFI I45, worm gear Ø18, 10:1, input 71B14, B3, OF320, stainless steel
HV82PI45UNIN020MBINN-QB3-C-OFThe Clean-Geartech VFI I45 Worm Gearbox Ø18, 10:1, Input 71B14, B3, OF320, Stainless Steel is designed for technical applications requiring durability and reliability. The gearbox features a gear input shaft diameter of 14 mm and a gear output shaft diameter of 18 mm. It offers a transmission ratio of 10:1 and a gear motor interface type 71B14. The gear size is I45. Constructed with gears made from stainless steel AISI 316L, the unit delivers BCD input of 85 mm, BCD output of 64 mm, and efficiency of 79%. Ideal for environments demanding corrosion resistance and robust mechanical performance.
Specifications
Product description
Downloads
€829.00
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
5.000000
Material
Stainless steel AISI 316L
Ratio
10:1
BCD input
85
BCD output
64
Efficiency (%)
79
Gear output shaft (mm)
18
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
I45
Output speed at 1400 RPM
140
Max output torque (Nm)
30
Max kW input at 1400 rpm
0.57
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech VFI I45, Worm Gear Ø18, 10:1, Input 71B14, B3, OF320, Stainless Steel**Manufacturer Overview:**
Clean-Geartech specializes in advanced stainless steel gear solutions designed for the highest requirements in hygiene, durability, and mechanical reliability, often used in demanding industrial environments such as food & beverage or pharmaceuticals.**Key Features, Advantages, and Application Scenarios:**
• Made from corrosion-resistant stainless steel AISI 316L, ensuring longevity, chemical resistance, and suitability for washdown or sterile environments.• Stainless steel output shaft (Ø18 mm) increases reliability for demanding applications and reduces risk of contamination, ideal for processes with direct product contact.• Precise 10:1 gear ratio provides effective torque management, making it suitable for precise speed control applications in automation and process engineering.• Compatible with 71B14 motor interface, allowing for seamless integration with standard IEC motors, improving design flexibility and reducing installation time.• High efficiency of 79% reduces power consumption and operational costs, favored by engineers prioritizing energy optimization.• Input shaft dimension (Ø14 mm) ensures compatibility across various drive configurations, supporting custom machinery design.• Compact gear size (I45) supports installation in restricted spaces or retrofit scenarios within machinery and process lines.• Designed for hygiene-critical sectors such as food processing, chemical plants, pharmaceutical production, and cleanrooms thanks to robust stainless steel construction.• Supports B3 mounting for stable horizontal installations, enhancing flexibility in equipment setups.• SKU OF320, ready for rapid specification in procurement and spare parts management.
Clean-Geartech specializes in advanced stainless steel gear solutions designed for the highest requirements in hygiene, durability, and mechanical reliability, often used in demanding industrial environments such as food & beverage or pharmaceuticals.**Key Features, Advantages, and Application Scenarios:**
• Made from corrosion-resistant stainless steel AISI 316L, ensuring longevity, chemical resistance, and suitability for washdown or sterile environments.• Stainless steel output shaft (Ø18 mm) increases reliability for demanding applications and reduces risk of contamination, ideal for processes with direct product contact.• Precise 10:1 gear ratio provides effective torque management, making it suitable for precise speed control applications in automation and process engineering.• Compatible with 71B14 motor interface, allowing for seamless integration with standard IEC motors, improving design flexibility and reducing installation time.• High efficiency of 79% reduces power consumption and operational costs, favored by engineers prioritizing energy optimization.• Input shaft dimension (Ø14 mm) ensures compatibility across various drive configurations, supporting custom machinery design.• Compact gear size (I45) supports installation in restricted spaces or retrofit scenarios within machinery and process lines.• Designed for hygiene-critical sectors such as food processing, chemical plants, pharmaceutical production, and cleanrooms thanks to robust stainless steel construction.• Supports B3 mounting for stable horizontal installations, enhancing flexibility in equipment setups.• SKU OF320, ready for rapid specification in procurement and spare parts management.
