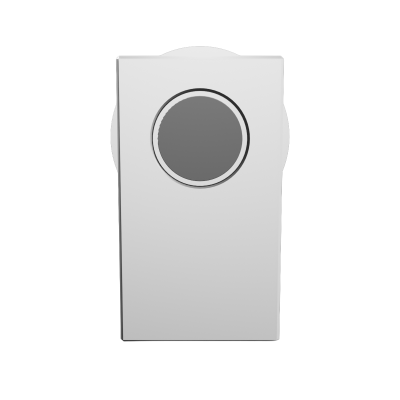

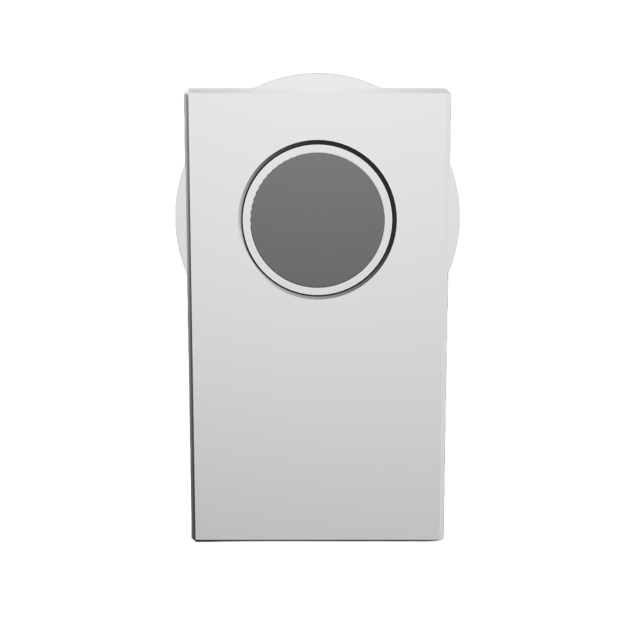

Clean-Geartech VFI I30, worm gear Ø14, 20:1, input 63B14, B3, OF320, stainless steel
HV82PI30UNIN040MAINN-PB3-B-OFThe Clean-Geartech VFI I30, worm gear Ø14, 20:1, input 63B14, B3, OF320, stainless steel, is designed for technical applications requiring durability and reliable performance. BCD input: 75 mm, BCD output: 64 mm, Efficiency: 70%, Gear input shaft: 11 mm, Gear output shaft: 14 mm. The gear material is stainless steel AISI 316L, supporting applications in corrosive environments. Key interface includes gear motor interface: 63B14. With a ratio of 20:1 and gear size: I30, this unit delivers standardised mechanical integration for technical installations.
Specifications
Product description
Downloads
€643.00
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
2.500000
Material
Stainless steel AISI 316L
Ratio
20:1
BCD input
75
BCD output
64
Efficiency (%)
70
Gear output shaft (mm)
14
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
I30
Output speed at 1400 RPM
70
Max output torque (Nm)
19
Max kW input at 1400 rpm
0.2
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
**Product Description – Clean-Geartech VFI I30 Worm Gear Ø14, 20:1, input 63B14, B3, OF320, Stainless Steel**
- Encased in high-grade AISI 316L stainless steel, ensuring exceptional corrosion resistance for use in food, pharmaceutical, and chemical processing plants. - Features a 14 mm stainless steel hollow output shaft, providing increased durability in aggressive and hygienic environments. - Delivers a robust 20:1 gear ratio, ideal for applications that demand precise speed reduction and increased torque at the output. - The 63B14 motor interface ensures compatibility with a wide range of IEC standard motors for flexible system integration. - Efficient power transfer with 70% efficiency, optimizing energy use and operational cost in continuous or heavy-duty operations. - Compact I30 gear size allows for installation in restrictive spaces, benefiting machinery layout and facilitating retrofit solutions. - 11 mm input shaft accommodates standard drive components, simplifying assembly and maintenance. - Designed for high hygiene applications; the stainless steel construction resists bacterial growth and is easy to sanitize. - Perfect for conveyors, mixers, packaging, and automation equipment requiring reliable, washdown-capable drive solutions. - Suitable for both dry and wet environments, ensuring extended operational life even under harsh cleaning regimes.
- Encased in high-grade AISI 316L stainless steel, ensuring exceptional corrosion resistance for use in food, pharmaceutical, and chemical processing plants. - Features a 14 mm stainless steel hollow output shaft, providing increased durability in aggressive and hygienic environments. - Delivers a robust 20:1 gear ratio, ideal for applications that demand precise speed reduction and increased torque at the output. - The 63B14 motor interface ensures compatibility with a wide range of IEC standard motors for flexible system integration. - Efficient power transfer with 70% efficiency, optimizing energy use and operational cost in continuous or heavy-duty operations. - Compact I30 gear size allows for installation in restrictive spaces, benefiting machinery layout and facilitating retrofit solutions. - 11 mm input shaft accommodates standard drive components, simplifying assembly and maintenance. - Designed for high hygiene applications; the stainless steel construction resists bacterial growth and is easy to sanitize. - Perfect for conveyors, mixers, packaging, and automation equipment requiring reliable, washdown-capable drive solutions. - Suitable for both dry and wet environments, ensuring extended operational life even under harsh cleaning regimes.
