Description
Clean-Geartech is an industry leader in high-performance stainless-steel gear units engineered for demanding industrial environments, offering reliable solutions for applications that require durability, corrosion resistance, and hygienic design, particularly in food processing, pharmaceuticals, and chemical industries.**Product Name:**

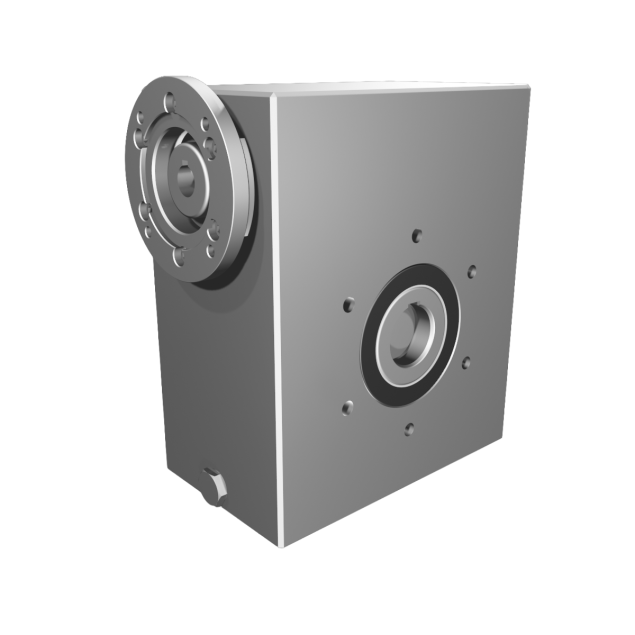

Clean-Geartech VFI I11, Worm Gearbox Ø42, 84:1, Input 80B14, B3, OF320, Stainless Steel**Key Features & Benefits:**
- Constructed from AISI 316L stainless steel, providing exceptional resistance to corrosion, chemicals, and aggressive cleaning agents, ensuring longevity in harsh environments.- Worm gearbox design with a high reduction ratio of 84:1 enables precise speed control and high torque output, ideal for conveying, lifting, and dosing applications.- Features a 42 mm stainless steel hollow output shaft, supporting easy integration into various machinery; excellent for food, beverage, and pharmaceutical production lines with strict hygiene requirements.- Motor interface: Standardized 80B14 input flange for versatile compatibility with a wide range of IEC-compliant motors, streamlining system integration and reducing installation time.- Gear input shaft diameter of 19 mm offers compatibility with common drive couplings and flexible power transfer options.- Operational efficiency of 65% ensures optimal balance between performance output and energy consumption, suitable for continuous-duty cycles and cost-sensitive applications.- Gear size I11 ensures a compact footprint, facilitating installation in space-constrained automation systems or retrofitting into existing setups.- Comprehensive sealing systems for reliable operation in environments requiring frequent washdowns or strict sanitary conditions.**Application Possibilities:**
- Conveyor systems, mixers, and agitators in food, beverage, or pharmaceutical plants- Automated packaging, sorting, and bottling equipment- Dosing and filling machines requiring precise movement control- Environmental and chemical processing plants needing maintenance-free gear solutions
Clean-Geartech VFI I11, Worm Gearbox Ø42, 84:1, Input 80B14, B3, OF320, Stainless Steel**Key Features & Benefits:**
- Constructed from AISI 316L stainless steel, providing exceptional resistance to corrosion, chemicals, and aggressive cleaning agents, ensuring longevity in harsh environments.- Worm gearbox design with a high reduction ratio of 84:1 enables precise speed control and high torque output, ideal for conveying, lifting, and dosing applications.- Features a 42 mm stainless steel hollow output shaft, supporting easy integration into various machinery; excellent for food, beverage, and pharmaceutical production lines with strict hygiene requirements.- Motor interface: Standardized 80B14 input flange for versatile compatibility with a wide range of IEC-compliant motors, streamlining system integration and reducing installation time.- Gear input shaft diameter of 19 mm offers compatibility with common drive couplings and flexible power transfer options.- Operational efficiency of 65% ensures optimal balance between performance output and energy consumption, suitable for continuous-duty cycles and cost-sensitive applications.- Gear size I11 ensures a compact footprint, facilitating installation in space-constrained automation systems or retrofitting into existing setups.- Comprehensive sealing systems for reliable operation in environments requiring frequent washdowns or strict sanitary conditions.**Application Possibilities:**
- Conveyor systems, mixers, and agitators in food, beverage, or pharmaceutical plants- Automated packaging, sorting, and bottling equipment- Dosing and filling machines requiring precise movement control- Environmental and chemical processing plants needing maintenance-free gear solutions
Specifications
IP classification
IP66
Material
Stainless steel AISI 316L
Ratio
84:1
BCD input
100
BCD output
140
Efficiency (%)
65
Gear output shaft (mm)
42
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
I11
Output speed at 1400 RPM
16.7
Max output torque (Nm)
494
Max kW input at 1400 rpm
1.3
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Foreign trade
HS-Code
84834025
ERP net weight (Kg)
38.50
Country of origin
ITA
