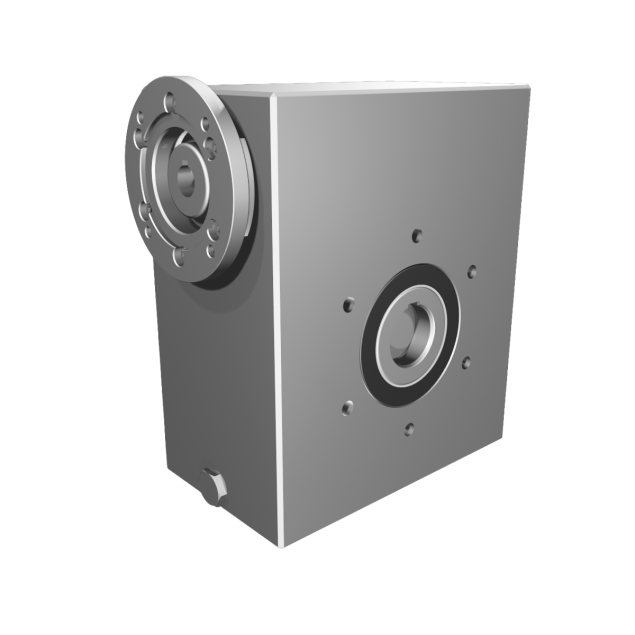

Clean-Geartech VFI I11, worm gear Ø42, 7:1, input 80B14, B3, OF320, stainless steel
HV82PI11UNIN010MMINN-RB3ST-OFThe Clean-Geartech VFI I11, worm gearbox Ø42, 7:1, input 80B14, B3, OF320, stainless steel is designed for demanding industrial applications. Key attributes: BCD input: 100 mm, BCD output: 140 mm, Efficiency: 88%, Gear input shaft: 19 mm, Gear output shaft: 42 mm, Gear material: Stainless steel AISI 316L, Gear motor interface: 80B14, Ratio: 7:1, Gear size: I11. Constructed in stainless steel for enhanced corrosion resistance. Suitable for installation types B3 and OF320. Designed for engineers and technical specialists requiring reliability and straightforward integration.
Specifications
Product description
Downloads
€3,381.00
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
38.500000
Material
Stainless steel AISI 316L
Ratio
7:1
BCD input
100
BCD output
140
Efficiency (%)
88
Gear output shaft (mm)
42
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
I11
Output speed at 1400 RPM
200
Max output torque (Nm)
483
Max kW input at 1400 rpm
11.5
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Product Name:
Clean-Geartech VFI I11, Worm Gear Ø42, 7:1, Input 80B14, B3, OF320, Stainless SteelKey Features & Application Possibilities:
Stainless Steel AISI 316L housing and output shaft (Ø42 mm) ensure outstanding corrosion resistance, making this gearbox ideal for cleanroom, pharmaceutical, food & beverage, and marine applications.
High mechanical efficiency of 88% minimizes power loss and ensures effective transmission for continuous operation in automated production environments.
Gear ratio of 7:1 enables significant torque increase and precise speed control, supporting applications such as conveyors, mixer drives, and packaging machinery.
Hollow input shaft size 19 mm with compact Gear size I11 caters to space-limited installations while providing robust performance.
Standard 80B14 gear motor interface allows easy coupling with common motors and retrofit projects for process optimization.
B3 mounting compatibility and OF320 options enhance installation flexibility in horizontal and vertical setups.
Hygienic, easy-to-clean design and stainless steel components reduce contamination risk and extend service life, perfect for industries with strict regulatory standards.
Clean-Geartech’s commitment to quality ensures reliable operation, operational safety, and minimal maintenance in the most challenging environments.
Clean-Geartech VFI I11, Worm Gear Ø42, 7:1, Input 80B14, B3, OF320, Stainless SteelKey Features & Application Possibilities:
Stainless Steel AISI 316L housing and output shaft (Ø42 mm) ensure outstanding corrosion resistance, making this gearbox ideal for cleanroom, pharmaceutical, food & beverage, and marine applications.
High mechanical efficiency of 88% minimizes power loss and ensures effective transmission for continuous operation in automated production environments.
Gear ratio of 7:1 enables significant torque increase and precise speed control, supporting applications such as conveyors, mixer drives, and packaging machinery.
Hollow input shaft size 19 mm with compact Gear size I11 caters to space-limited installations while providing robust performance.
Standard 80B14 gear motor interface allows easy coupling with common motors and retrofit projects for process optimization.
B3 mounting compatibility and OF320 options enhance installation flexibility in horizontal and vertical setups.
Hygienic, easy-to-clean design and stainless steel components reduce contamination risk and extend service life, perfect for industries with strict regulatory standards.
Clean-Geartech’s commitment to quality ensures reliable operation, operational safety, and minimal maintenance in the most challenging environments.
