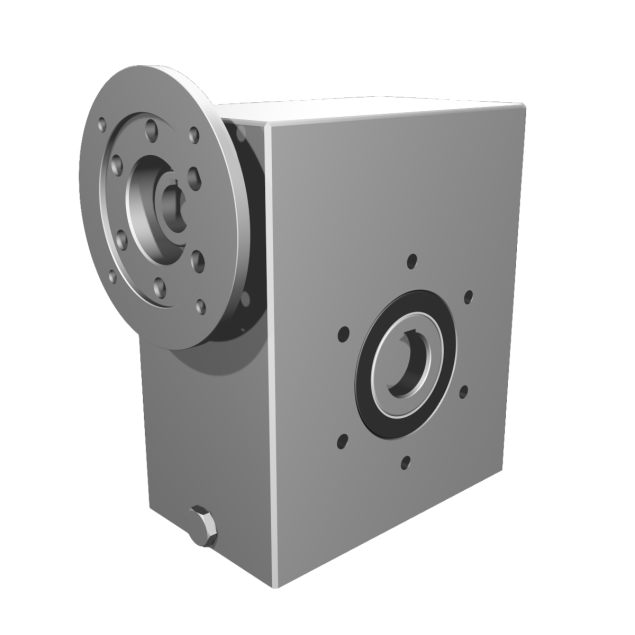

Clean-Geartech VFI I11, worm gear Ø42, 7:1, input 100/112B14, B3, OF320, stainless steel
HV82PI11UNIN010MMINN-UB3ST-OFInput BCD: 130 Output BCD: 140 Efficiency (%): 88 Gear input shaft (mm): 28 Gear material: Stainless steel AISI 316L Gear motor interface: 100/112B14 Gear output shaft (mm): 42 Gear ratio: 7:1 Gear size: I11 All major components are constructed from stainless steel, providing durability and corrosion resistance for hygienic or harsh environments. This model suits technical and engineering applications where reliability and cleanability are essential.
Specifications
Product description
Downloads
€3,389.00
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
38.500000
Material
Stainless steel AISI 316L
Ratio
7:1
BCD input
130
BCD output
140
Efficiency (%)
88
Gear output shaft (mm)
42
Gear input shaft (mm)
28
Gear motor interface
100/112B14
Gear size
I11
Output speed at 1400 RPM
200
Max output torque (Nm)
483
Max kW input at 1400 rpm
11.5
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
**Product Name:
Clean-Geartech VFI I11, Worm Gearbox Ø42, 7:1, input 100/112B14, B3, OF320, stainless steel ****Key Features & Application Opportunities:**
Crafted from AISI 316L stainless steel for exceptional resistance to corrosion, making it ideal for food processing, chemical plants, and pharmaceutical manufacturing
Achieves high efficiency (88%) under load, boosting system output and minimizing energy loss in continuous industrial operation
Features a Ø42 mm stainless steel hollow output shaft, supporting hygienic operation and compatibility with frequent washdowns
Suitable for IEC 100/112B14 motor interfaces, ensuring flexible integration with a broad range of industrial motors and automation layouts
Delivers a precise reduction ratio of 7:1 for optimal torque conversion and speed control in conveyors, mixers, and packaging lines
Equipped with a 28 mm input shaft to accommodate robust torque transfer and varied motor sizes
Compact I11 gearbox size offers space-saving installation, crucial for equipment where design constraints are significant
Meets stringent hygienic and operational demands in sectors like dairy, beverage, and bioprocessing thanks to its smooth, easy-to-clean surfaces
Durable construction allows for long maintenance intervals, reducing downtime and total cost of ownership in 24/7 industrial setups
Clean-Geartech VFI I11, Worm Gearbox Ø42, 7:1, input 100/112B14, B3, OF320, stainless steel ****Key Features & Application Opportunities:**
Crafted from AISI 316L stainless steel for exceptional resistance to corrosion, making it ideal for food processing, chemical plants, and pharmaceutical manufacturing
Achieves high efficiency (88%) under load, boosting system output and minimizing energy loss in continuous industrial operation
Features a Ø42 mm stainless steel hollow output shaft, supporting hygienic operation and compatibility with frequent washdowns
Suitable for IEC 100/112B14 motor interfaces, ensuring flexible integration with a broad range of industrial motors and automation layouts
Delivers a precise reduction ratio of 7:1 for optimal torque conversion and speed control in conveyors, mixers, and packaging lines
Equipped with a 28 mm input shaft to accommodate robust torque transfer and varied motor sizes
Compact I11 gearbox size offers space-saving installation, crucial for equipment where design constraints are significant
Meets stringent hygienic and operational demands in sectors like dairy, beverage, and bioprocessing thanks to its smooth, easy-to-clean surfaces
Durable construction allows for long maintenance intervals, reducing downtime and total cost of ownership in 24/7 industrial setups
