Description
Clean-Geartech is recognized for manufacturing premium gear solutions designed for demanding industrial environments. Their products, featuring high-grade AISI 316L stainless steel, ensure exceptional durability, corrosion resistance, and reliability in applications where hygiene and operational integrity are paramount.

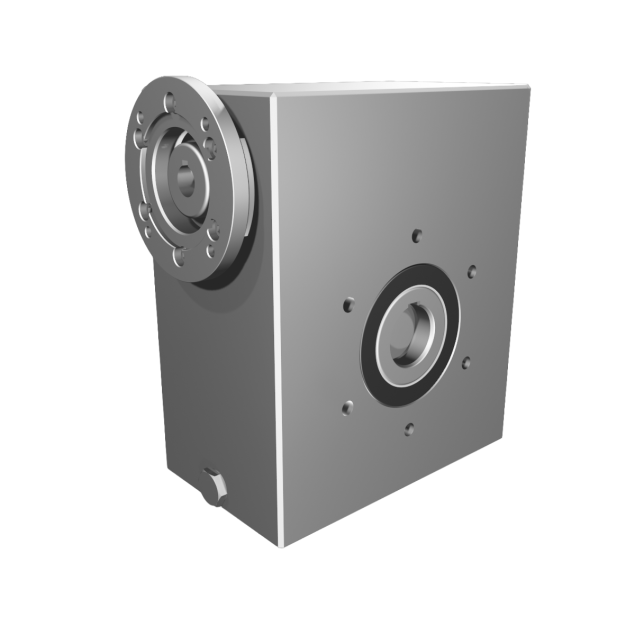

• Designed for harsh and hygienic environments, the VFI I11’s housing and gears are manufactured from stainless steel AISI 316L, providing outstanding corrosion resistance – ideal for chemical, pharmaceutical, and food industries.
• Equipped with a large stainless steel hollow output shaft (Ø42 mm) that enhances torque transmission and facilitates direct mounting onto driven equipment, supporting both easy cleaning and robust mechanical connection.
• Worm gear ratio of 64:1 delivers significant speed reduction and high torque output, optimally suited for precise positioning, lifting systems, and conveyor technology requiring controlled movement.
• Compatible with IEC 80B14 motor flange, simplifying integration into existing automation systems and ensuring flexibility in motor selection for varying application requirements.
• Compact I11 gear size allows installation in space-constrained applications without compromising on performance or reliability.
• Operational efficiency of 69% delivers reliable power transmission while minimizing energy losses in continuous-duty cycles, supporting cost-effective long-term operations.
• Engineered input shaft diameter of 19 mm allows the use of standard industrial couplings for easy and secure system assembly.
• Brand expertise from Clean-Geartech assures compliance with industry standards, providing long service life and minimal maintenance requirements, even in aggressive environments.
Ideal for use in processing lines, packaging machines, bottling systems, and any application demanding both high hygiene and mechanical strength.
• Designed for harsh and hygienic environments, the VFI I11’s housing and gears are manufactured from stainless steel AISI 316L, providing outstanding corrosion resistance – ideal for chemical, pharmaceutical, and food industries.
• Equipped with a large stainless steel hollow output shaft (Ø42 mm) that enhances torque transmission and facilitates direct mounting onto driven equipment, supporting both easy cleaning and robust mechanical connection.
• Worm gear ratio of 64:1 delivers significant speed reduction and high torque output, optimally suited for precise positioning, lifting systems, and conveyor technology requiring controlled movement.
• Compatible with IEC 80B14 motor flange, simplifying integration into existing automation systems and ensuring flexibility in motor selection for varying application requirements.
• Compact I11 gear size allows installation in space-constrained applications without compromising on performance or reliability.
• Operational efficiency of 69% delivers reliable power transmission while minimizing energy losses in continuous-duty cycles, supporting cost-effective long-term operations.
• Engineered input shaft diameter of 19 mm allows the use of standard industrial couplings for easy and secure system assembly.
• Brand expertise from Clean-Geartech assures compliance with industry standards, providing long service life and minimal maintenance requirements, even in aggressive environments.
Ideal for use in processing lines, packaging machines, bottling systems, and any application demanding both high hygiene and mechanical strength.
Specifications
IP classification
IP66
Material
Stainless steel AISI 316L
Ratio
64:1
BCD input
100
BCD output
140
Efficiency (%)
69
Gear output shaft (mm)
42
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
I11
Output speed at 1400 RPM
22
Max output torque (Nm)
536
Max kW input at 1400 rpm
1.8
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Foreign trade
HS-Code
84834025
ERP net weight (Kg)
38.50
Country of origin
ITA
