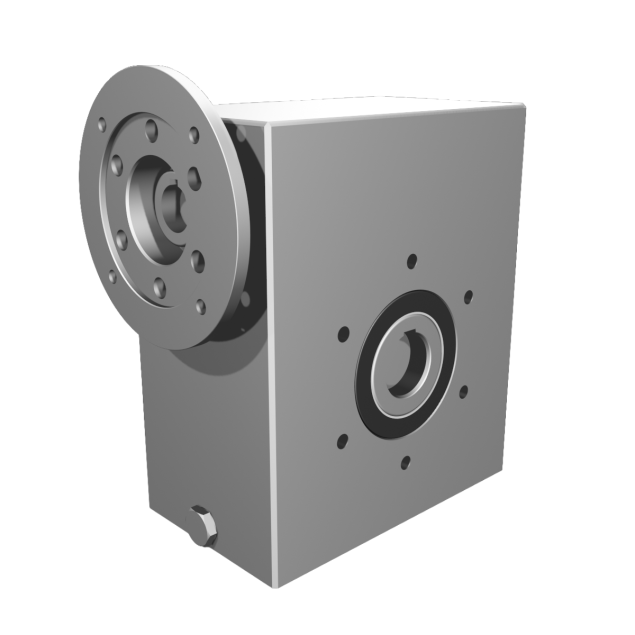

Clean-Geartech VFI I11, worm gear Ø42, 30:1, input 100/112B14, B3, OF320, stainless steel
HV82PI11UNIN060MMINN-UB3ST-OFThe Clean-Geartech VFI I11, worm gear Ø42, 30:1, input 100/112B14, B3, OF320, stainless steel is engineered for industrial drive systems requiring robust SS components. Key attributes include: BCD input: 130 mm, BCD output: 140 mm, Efficiency: 76%, Gear input shaft: 28 mm, Gear material: stainless steel AISI 316L, Gear motor interface: 100/112B14, Gear output shaft: 42 mm, Ratio: 30:1, Gear size: I11. This configuration is designed for environments demanding corrosion resistance and mechanical reliability.
Specifications
Product description
Downloads
€3,389.00
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
38.500000
Material
Stainless steel AISI 316L
Ratio
30:1
BCD input
130
BCD output
140
Efficiency (%)
76
Gear output shaft (mm)
42
Gear input shaft (mm)
28
Gear motor interface
100/112B14
Gear size
I11
Output speed at 1400 RPM
47
Max output torque (Nm)
651
Max kW input at 1400 rpm
4.2
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
**Brand/Manufacturer Description:** Clean-Geartech is a renowned manufacturer specializing in highly durable and corrosion-resistant transmission solutions. Their portfolio is tailored for demanding industrial environments, focusing on hygiene, longevity, and robust engineering with top-tier stainless steel construction.**Key Features, Benefits & Application Possibilities:**
Constructed from AISI 316L stainless steel, ensuring exceptional resistance to corrosion, chemicals, and cleaning agents—ideal for hygienic applications in food, pharmaceutical, and chemical industries.
Worm gear set with a 30:1 ratio offers precise speed reduction and high torque output for demanding motion control and automation tasks.
High efficiency of 76% lowers power consumption and improves overall energy efficiency in production and conveyor systems.
Input shaft diameter of 28 mm and output shaft diameter of 42 mm provide compatibility with a wide range of industrial coupling and drive setups.
Integrated motor interface (100/112B14) allows seamless connection with standard IEC motors, simplifying system integration and reducing installation time.
Compact Gear size I11 is easy to implement in space-constrained setups such as robotic cells, packaging lines, and dosing systems.
Stainless steel hollow output shaft (Ø42 mm) offers flexible installation for both through-shaft and flange-mounted configurations, particularly beneficial in washdown and cleanroom environments.
SKU: Clean-Geartech VFI I11—engineered for heavy duty, continuous operation with minimal maintenance requirements, maximizing uptime in critical processes.
Constructed from AISI 316L stainless steel, ensuring exceptional resistance to corrosion, chemicals, and cleaning agents—ideal for hygienic applications in food, pharmaceutical, and chemical industries.
Worm gear set with a 30:1 ratio offers precise speed reduction and high torque output for demanding motion control and automation tasks.
High efficiency of 76% lowers power consumption and improves overall energy efficiency in production and conveyor systems.
Input shaft diameter of 28 mm and output shaft diameter of 42 mm provide compatibility with a wide range of industrial coupling and drive setups.
Integrated motor interface (100/112B14) allows seamless connection with standard IEC motors, simplifying system integration and reducing installation time.
Compact Gear size I11 is easy to implement in space-constrained setups such as robotic cells, packaging lines, and dosing systems.
Stainless steel hollow output shaft (Ø42 mm) offers flexible installation for both through-shaft and flange-mounted configurations, particularly beneficial in washdown and cleanroom environments.
SKU: Clean-Geartech VFI I11—engineered for heavy duty, continuous operation with minimal maintenance requirements, maximizing uptime in critical processes.
