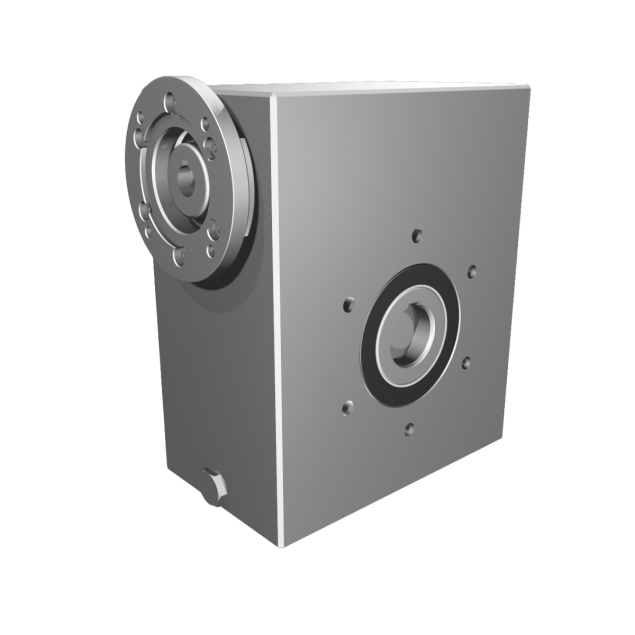

Clean-Geartech VFI I11, worm gear Ø42, 23:1, input 80B14, B3, OF320, stainless steel
HV82PI11UNIN050MMINN-RB3ST-OFThe Clean-Geartech VFI I11, Worm Gearbox Ø42, 23:1, Input 80B14, B3, OF320, Stainless Steel is engineered for industrial applications requiring reliable power transmission. This unit features a BCD input of 100 mm and a BCD output of 140 mm. The gear input shaft diameter is 19 mm, while the output shaft diameter is 42 mm. Constructed with stainless steel AISI 316L gears for enhanced durability and corrosion resistance. The gear motor interface is 80B14, and the gear size is I11. It provides a ratio of 23:1 and delivers 80% efficiency, making it suitable for demanding environments.
Specifications
Product description
Downloads
€3,381.00
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
38.500000
Material
Stainless steel AISI 316L
Ratio
23:1
BCD input
100
BCD output
140
Efficiency (%)
80
Gear output shaft (mm)
42
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
I11
Output speed at 1400 RPM
61
Max output torque (Nm)
515
Max kW input at 1400 rpm
4.1
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
**Brand Description:** Clean-Geartech is renowned for manufacturing precision-engineered stainless steel gearboxes, specializing in applications with demanding requirements for reliability, hygiene, and corrosion resistance. Their solutions are trusted by technical specialists and engineers across diverse industries such as food processing, pharmaceuticals, marine, and chemical sectors.**Key Features, Benefits, and Application Possibilities:**
Stainless Steel (AISI 316L) Gear Housing and Components – Offers exceptional durability and corrosion resistance, perfectly suited for aggressive environments, frequent wash-down applications, and industries requiring high hygiene standards.
Stainless Steel Hollow Output Shaft (Ø42 mm) – Enhances reliability in exposure to water, chemicals, or cleaning agents, ideal for food, pharmaceutical, marine, or outdoor automation.
Worm Gear with 23:1 Ratio – Provides precise speed reduction and high torque transmission; optimal for conveyor systems, mixing plants, dosing equipment, and material handling where controlled motion is critical.
Input Shaft (19 mm, 80B14 Motor Interface) – Compatible with standard IEC electric motors, streamlining integration and reducing installation costs for engineers working with modular automation equipment.
80% Mechanical Efficiency – Ensures improved system performance and energy savings, contributing to lower operating costs and reduced heat generation in continuous-duty applications.
Robust Size I11 Gearbox – Balances compact design with strength, making it suitable for confined installations or retrofitting existing machinery without sacrificing load capacity.
Versatile Mounting (B3, OF320) – Flexible installation options for different machine configurations, supporting both horizontal and vertical mounting requirements encountered in process industry machinery.
Engineered for Longevity – Minimal maintenance needs and reliable operation extend equipment lifecycle, reducing downtime and benefiting environments demanding 24/7 uptime and uncompromising cleanliness.
Stainless Steel (AISI 316L) Gear Housing and Components – Offers exceptional durability and corrosion resistance, perfectly suited for aggressive environments, frequent wash-down applications, and industries requiring high hygiene standards.
Stainless Steel Hollow Output Shaft (Ø42 mm) – Enhances reliability in exposure to water, chemicals, or cleaning agents, ideal for food, pharmaceutical, marine, or outdoor automation.
Worm Gear with 23:1 Ratio – Provides precise speed reduction and high torque transmission; optimal for conveyor systems, mixing plants, dosing equipment, and material handling where controlled motion is critical.
Input Shaft (19 mm, 80B14 Motor Interface) – Compatible with standard IEC electric motors, streamlining integration and reducing installation costs for engineers working with modular automation equipment.
80% Mechanical Efficiency – Ensures improved system performance and energy savings, contributing to lower operating costs and reduced heat generation in continuous-duty applications.
Robust Size I11 Gearbox – Balances compact design with strength, making it suitable for confined installations or retrofitting existing machinery without sacrificing load capacity.
Versatile Mounting (B3, OF320) – Flexible installation options for different machine configurations, supporting both horizontal and vertical mounting requirements encountered in process industry machinery.
Engineered for Longevity – Minimal maintenance needs and reliable operation extend equipment lifecycle, reducing downtime and benefiting environments demanding 24/7 uptime and uncompromising cleanliness.
