Clean Geartech TENV90S-6 IP69K, AC-Motor, B5, 0.75KW, 940RPM, 230/400, Stainless steel

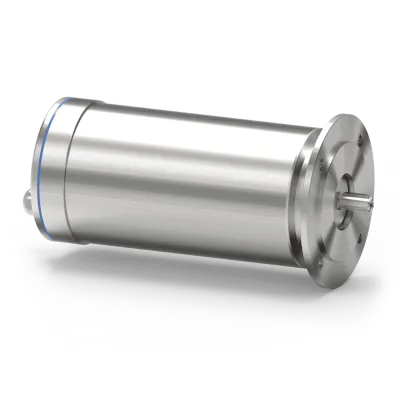

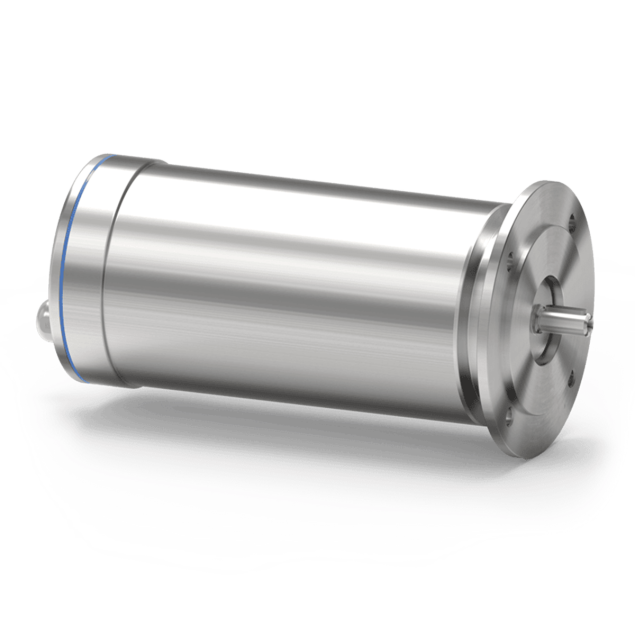

HV82SPMEKH6GTENN4KSA1-N---NNNThe Clean Geartech TENV90S-6 is a robust, low-speed AC motor delivering 0.75 kW at 940 RPM (6-pole, 50 Hz), built in a durable IEC 90S frame. With a B5 full-face flange, this motor ensures precise and secure integration with pumps, gear units, and production machinery where axial alignment is critical.
Its TENV enclosure (Totally Enclosed Non-Ventilated) eliminates internal airflow, ensuring minimal contamination risk in washdown environments. The IP69K-rated stainless steel housing is built for the most demanding sanitation routines, including high-pressure, high-temperature cleaning, making it a preferred choice in food, chemical, and pharmaceutical processing.
Fitted with sealed bearings and insulation class F, it is designed for reliable, continuous-duty operation with minimal maintenance in corrosive or wet conditions.
Ideally suited for slow-running conveyors, mixers, rotary equipment, and washdown zones with high hygiene requirements.
Made to order
Expected shipment:
More Information
Description
Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Stainless steel construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 0.75 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV90S-6
- Power Output: 0.75 kW
- Nominal Torque: 7.6 Nm
- Efficiency Rating: 82.5%
- Starting Current Ratio: 5.7
- Certifications: UL, cURus
