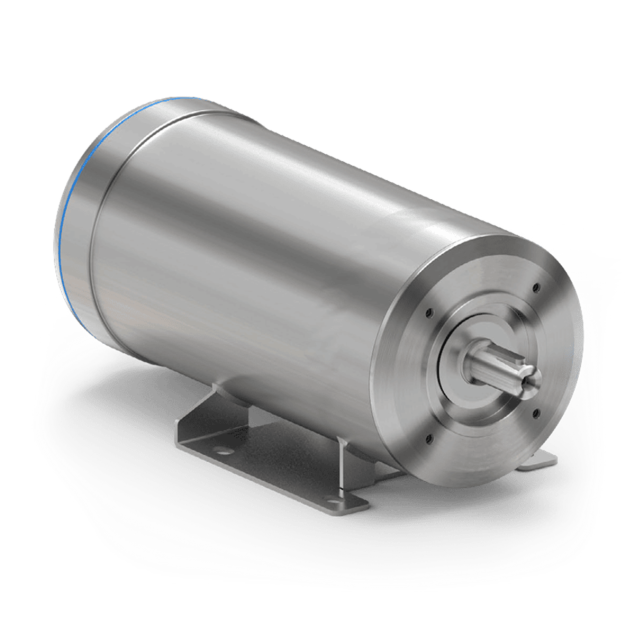

Clean Geartech TENV90S-6 IP69K, AC-Motor, B34, 0.75KW, 940RPM, 230/400, Stainless steel
HV82SPMEKH6PTENN4KSA1-N---NNNThe Clean Geartech TENV90S-6 is a stainless steel, low-speed AC motor engineered for hygienic installations demanding robust washdown protection and dependable torque at reduced speeds. Delivering 0.75 kW at 940 RPM (6-pole, 50 Hz) in an IEC 90 frame, the motor operates on 230/400 V and is designed for continuous-duty performance in wet and corrosive environments.
Featuring a TENV (Totally Enclosed Non-Ventilated) enclosure, the motor eliminates internal airflow, significantly reducing contamination risks. Its IP69K-rated stainless steel housing enables safe operation in applications that require frequent high-pressure, high-temperature cleaning — such as in food processing, dairy, or pharmaceutical systems.
The B34 mounting configuration combines both foot and face flange options, ensuring versatile integration with hygienic gear units, pumps, and equipment where alignment and space efficiency matter. With sealed bearings and insulation class F, this motor ensures long service intervals and stable operation.
A strong solution for conveyors, mixers, and augers where hygiene, low noise, and corrosion resistance are essential.
Made to order
Expected shipment:
More Information
Description
Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Stainless steel construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 0.75 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV90S-6
- Power Output: 0.75 kW
- Nominal Torque: 7.6 Nm
- Efficiency Rating: 82.5%
- Starting Current Ratio: 5.7
- Certifications: UL, cURus
