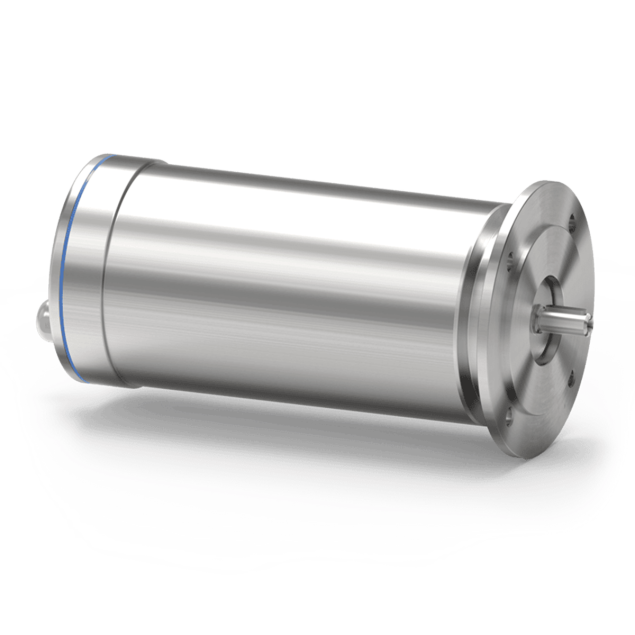

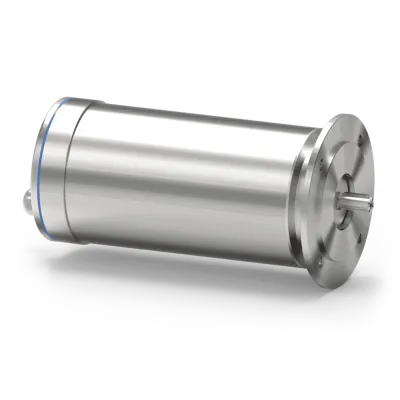

Clean Geartech TENV90L-6 IP69K, AC-Motor, B5, 1.1KW, 950RPM, Stainless steel
HV82SPMEKI6GTENN4KSA1-N---NNNThe Clean Geartech TENV90L-6 is a low-speed, corrosion-resistant stainless steel AC motor designed for hygienic environments requiring stable torque and reliable washdown performance. Delivering 1.1 kW at 950 RPM (6-pole, 50 Hz), this IEC 90L frame motor is ideally suited for continuous-duty operation in food, beverage, and pharmaceutical applications.
The TENV (Totally Enclosed Non-Ventilated) enclosure ensures full sealing without internal airflow, effectively protecting against airborne contaminants. With its IP69K stainless steel housing, the motor withstands frequent high-pressure cleaning, steam exposure, and chemical sanitation.
The B5 face flange enables compact, precise mounting into driven systems such as gear units, agitators, and pumps. Sealed bearings and insulation class F ensure consistent operation in wet, aggressive environments with minimal maintenance requirements.
Ideal for hygienic drive systems where low speed, durability, and cleanliness are key.
Made to order
Expected shipment:
More Information
Description
Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Stainless steel construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 1.1 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV90L-6
- Power Output: 1.1 kW
- Nominal Torque: 11.1 Nm
- Efficiency Rating: 84.5%
- Starting Current Ratio: 6.1
- Certifications: UL, cURus
