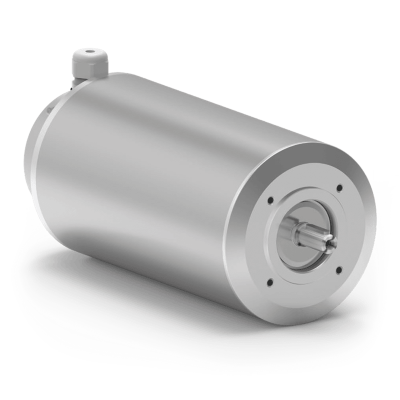

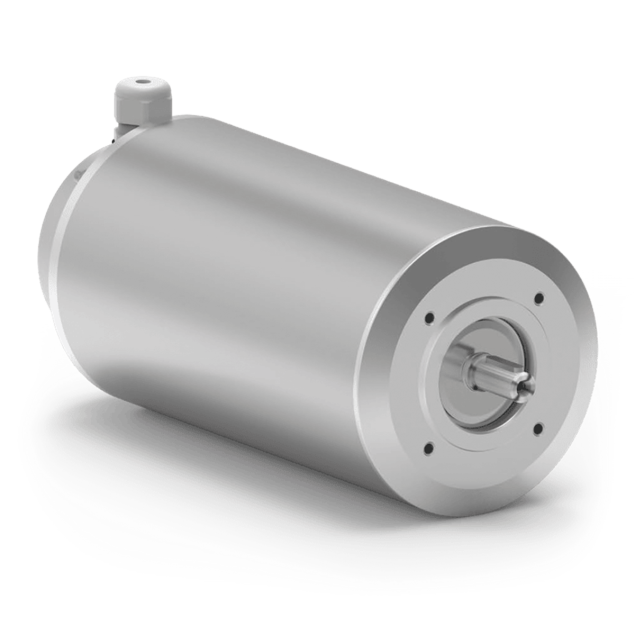

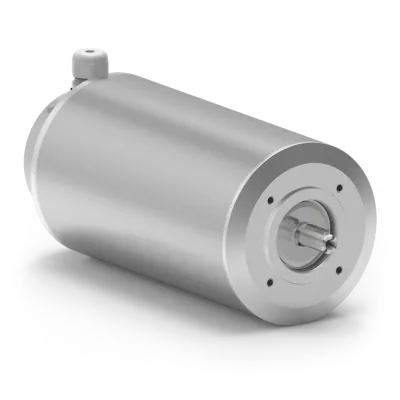

calcPageSize())" />Clean Geartech AC motor TENV90L-4, 1,5kW, 1475RPM, B14, 230/400, Aluminium
HV82APMEKK4JTENN4KCR2-N---NNNThe Clean Geartech TENV90L-4 is a robust 1.5 kW AC motor, crafted in corrosion-resistant aluminium, built for hygienic applications that require stable power and compliance with rigorous washdown standards. Running at 1475 RPM with 4 poles, it delivers a solid 9.75 Nm torque, making it ideal for conveyors, moderate mixing systems, and process equipment demanding reliable mid-speed operation. The IP69K enclosure ensures complete protection against dust, high-pressure water, and steam cleaning, perfectly suited for food, beverage, and pharmaceutical installations. Its Totally Enclosed Non-Ventilated (TENV) cooling system eliminates external airflow, reducing contamination risks and supporting stringent hygiene requirements. Built to the IE4 efficiency class, it provides long-term energy savings and operational sustainability. With a Ø24 mm shaft for IEC 90 frame integration, it seamlessly fits into existing systems. Certified according to UL and cURus standards and equipped with PTO thermal protection, this motor is a reliable, low-maintenance drive solution that safeguards process uptime and quality.
Made to order
Expected shipment:
More Information
Description

Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Aluminium construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 1.5 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV90L-4
- Power Output: 1.5 kW
- Nominal Torque: 9.75 Nm
- Efficiency Rating: 87.9%
- Starting Current Ratio: 9.8
- Certifications: UL, cURus
