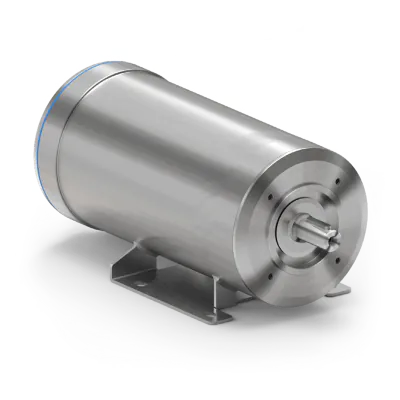

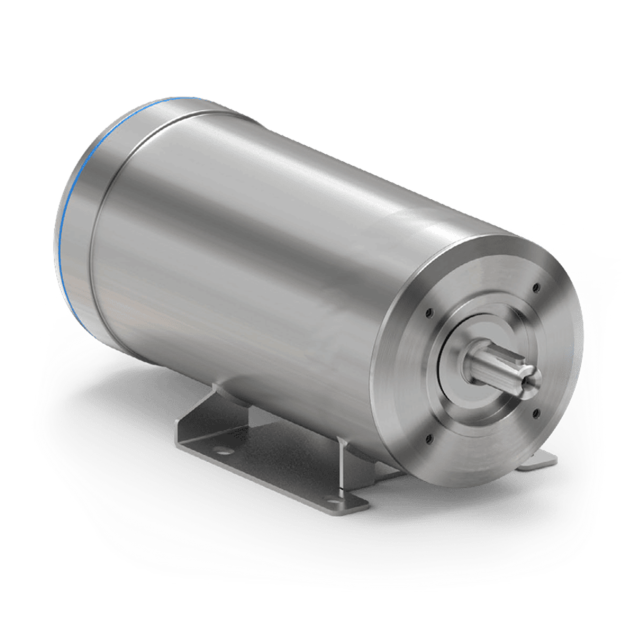

Clean Geartech TENV90L-2 IP69K, AC-Motor, B34, 2.2KW, 2920RPM, Stainless steel
HV82SPMEKL2PTENN4KSA1-N---NNNThe Clean Geartech TENV90L-2 is a robust, hygienic AC motor constructed entirely in stainless steel for use in demanding washdown environments. With a rated output of 2.2 kW and a nominal speed of 2920 RPM (2-pole, 50 Hz), this motor is built on an IEC 90 frame and is suitable for 230/400 V operation.
Its TENV (Totally Enclosed Non-Ventilated) enclosure ensures complete sealing without any external airflow, preventing contamination while offering a compact and low-maintenance drive solution. The smooth, crevice-free design and IP69K protection class enable direct installation in areas exposed to high-pressure, high-temperature cleaning processes — ideal for food processing, pharma, and clean-in-place systems.
The B34 mounting style provides both foot and face mounting options for versatile integration in machine systems. With insulation class F and sealed-for-life bearings, the motor is optimized for long-term reliability in environments with strict hygiene and corrosion resistance requirements.
A strong choice for hygienic conveyors, mixers, pumps, and compact automation lines where cleanliness, compact form factor, and motor durability are essential.
Made to order
Expected shipment:
More Information
Description
Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Stainless steel construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 2.2 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV90L-2
- Power Output: 2.2 kW
- Nominal Torque: 7.2 Nm
- Efficiency Rating: 86.0%
- Starting Current Ratio: 8.5
- Certifications: UL, cURus
