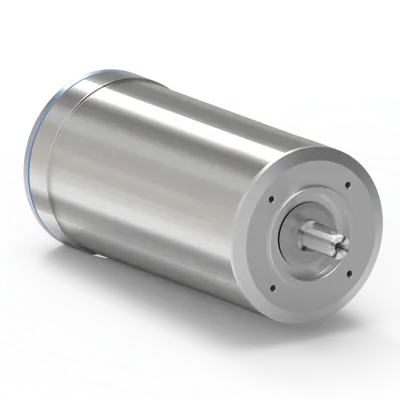

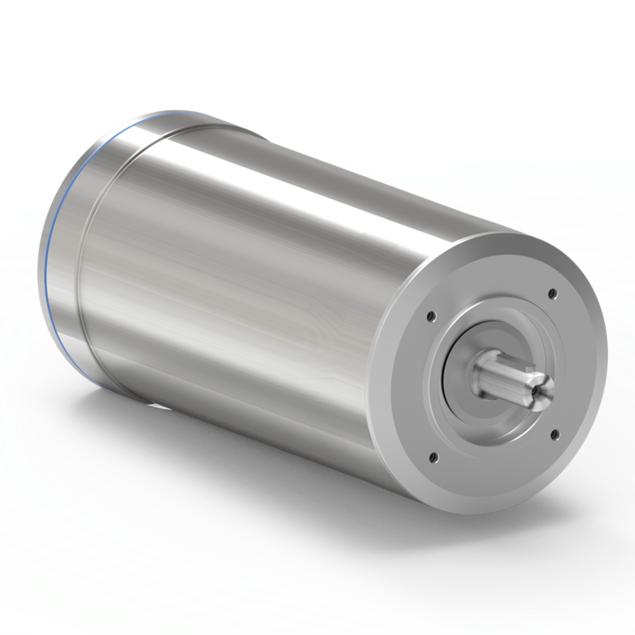

Clean Geartech TENV80B-6 IP69K, AC-Motor, B14, 0.55KW, 900RPM, Stainless steel
HV82SPMDKG6JTENN4KSA1-N---NNNThe Clean Geartech TENV80B-6 is a robust low-speed AC motor designed for hygienic installations where compact flange mounting and washdown resistance are required. With a power output of 0.55 kW at 900 RPM (6-pole, 50 Hz), this IEC 80 frame motor provides smooth and controlled operation in environments where precision and cleanliness are essential.
Built with a TENV (Totally Enclosed Non-Ventilated) enclosure, the motor has no internal airflow, which minimizes contamination risk and makes it ideal for applications with strict hygienic standards. The IP69K stainless steel housing ensures full protection against aggressive, high-pressure cleaning procedures common in the food, beverage, and pharmaceutical industries.
The B14 face flange supports space-saving installations, making it ideal for compact machinery and stainless steel gear units. Sealed bearings and insulation class F guarantee reliability in continuous-duty operation, even under harsh environmental conditions.
A suitable choice for augers, dosing systems, or other low-speed applications in sanitary processing lines.
Made to order
Expected shipment:
More Information
Description
Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Stainless steel construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 0.55 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV80B-6
- Power Output: 0.55 kW
- Nominal Torque: 5.3 Nm
- Efficiency Rating: 78.0%
- Starting Current Ratio: 3.7
- Certifications: UL, cURus
