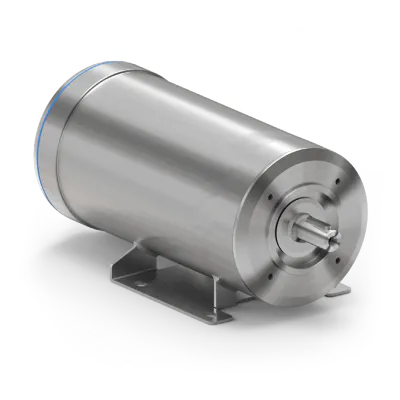

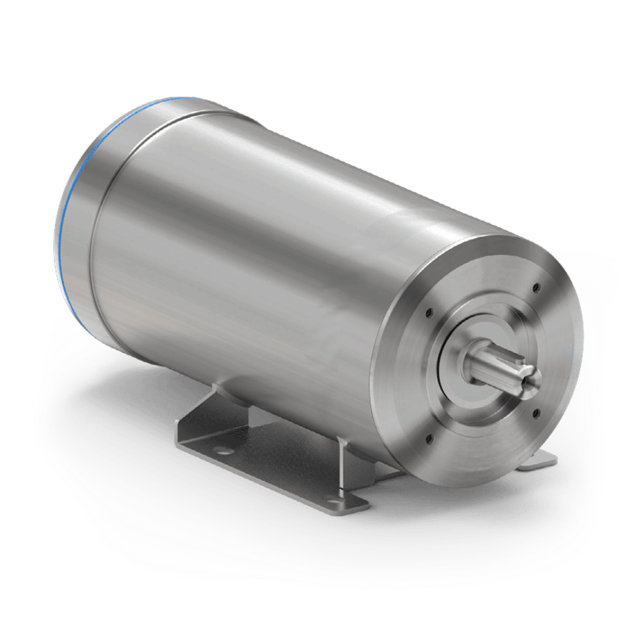

Clean Geartech TENV80B-6 IP69K, AC-Motor, B34, 0.55KW, 900RPM, 230/400, Stainless steel
HV82SPMDKG6PTENN4KSA1-N---NNNThe Clean Geartech TENV80B-6 is a hygienic, low-speed AC motor engineered for uncompromising performance in harsh and washdown-prone environments. Delivering 0.55 kW at 900 RPM (6-pole, 50 Hz) and built in an IEC 80B frame, the motor features a versatile B34 mounting—combining both foot and face flange options for flexible installation.
Its TENV (Totally Enclosed Non-Ventilated) enclosure eliminates airflow through the motor, reducing the risk of airborne contamination in sensitive production areas. The IP69K-rated stainless steel housing resists high-pressure cleaning, steam, and aggressive detergents, making it ideal for the food, beverage, and pharmaceutical industries.
With sealed bearings and insulation class F, the motor is engineered for continuous operation with minimal maintenance under demanding operating conditions.
An optimal solution for slow-running conveyors, augers, rotary tables, and dosing systems requiring corrosion-resistant, hygienic drive power.
Made to order
Expected shipment:
More Information
Description
Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Stainless steel construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 0.55 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV80B-6
- Power Output: 0.55 kW
- Nominal Torque: 5.3 Nm
- Efficiency Rating: 78.0%
- Starting Current Ratio: 3.7
- Certifications: UL, cURus
