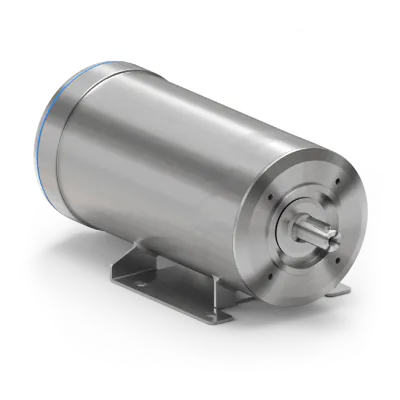

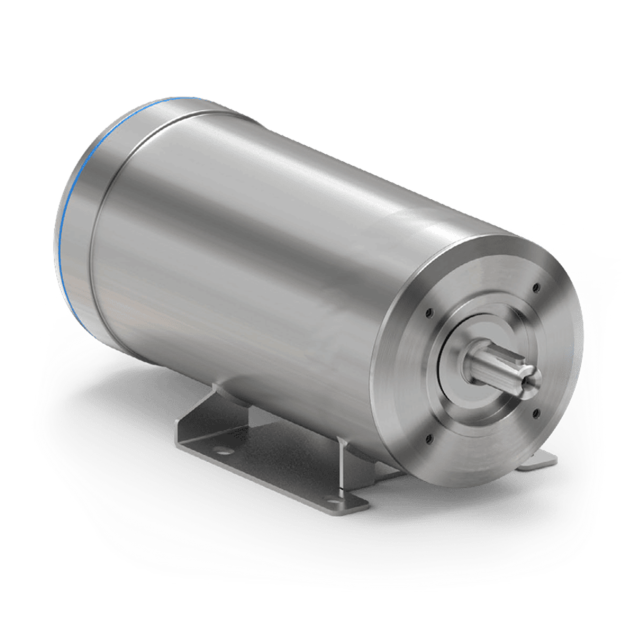

Clean Geartech TENV80A-4 IP69K, AC-Motor, B34, 0.55KW, 1448RPM, 230/400, Stainless steel
HV82SPMDKG4PTENN4KSA1-N---NNNThe Clean Geartech TENV80A-4 is a hygienic AC motor designed for mid-speed performance in demanding washdown environments. Delivering 0.55 kW at 1448 RPM (4-pole, 50 Hz), this IEC 80 frame motor is suitable for 230/400 V operation in continuous-duty systems.
With a TENV (Totally Enclosed Non-Ventilated) construction, the motor is completely sealed, eliminating internal airflow and protecting against contamination. The IP69K stainless steel housing is corrosion-resistant and built for aggressive high-pressure cleaning, making it ideal for food, beverage, and life science industries.
The B34 mounting combines foot and face flange options, allowing versatile installation on hygienic gear units, pumps, or process equipment. F-class insulation and sealed bearings provide long-term durability and reliability, even in harsh operating conditions.
This motor is the right fit where washdown resistance, hygienic compliance, and mounting flexibility are equally critical.
Made to order
Expected shipment:
More Information
Description
Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Stainless steel construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 0.55 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV80A-4
- Power Output: 0.55 kW
- Nominal Torque: 3.66 Nm
- Efficiency Rating: 81.6%
- Starting Current Ratio: 8.2
- Certifications: UL, cURus
