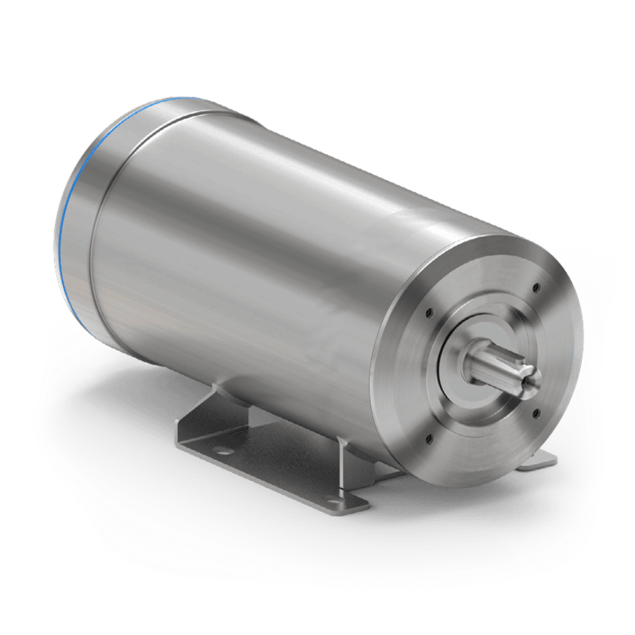

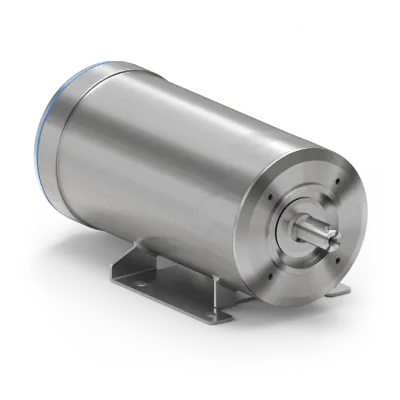

Clean Geartech TENV71B-2 IP69K, AC-Motor, B34, 0.55KW, 2910RPM, 230/400, Stainless steel
HV82SPMCKG2PTENN4KSA1-N---NNNThe Clean Geartech TENV71B-2 is a compact, high-speed AC motor engineered for hygienic installations with space constraints. Delivering 0.55 kW at 2910 RPM (2-pole, 50 Hz), this IEC 71B frame motor supports 230/400 V and is ideal for demanding food, pharma, and washdown applications.
Its TENV (Totally Enclosed Non-Ventilated) design eliminates internal airflow, enhancing resistance to contaminants and moisture. The IP69K stainless steel enclosure resists aggressive cleaning and guarantees hygienic compliance in environments subject to daily high-pressure washdowns.
The versatile B34 mounting combines foot and face flange configurations, providing flexibility for integration into stainless steel gearboxes, pumps, or processing machinery. F-class insulation and sealed bearings ensure reliable operation in continuous-duty systems.
A durable and space-efficient drive solution for high-speed processes where sanitation, chemical resistance, and installation flexibility are essential.
Made to order
Expected shipment:
More Information
Description
Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Stainless steel construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 0.55 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV71B-2
- Power Output: 0.55 kW
- Nominal Torque: 1.85 Nm
- Efficiency Rating: 82.9%
- Starting Current Ratio: 8.9
- Certifications: UL, cURus
