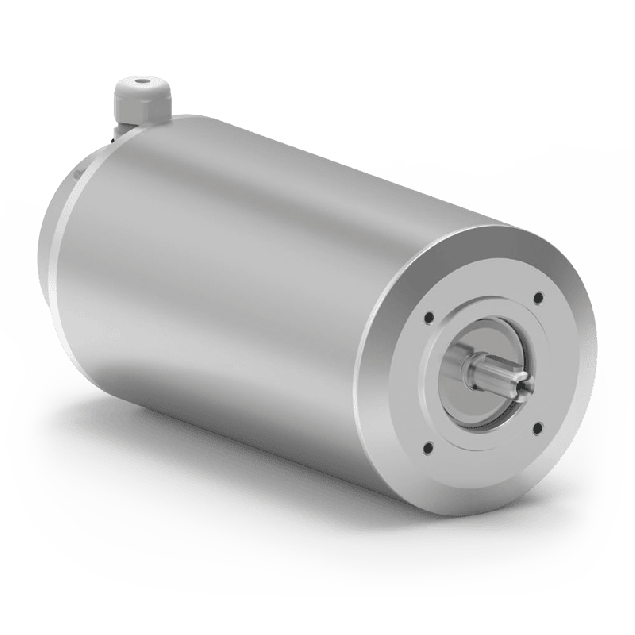

Clean Geartech AC motor TENV71A-4, 0,25kW, 1444RPM, B14, 230/400, , Aluminium
HV82APMCKE4JTENN4KCR2-N---NNNThe Clean Geartech TENV71A-4 AC-Motor, with Model B14, is engineered for environments with stringent hygiene standards, making it ideal for food production and other manufacturing sectors. This robust motor features a Totally Enclosed Non-Ventilated (TENV) design, ensuring it remains protected from contaminants and can withstand rigorous wash-down procedures. Crafted from high-quality aluminium, it is resistant to corrosion and easy to clean.
With a power output of 0.25KW and a speed of 1444RPM, this motor delivers consistent and efficient operation. It is compatible with both 230V and 400V power supplies, offering flexibility for various industrial applications. The B14 flange mounting ensures easy and secure installation.
Made to order
Expected shipment:
More Information
Description
Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Aluminium construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 0.25 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV71A-4
- Power Output: 0.25 kW
- Nominal Torque: 1.66 Nm
- Efficiency Rating: 76.7%
- Starting Current Ratio: 7.2
- Certifications: UL, cURus
