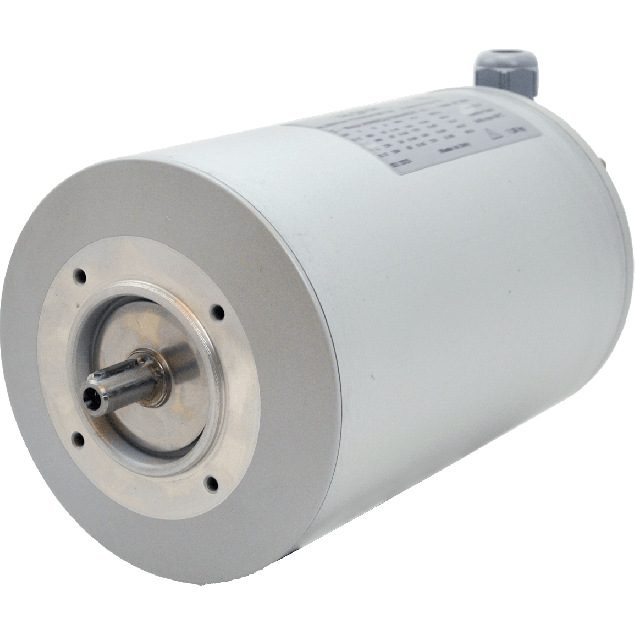

Clean Geartech TENV71A-2 AC-Motor, B14, 0.37KW, 2930RPM, 230/400, Aluminium
HV82APMCKF2JTENN4KCR2-N---NNNReliable and energy-efficient, the Clean Geartech TENV71A-2 AC-Motor, 0.37KW, 2930RPM, 230/400, Aluminium delivers 0.37 kW of power, features an IP 69K enclosure, and operates with IE4 classification.
Made to order
Expected shipment: 24-04-2025
More Information
Description
Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Aluminium construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 0.37 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV71A-2
- Power Output: 0.37 kW
- Nominal Torque: 1.23 Nm
- Efficiency Rating: 82.5%
- Starting Current Ratio: 8.8
- Certifications: UL, cURus
