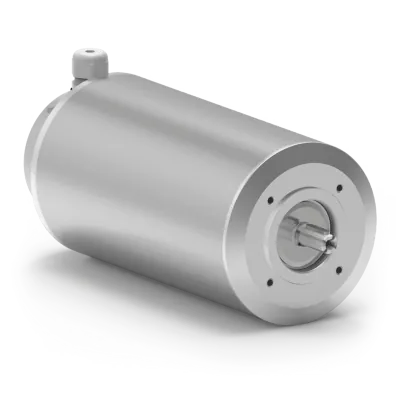

Clean Geartech TENV63B-4 AC-Motor, B14, 0.18KW, 1445RPM, 230/400, Aluminium
HV82APMBKD4JTENN4KCR2-N---NNNThe Clean Geartech TENV63B-4 AC-Motor, 0.18KW, 1445RPM, 230/400, Aluminium is a high-performance AC motor designed for industrial environments, offering 0.18 kW power, Aluminium durability, and IE4 efficiency.
In stock
Expected shipment: 02-04-2025
More Information
Description
Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Aluminium construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 0.18 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV63B-4
- Power Output: 0.18 kW
- Nominal Torque: 1.21 Nm
- Efficiency Rating: 75.7%
- Starting Current Ratio: 6.6
- Certifications: UL, cURus
