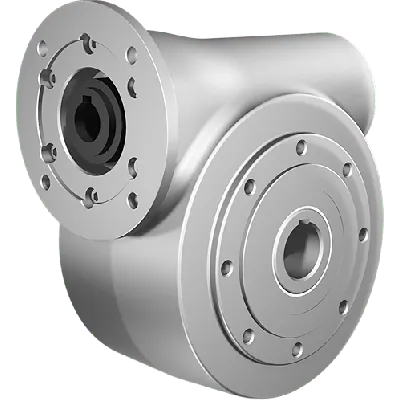

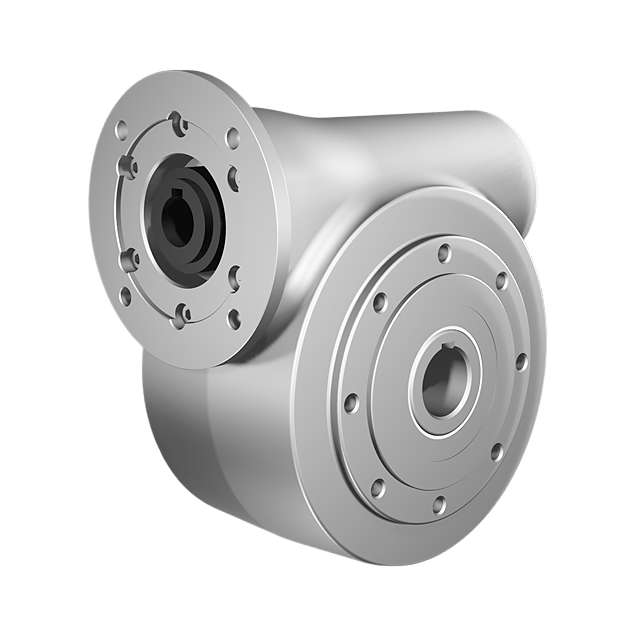

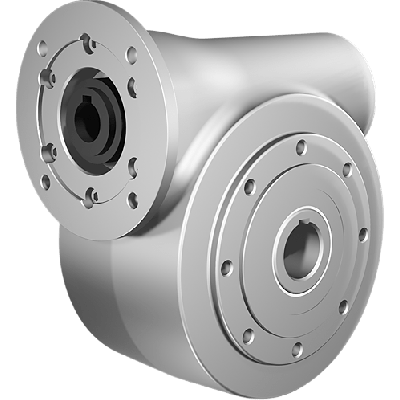

Clean-Geartech N85, worm gear Ø35, 96:1, input 90B14, stainless steel
HV82PN85UNIN120MKINN-TB3-E-OFThis model features a 96:1 gear ratio and a 90B14 gear motor interface. The input shaft diameter is 24 mm, while the output shaft diameter is 35 mm. The gear housing corresponds to size N85.The gear material is stainless steel AISI 316L, ensuring corrosion resistance in harsh environments. With an efficiency of 53%, it delivers reliable transmission. It also supports BCD input of 115 mm and BCD output of 130 mm.
Specifications
Product description
Downloads
€1,995.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
96:1
BCD input
115
BCD output
130
Efficiency (%)
53
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
N85
Output speed at 1400 RPM
14.6
Max output torque (Nm)
242
Max kW input at 1400 rpm
0.7
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Description:Clean-Geartech is a trusted manufacturer of high-performance stainless steel gear solutions designed specifically for demanding industrial environments. Known for durability, hygiene compatibility, and resistance to corrosion, Clean-Geartech products are engineered for industries where precision, safety, and reliability are crucial—including food processing, pharmaceuticals, chemicals, and marine applications.Product Description:The Clean-Geartech N85 worm gearbox is engineered from AISI 316L stainless steel, offering superior strength and corrosion resistance. Designed with a compact N85 housing and optimized for a 90B14 motor input, this 96:1 ratio reducer is a powerful, hygienic, and efficient solution for torque transmission in harsh industrial environments.Key Features and Benefits:
• Constructed from AISI 316L stainless steel for full resistance to corrosive environments—ideal for cleanroom, food, and chemical processing industries.
• SS hollow output shaft Ø35 mm offers high-load torque capability and chemical resistance for industries requiring hygienic transmission systems.
• Gear input shaft Ø24 mm ensures compatibility with standard 90B14 flange motors, simplifying system integration.
• 96:1 gear ratio enables high torque output and slow-speed motion control—essential for conveyor systems, mixers, and automated machinery.
• Interface prepared for IEC 90B14 motors, making electric motor installation straightforward and industry standard–compliant.
• Compact gear size (N85) offers a space-saving design, suitable for limited-space installations without compromising performance.
• High-grade worm gear design with 53% efficiency—optimized for applications where torque is prioritized over energy loss. Application Areas:
• Suitable for high-washdown environments in food and beverage production lines.
• Ideal for pharmaceutical and biotechnology machinery demanding hygienic gear reducers.
• Excellent for marine and offshore mechanical systems due to high salt and moisture resistance.
• Effective in automated conveying, material handling, and filling lines requiring reliable torque solutions. With advanced engineering, premium materials, and proven performance, the Clean-Geartech N85 is tailored for technical specialists and engineers seeking a lasting gearbox solution for specialized environments.
• Constructed from AISI 316L stainless steel for full resistance to corrosive environments—ideal for cleanroom, food, and chemical processing industries.
• SS hollow output shaft Ø35 mm offers high-load torque capability and chemical resistance for industries requiring hygienic transmission systems.
• Gear input shaft Ø24 mm ensures compatibility with standard 90B14 flange motors, simplifying system integration.
• 96:1 gear ratio enables high torque output and slow-speed motion control—essential for conveyor systems, mixers, and automated machinery.
• Interface prepared for IEC 90B14 motors, making electric motor installation straightforward and industry standard–compliant.
• Compact gear size (N85) offers a space-saving design, suitable for limited-space installations without compromising performance.
• High-grade worm gear design with 53% efficiency—optimized for applications where torque is prioritized over energy loss. Application Areas:
• Suitable for high-washdown environments in food and beverage production lines.
• Ideal for pharmaceutical and biotechnology machinery demanding hygienic gear reducers.
• Excellent for marine and offshore mechanical systems due to high salt and moisture resistance.
• Effective in automated conveying, material handling, and filling lines requiring reliable torque solutions. With advanced engineering, premium materials, and proven performance, the Clean-Geartech N85 is tailored for technical specialists and engineers seeking a lasting gearbox solution for specialized environments.
