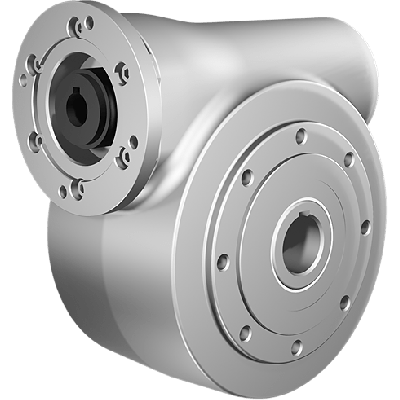

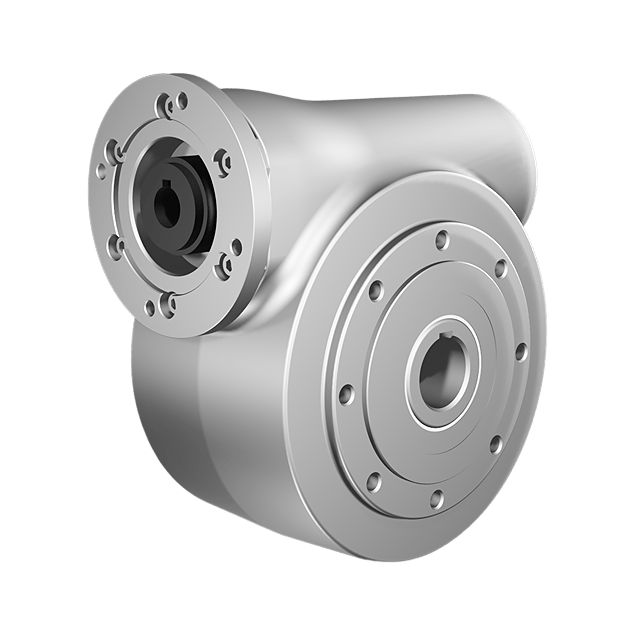

Clean-Geartech N85, worm gear Ø35, 96:1, input 80B14, stainless steel
HV82PN85UNIN120MKINN-RB3-D-OFThe Clean-Geartech N85, worm gearbox Ø35, 96:1, input 80B14, stainless steel is designed for technical applications requiring durability and hygiene. This unit features a BCD input of 100 mm, BCD output of 130 mm, and a gear input shaft diameter of 19 mm. The gear output shaft diameter is 35 mm. The gearbox delivers a transmission ratio of 96:1 with 53% efficiency. The gear motor interface is 80B14 and gear size is N85. Constructed from stainless steel AISI 316L, this solution is suitable for demanding environments.
Specifications
Product description
Downloads
€1,991.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
12.800000
Material
Stainless steel AISI 316L
Ratio
96:1
BCD input
100
BCD output
130
Efficiency (%)
53
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
N85
Output speed at 1400 RPM
14.6
Max output torque (Nm)
242
Max kW input at 1400 rpm
0.7
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a trusted European manufacturer specializing in high-performance, corrosion-resistant gear units tailored for demanding industrial environments. Known for its precision engineering and use of premium materials, Clean-Geartech's products are reliable choices for food processing, pharmaceutical, marine and other hygienically sensitive or wet area applications.Unlock superior durability and hygiene performance with the Clean-Geartech N85 stainless steel worm gear. Designed for technical specialists and engineers across multiple industries, this unit is built using AISI 316L stainless steel to meet strict sanitary and mechanical demands.Key Features, Benefits, and Potential Applications:
• High-grade AISI 316L stainless steel housing: Ensures maximum corrosion resistance, making it ideal for washdown environments and applications requiring strict hygiene such as food production or pharmaceutical processing.
• Stainless steel Ø35 mm output shaft: Offers enhanced mechanical strength and resistance to oxidation and wear in aggressive environments, ideal for marine, offshore, and chemical industries.
• Compatible with IEC 80B14 motor interface: Ensures easy integration with standardised motor systems, reducing installation time and enabling system compatibility for automation and process lines.
• Worm gear ratio of 96:1: Provides high torque output with a compact design, suitable for low-speed, high-torque machinery like conveyors, mixers, and dosing systems.
• Input shaft diameter 19 mm: Allows straightforward coupling with standard motor configurations, supporting modular mechanical drives.
• Gear size N85 with robust construction: Optimized for medium-load industrial applications where reliability and longevity are essential.
• Efficiency rating of 53%: Tailored for duty cycles where sustained high torque matters more than energy efficiency, such as lifting gear, hoists, and material handling.This gear reducer delivers precise torque output and dependability in dirt-prone, wet or chemically aggressive environments, where conventional gear units are prone to degradation. The Clean-Geartech N85 is your dependable choice for challenging industrial applications.
• High-grade AISI 316L stainless steel housing: Ensures maximum corrosion resistance, making it ideal for washdown environments and applications requiring strict hygiene such as food production or pharmaceutical processing.
• Stainless steel Ø35 mm output shaft: Offers enhanced mechanical strength and resistance to oxidation and wear in aggressive environments, ideal for marine, offshore, and chemical industries.
• Compatible with IEC 80B14 motor interface: Ensures easy integration with standardised motor systems, reducing installation time and enabling system compatibility for automation and process lines.
• Worm gear ratio of 96:1: Provides high torque output with a compact design, suitable for low-speed, high-torque machinery like conveyors, mixers, and dosing systems.
• Input shaft diameter 19 mm: Allows straightforward coupling with standard motor configurations, supporting modular mechanical drives.
• Gear size N85 with robust construction: Optimized for medium-load industrial applications where reliability and longevity are essential.
• Efficiency rating of 53%: Tailored for duty cycles where sustained high torque matters more than energy efficiency, such as lifting gear, hoists, and material handling.This gear reducer delivers precise torque output and dependability in dirt-prone, wet or chemically aggressive environments, where conventional gear units are prone to degradation. The Clean-Geartech N85 is your dependable choice for challenging industrial applications.
