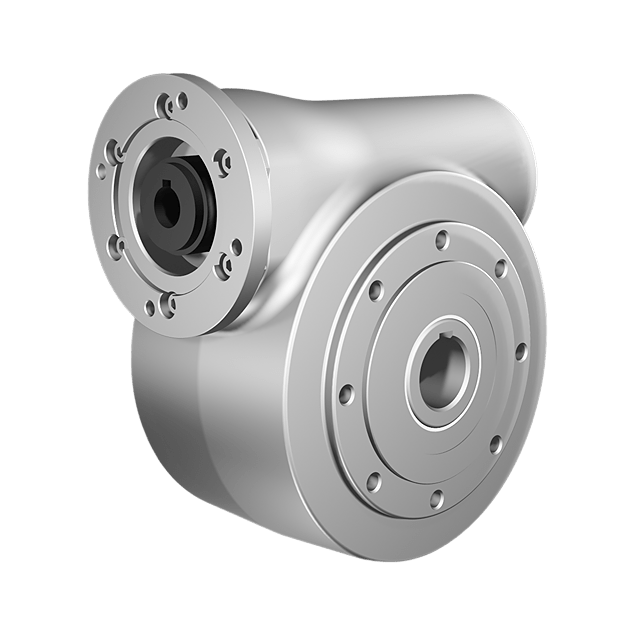

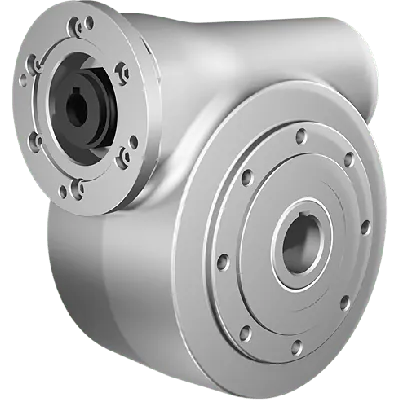

Clean-Geartech N85, worm gear Ø35, 74:1, input 80B14, stainless steel
HV82PN85UNIN110MKINN-RB3-D-OFIt features a BCD input of 100 and a BCD output of 130. The gear ratio is 74:1, ensuring torque multiplication for low-speed motion control. It comes with a gear input shaft diameter of 19 mm and a gear output shaft diameter of 35 mm. The gear size is N85 and it uses a gear motor interface of 80B14 for standardized motor connection.For harsh environments, the unit is built with a gear material of stainless steel AISI 316L. The efficiency is 58%, aligning with typical performance for stainless steel worm gear designs.
Specifications
Product description
Downloads
€1,991.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
74:1
BCD input
100
BCD output
130
Efficiency (%)
58
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
N85
Output speed at 1400 RPM
18.9
Max output torque (Nm)
268
Max kW input at 1400 rpm
0.91
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Product: Clean-Geartech N85 Worm Gearbox, Ø35 mm output, 74:1 ratio, input 80B14, Stainless SteelKey Features, Advantages & Use Cases:
• Manufactured from AISI 316L stainless steel, the worm gearbox housing ensures superior corrosion resistance and durability—ideal for washdown environments in the food and pharmaceutical industries.
• High-torque output with a gear ratio of 74:1 enables slow-speed, high-torque operations—suitable for conveyors, mixers, and dosing equipment where load stability is critical.
• SS (stainless steel) 35 mm output shaft enhances corrosion protection at one of the unit’s most exposed points, increasing reliability in wet or chemical-laden production settings.
• SS input hollow shaft of 19 mm ensures robust drivetrain integration with added resilience in aggressive environments.
• 80B14 flange motor interface permits seamless integration with IEC standard motors, facilitating easy motor-gear coupling for modular machinery architectures.
• Compact N85 frame size makes the gearbox ideal for installations where space is limited but mechanical integrity is crucial.
• 58% mechanical efficiency supports energy-conscious system design where loss minimization remains key, especially in continuous duty cycles (S1 mode).
• Stainless steel composition ensures compliance with hygienic design standards (EHEDG-compatible), making it ideal for direct processing zone installations.
• Designed for vertical and horizontal mounting options, allowing versatile application—from packaging lines to lifting mechanisms in corrosive environments.
• The precision manufacturing standard of Clean-Geartech ensures long service life, low backlash, and quiet operation, reducing maintenance frequency and downtime in automation systems.
• Manufactured from AISI 316L stainless steel, the worm gearbox housing ensures superior corrosion resistance and durability—ideal for washdown environments in the food and pharmaceutical industries.
• High-torque output with a gear ratio of 74:1 enables slow-speed, high-torque operations—suitable for conveyors, mixers, and dosing equipment where load stability is critical.
• SS (stainless steel) 35 mm output shaft enhances corrosion protection at one of the unit’s most exposed points, increasing reliability in wet or chemical-laden production settings.
• SS input hollow shaft of 19 mm ensures robust drivetrain integration with added resilience in aggressive environments.
• 80B14 flange motor interface permits seamless integration with IEC standard motors, facilitating easy motor-gear coupling for modular machinery architectures.
• Compact N85 frame size makes the gearbox ideal for installations where space is limited but mechanical integrity is crucial.
• 58% mechanical efficiency supports energy-conscious system design where loss minimization remains key, especially in continuous duty cycles (S1 mode).
• Stainless steel composition ensures compliance with hygienic design standards (EHEDG-compatible), making it ideal for direct processing zone installations.
• Designed for vertical and horizontal mounting options, allowing versatile application—from packaging lines to lifting mechanisms in corrosive environments.
• The precision manufacturing standard of Clean-Geartech ensures long service life, low backlash, and quiet operation, reducing maintenance frequency and downtime in automation systems.
