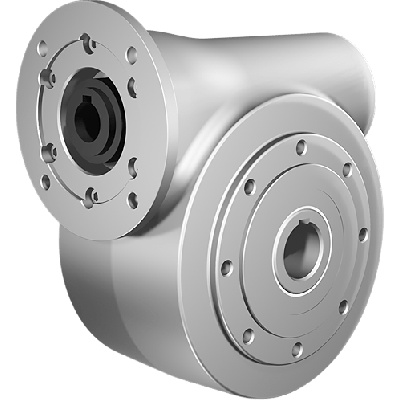

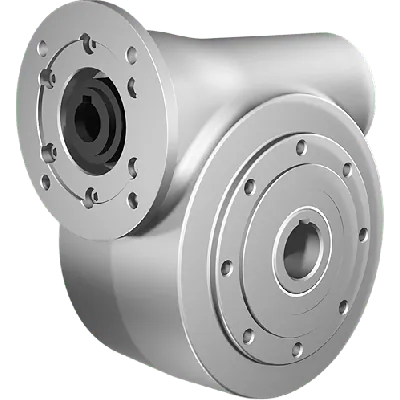

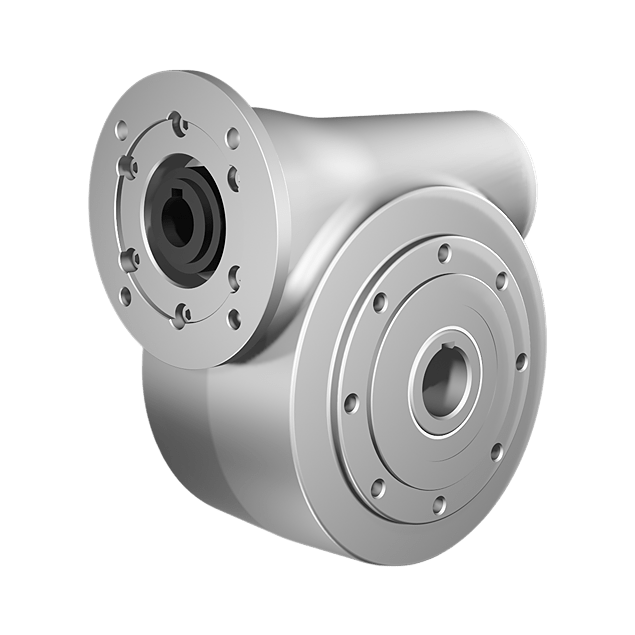

Clean-Geartech N85, worm gear Ø35, 7:1, input 90B14, stainless steel
HV82PN85UNIN010MKINN-TB3-E-OFThis unit features a gear ratio of 7:1 and an efficiency of 88%. The gear size is N85, with a gear input shaft diameter of 24 mm and a gear output shaft diameter of 35 mm. It interfaces with a 90B14 gear motor.The gear mechanism is manufactured from stainless steel AISI 316L, ensuring durability in harsh environments. The BCD input is 115 mm, and the BCD output is 130 mm. This configuration is suitable for applications requiring a compact and hygienic drive solution.
Specifications
Product description
Downloads
€1,995.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
7:1
BCD input
115
BCD output
130
Efficiency (%)
88
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
N85
Output speed at 1400 RPM
200
Max output torque (Nm)
257
Max kW input at 1400 rpm
6.1
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufactured by Clean-Geartech, a premium European brand recognized for its corrosion-resistant power transmission solutions, the N85 worm gearbox is designed for demanding industrial environments requiring hygienic, efficient, and durable motion control systems. Clean-Geartech specializes in stainless steel drive technology for sectors such as food processing, chemical engineering, and pharmaceutical manufacturing.Main Features and Application Benefits:
Made from high-grade stainless steel AISI 316L, ensuring superior corrosion resistance in harsh chemical, washdown, and saline environments such as food & beverage or marine industries.
The gearbox achieves an efficiency of 88%, making it highly suitable for continuous-duty applications where power conservation and performance optimization are essential.
Equipped with a Ø35 mm stainless steel output shaft providing durable torque transmission and resistance against mechanical wear. Ideal for conveyors, mixers, and rotational actuators.
Gear input shaft Ø24 mm supports precise torque input, compatible with a wide range of standard motor couplings. Ensures easy integration into automated systems.
Geared with a 7:1 reduction ratio, the N85 model is perfect for applications requiring high torque and controlled speed, such as dosing pumps and lifting devices.
The 90B14 motor interface allows for simple and standardized motor mounting, reducing installation time and ensuring compatibility with IEC-compliant motors.
Compact design in size N85 provides space-efficient integration in constrained technical layouts, beneficial in machinery with limited housing dimensions.
All external components, including the output shaft, are made of SS (stainless steel), ensuring full washdown compatibility and long service life in CIP (clean-in-place) environments.
Ideal for use in hygienic sectors—food, pharmaceutical, and biotech—as well as for outdoor or offshore applications exposed to aggressive agents.
Backlash-free transmission design supports precision-driven systems such as servo-controlled packaging lines and automated bottling systems.Choose Clean-Geartech N85 for your high-demand applications requiring stainless steel reliability and technical excellence.
Made from high-grade stainless steel AISI 316L, ensuring superior corrosion resistance in harsh chemical, washdown, and saline environments such as food & beverage or marine industries.
The gearbox achieves an efficiency of 88%, making it highly suitable for continuous-duty applications where power conservation and performance optimization are essential.
Equipped with a Ø35 mm stainless steel output shaft providing durable torque transmission and resistance against mechanical wear. Ideal for conveyors, mixers, and rotational actuators.
Gear input shaft Ø24 mm supports precise torque input, compatible with a wide range of standard motor couplings. Ensures easy integration into automated systems.
Geared with a 7:1 reduction ratio, the N85 model is perfect for applications requiring high torque and controlled speed, such as dosing pumps and lifting devices.
The 90B14 motor interface allows for simple and standardized motor mounting, reducing installation time and ensuring compatibility with IEC-compliant motors.
Compact design in size N85 provides space-efficient integration in constrained technical layouts, beneficial in machinery with limited housing dimensions.
All external components, including the output shaft, are made of SS (stainless steel), ensuring full washdown compatibility and long service life in CIP (clean-in-place) environments.
Ideal for use in hygienic sectors—food, pharmaceutical, and biotech—as well as for outdoor or offshore applications exposed to aggressive agents.
Backlash-free transmission design supports precision-driven systems such as servo-controlled packaging lines and automated bottling systems.Choose Clean-Geartech N85 for your high-demand applications requiring stainless steel reliability and technical excellence.
