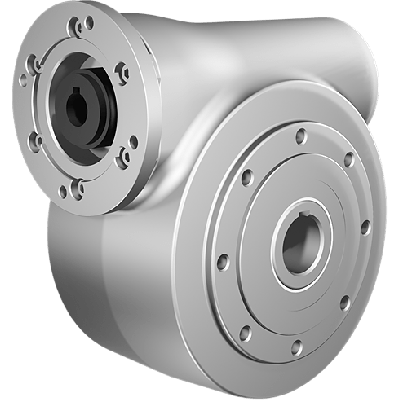

Clean-Geartech N85, worm gear Ø35, 7:1, input 80B14, stainless steel
HV82PN85UNIN010MKINN-RB3-D-OFThe Clean-Geartech N85, worm gear Ø35, 7:1, input 80B14, stainless steel is engineered for demanding environments requiring durability and hygiene. Featuring a gear size N85 and a 7:1 ratio, it delivers reliable torque conversion. The input shaft diameter is 19 mm, while the output shaft measures 35 mm, ensuring compatibility with standard drive systems. The BCD input is 100 mm and the BCD output is 130 mm. It includes a gear motor interface 80B14 and provides an efficiency of 88%. Constructed with stainless steel AISI 316L gears, it is suitable for hygienic and corrosive environments.
Specifications
Product description
Downloads
€1,991.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
7:1
BCD input
100
BCD output
130
Efficiency (%)
88
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
N85
Output speed at 1400 RPM
200
Max output torque (Nm)
257
Max kW input at 1400 rpm
6.1
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Overview:Clean-Geartech is a leading manufacturer of high-performance gear units designed for industries with strict hygiene and corrosion-resistance requirements. Renowned for their use of premium AISI 316L stainless steel and their commitment to durability, reliability, and easy maintenance, Clean-Geartech gearboxes are the trusted choice of engineers and technical specialists across the food processing, pharmaceutical, and chemical industries.Key Features, Benefits, and Application Insights:
• Full stainless steel housing (AISI 316L) ensures maximum corrosion resistance, making it ideal for aggressive environments and frequent washdown applications in food, beverage, and pharmaceutical industries.
• Hollow output shaft Ø35 mm in stainless steel (SS) allows for seamless integration with a wide range of output assemblies, ensuring torque delivery is stable and contamination-free.
• Worm gear ratio of 7:1 offers significant torque multiplication, suited for applications requiring high reduction and low operational speed, such as conveyors, mixers, and packaging systems.
• Input shaft diameter Ø19 mm provides compatibility with a range of standard IEC motor connections for easy system integration and high reliability.
• Gear interface 80B14 enables quick coupling with standard motor flanges, reducing downtime during maintenance and facilitating modular designs.
• High mechanical efficiency of 88% reduces energy loss, resulting in lower heat generation, improved performance, and reduced operational costs in continuous duty applications.
• Compact design (Gear size N85) minimizes installation footprint, ideal for equipment with limited space where performance and hygiene are still critical.
• Engineered for low maintenance requirements, leveraging the anti-stick properties of stainless steel and internally optimized mechanics for long service life.Optimal for demanding industrial environments where both mechanical performance and compliance with hygiene standards are paramount, the Clean-Geartech N85 worm gearbox delivers reliable, efficient power transmission with robust, all-stainless steel construction.
• Full stainless steel housing (AISI 316L) ensures maximum corrosion resistance, making it ideal for aggressive environments and frequent washdown applications in food, beverage, and pharmaceutical industries.
• Hollow output shaft Ø35 mm in stainless steel (SS) allows for seamless integration with a wide range of output assemblies, ensuring torque delivery is stable and contamination-free.
• Worm gear ratio of 7:1 offers significant torque multiplication, suited for applications requiring high reduction and low operational speed, such as conveyors, mixers, and packaging systems.
• Input shaft diameter Ø19 mm provides compatibility with a range of standard IEC motor connections for easy system integration and high reliability.
• Gear interface 80B14 enables quick coupling with standard motor flanges, reducing downtime during maintenance and facilitating modular designs.
• High mechanical efficiency of 88% reduces energy loss, resulting in lower heat generation, improved performance, and reduced operational costs in continuous duty applications.
• Compact design (Gear size N85) minimizes installation footprint, ideal for equipment with limited space where performance and hygiene are still critical.
• Engineered for low maintenance requirements, leveraging the anti-stick properties of stainless steel and internally optimized mechanics for long service life.Optimal for demanding industrial environments where both mechanical performance and compliance with hygiene standards are paramount, the Clean-Geartech N85 worm gearbox delivers reliable, efficient power transmission with robust, all-stainless steel construction.
