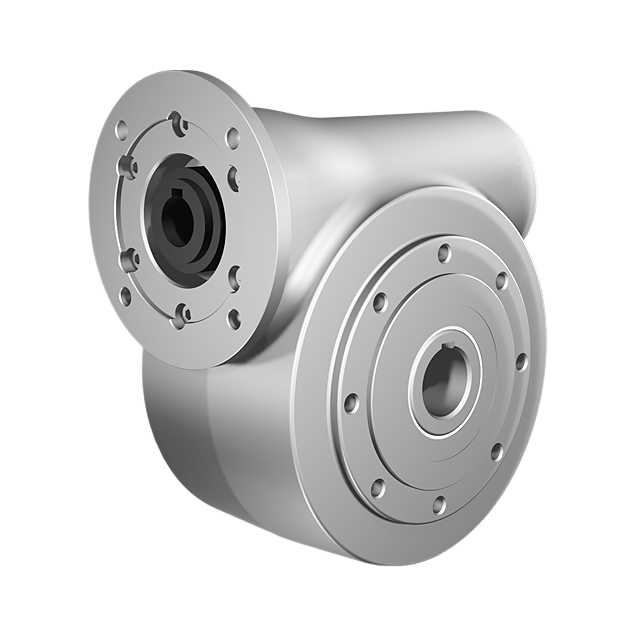

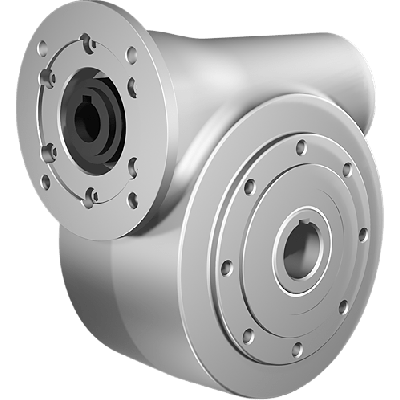

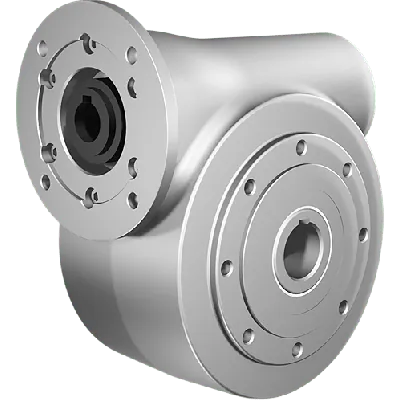

Clean-Geartech N85, worm gear Ø35, 67:1, input 90B14, stainless steel
HV82PN85UNIN100MKINN-TB3-E-OFThe Clean-Geartech N85 Worm Gearbox Ø35, 67:1, input 90B14, Stainless Steel offers key features for demanding technical environments. It has a BCD input of 115 mm and a BCD output of 130 mm. The gear ratio is 67:1 and the efficiency is 65%. The gear input shaft measures 24 mm, while the gear output shaft is 35 mm. Built for durability, the gear material is stainless steel AISI 316L. The gear motor interface is 90B14 and the gearbox size is N85. Suitable for environments with high demands on material quality and hygiene.
Specifications
Product description
Downloads
€1,995.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
12.800000
Material
Stainless steel AISI 316L
Ratio
67:1
BCD input
115
BCD output
130
Efficiency (%)
65
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
N85
Output speed at 1400 RPM
21
Max output torque (Nm)
289
Max kW input at 1400 rpm
0.97
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Description: Clean-Geartech is a high-quality manufacturer specializing in hygienic and corrosion-resistant gear units designed for demanding industrial applications. Their gearboxes are engineered from premium-grade stainless steel, ensuring both durability and optimal cleanliness – ideal for use in food, chemical, and pharmaceutical environments where hygiene and resistance are critical.Product Description and Key Features:
• Gear housing made from high-grade stainless steel AISI 316L offers superior resistance to corrosion, making it ideal for harsh industrial and washdown environments.
• High torque output enabled by a robust 67:1 worm gear ratio, suitable for applications requiring precise speed reduction and high mechanical advantage.
• Stainless steel Ø35 mm output shaft provides strength and exceptional corrosion resistance under high loads and continuous operation.
• Input shaft Ø24 mm effectively matched to 90B14 motor interface, ensuring compatibility with a wide range of IEC-standard motors for easy integration into existing systems.
• BCD input 115 mm and BCD output 130 mm allow flexible mounting options in complex or constrained assemblies, enhancing system design versatility for engineers.
• Gear size N85 optimally balances torque output and spatial requirements, making it well-suited for compact machinery or systems with tight installation spaces.
• Gear efficiency of 65% supports energy-conscious operations without compromising torque performance – ideal for regulated energy applications or long-duty cycles.
• Fully enclosed stainless steel design minimizes risk of contamination and allows for frequent high-pressure washdowns, aligning with HACCP and EHEDG standards. Applications:
• Food and beverage processing equipment requiring absolute hygiene and frequent sanitation cycles.
• Pharmaceutical manufacturing systems where sterile environments are essential.
• Offshore or marine installations where saltwater corrosion protection is mandatory.
• Chemical processing systems handling aggressive media or corrosive atmospheres.
• Packaging machinery in cleanroom environments demanding non-corrosive, easy-to-maintain components.
• Gear housing made from high-grade stainless steel AISI 316L offers superior resistance to corrosion, making it ideal for harsh industrial and washdown environments.
• High torque output enabled by a robust 67:1 worm gear ratio, suitable for applications requiring precise speed reduction and high mechanical advantage.
• Stainless steel Ø35 mm output shaft provides strength and exceptional corrosion resistance under high loads and continuous operation.
• Input shaft Ø24 mm effectively matched to 90B14 motor interface, ensuring compatibility with a wide range of IEC-standard motors for easy integration into existing systems.
• BCD input 115 mm and BCD output 130 mm allow flexible mounting options in complex or constrained assemblies, enhancing system design versatility for engineers.
• Gear size N85 optimally balances torque output and spatial requirements, making it well-suited for compact machinery or systems with tight installation spaces.
• Gear efficiency of 65% supports energy-conscious operations without compromising torque performance – ideal for regulated energy applications or long-duty cycles.
• Fully enclosed stainless steel design minimizes risk of contamination and allows for frequent high-pressure washdowns, aligning with HACCP and EHEDG standards. Applications:
• Food and beverage processing equipment requiring absolute hygiene and frequent sanitation cycles.
• Pharmaceutical manufacturing systems where sterile environments are essential.
• Offshore or marine installations where saltwater corrosion protection is mandatory.
• Chemical processing systems handling aggressive media or corrosive atmospheres.
• Packaging machinery in cleanroom environments demanding non-corrosive, easy-to-maintain components.
