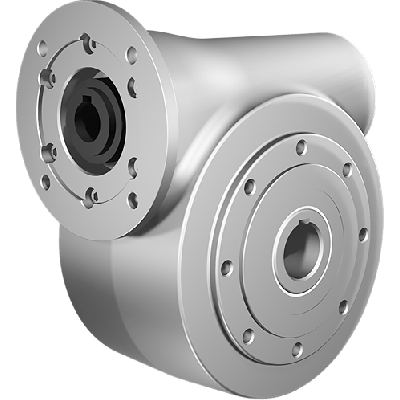

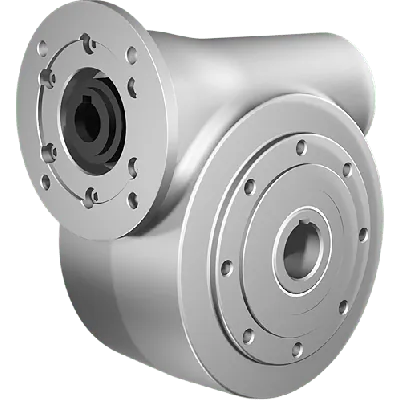

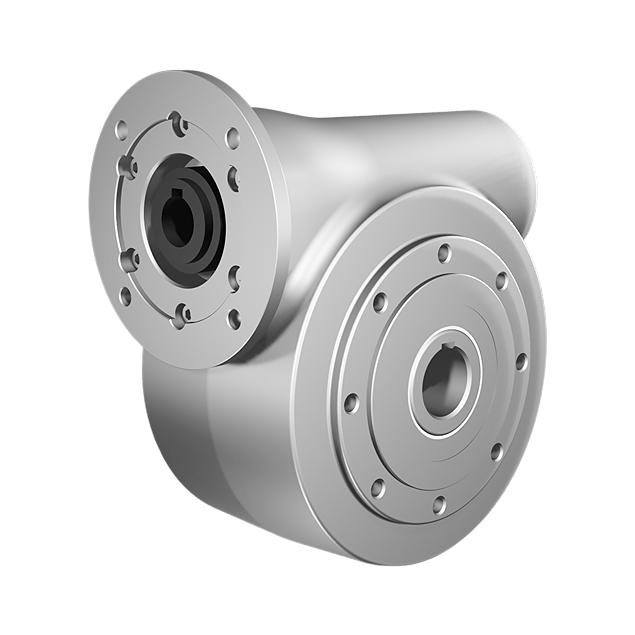

Clean-Geartech N85, worm gear Ø35, 52:1, input 90B14, stainless steel
HV82PN85UNIN090MKINN-TB3-E-OFFeaturing a gear size of N85 and a ratio of 52:1, it delivers effective speed reduction. The gear output shaft diameter is 35 mm, while the gear input shaft diameter is 24 mm. The gear motor interface conforms to 90B14 specifications for compatibility with standard motor solutions.With a BCD input of 115 mm and a BCD output of 130 mm, it supports secure mounting configurations. Constructed with stainless steel AISI 316L gear components, it provides high resistance to aggressive environments. The unit operates at an efficiency of 66%.
Specifications
Product description
Downloads
€1,995.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
52:1
BCD input
115
BCD output
130
Efficiency (%)
66
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
N85
Output speed at 1400 RPM
27
Max output torque (Nm)
289
Max kW input at 1400 rpm
1.2
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Description: Clean-Geartech is a renowned manufacturer specializing in high-performance gear solutions made from premium materials. With a strong focus on hygiene, corrosion resistance, and operational reliability, Clean-Geartech serves demanding industrial sectors such as food processing, pharmaceuticals, and chemical engineering. All gear units are engineered for optimal durability and performance under rigorous conditions.Key Features and Application Possibilities:
• Constructed entirely from AISI 316L stainless steel, the Clean-Geartech N85 worm gear is ideal for aggressive or hygienic environments, including food-grade, marine, or pharmaceutical applications.
• High reduction ratio of 52:1 allows precise control of output speed and torque, making it suitable for slow-speed, high-torque operations such as conveyors, agitators, or process equipment.
• The high-durability Ø35 mm output shaft provides robust mechanical coupling for demanding loads, ensuring long-term stability and reliability in dynamic systems.
• Gear input shaft diameter of 24 mm is compatible with a broad range of motor types, simplifying integration into existing systems.
• Compatible with IEC B14 motor flange size 90B14 for easy direct mounting of standard electric motors, minimizing installation time and complexity.
• BCD input of 115 mm and BCD output of 130 mm allows standardized mounting with aligned torque transmission and mechanical stability.
• Efficiency of 66% provides a good balance between torque output and energy consumption, particularly important in continuous or semi-continuous industrial operations.
• Stainless steel hollow-shaft option (if configured) offers additional corrosion resistance and easy washdown for hygienic applications.
• Compact gear size N85 allows installation in space-limited machinery or retrofit systems that require durable yet compact power transmission solutions.
• Precision-engineered worm gearing reduces vibration and noise, making it optimal for sensitive environments where mechanical noise must be minimized.The Clean-Geartech N85 worm gearbox is designed for technical specialists and engineers requiring a rugged, hygienic, and reliable drive solution. Its stainless steel construction and modular interface deliver maximum adaptability and long service life in critical industrial operations.
• Constructed entirely from AISI 316L stainless steel, the Clean-Geartech N85 worm gear is ideal for aggressive or hygienic environments, including food-grade, marine, or pharmaceutical applications.
• High reduction ratio of 52:1 allows precise control of output speed and torque, making it suitable for slow-speed, high-torque operations such as conveyors, agitators, or process equipment.
• The high-durability Ø35 mm output shaft provides robust mechanical coupling for demanding loads, ensuring long-term stability and reliability in dynamic systems.
• Gear input shaft diameter of 24 mm is compatible with a broad range of motor types, simplifying integration into existing systems.
• Compatible with IEC B14 motor flange size 90B14 for easy direct mounting of standard electric motors, minimizing installation time and complexity.
• BCD input of 115 mm and BCD output of 130 mm allows standardized mounting with aligned torque transmission and mechanical stability.
• Efficiency of 66% provides a good balance between torque output and energy consumption, particularly important in continuous or semi-continuous industrial operations.
• Stainless steel hollow-shaft option (if configured) offers additional corrosion resistance and easy washdown for hygienic applications.
• Compact gear size N85 allows installation in space-limited machinery or retrofit systems that require durable yet compact power transmission solutions.
• Precision-engineered worm gearing reduces vibration and noise, making it optimal for sensitive environments where mechanical noise must be minimized.The Clean-Geartech N85 worm gearbox is designed for technical specialists and engineers requiring a rugged, hygienic, and reliable drive solution. Its stainless steel construction and modular interface deliver maximum adaptability and long service life in critical industrial operations.
