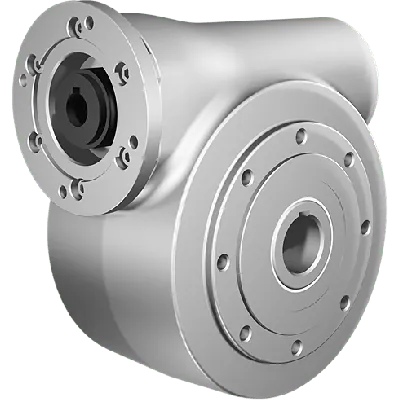

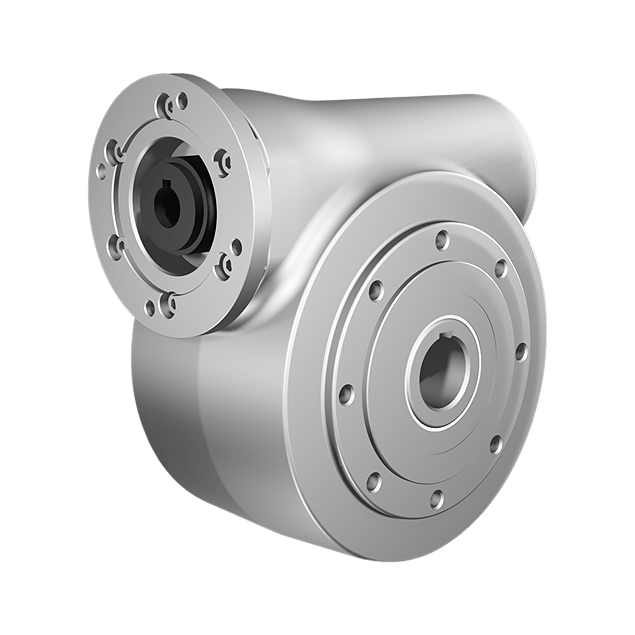

Clean-Geartech N85, worm gear Ø35, 52:1, input 80B14, stainless steel
HV82PN85UNIN090MKINN-RB3-D-OFThis unit features a gear ratio of 52:1 and a gear input shaft diameter of 19 mm paired with a gear output shaft diameter of 35 mm. The gear motor interface is type 80B14, offering compatibility with standard motor mounts. Constructed for durability, the gear material is stainless steel AISI 316L for high resistance to aggressive media. The unit achieves an efficiency of 66%. Both BCD input and output are 100 and 130 respectively, and it is built in gear size N85.
Specifications
Product description
Downloads
€1,991.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
52:1
BCD input
100
BCD output
130
Efficiency (%)
66
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
N85
Output speed at 1400 RPM
27
Max output torque (Nm)
289
Max kW input at 1400 rpm
1.2
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is known for its premium, hygienic drive solutions, specifically designed for use in demanding industrial and processing environments. With a focus on reliability, corrosion resistance, and ease of maintenance, Clean-Geartech products are especially suited for the food, pharmaceutical, and chemical industries where cleanliness and performance are critical.Below are the key features, benefits, and application options of the Clean-Geartech N85 Worm Gear in English:
High hygienic performance due to full construction in AISI 316L stainless steel – ideal for cleanroom environments and industries requiring high corrosion resistance.
Worm gear transmission with a 52:1 ratio – enables high torque output with compact dimensions, perfect for slow-speed, high-load applications.
Large Ø35 mm stainless steel output shaft – ensures durability and optimal torque transfer even under heavy load conditions.
Input flange interface 80B14 – compatible with a wide range of IEC motors, allowing easy integration into existing systems.
Input shaft diameter Ø19 mm – suitable for standard couplings and direct motor connections, simplifying installation.
Gear housing size N85 – optimized for medium-duty applications with space-efficient design.
66% mechanical efficiency – ensures effective power transmission while minimizing energy loss in continuous operation.
Excellent resistance to aggressive cleaning agents and chemicals – suitable for environments with frequent washdowns such as meat, dairy, and beverage processing.
Non-toxic, lubricant-sealed design – ensures compliance with food safety regulations (e.g., FDA and EU directives).
Can operate in wet or humid conditions without degradation – critical for marine, food-grade, and outdoor industrial applications.
Highly durable worm gear mechanism – designed for extended service intervals and reduced downtime.
Ideal for use in conveyor systems, mixers, agitators, dosing systems, and other hygienically sensitive process equipment.SKU: Clean-Geartech N85, Worm Gear Ø35 mm, 52:1, Input 80B14, Stainless Steel (AISI 316L) Manufacturer: Clean-Geartech – Precision hygienic gear solutions engineered for performance in hostile environments.
High hygienic performance due to full construction in AISI 316L stainless steel – ideal for cleanroom environments and industries requiring high corrosion resistance.
Worm gear transmission with a 52:1 ratio – enables high torque output with compact dimensions, perfect for slow-speed, high-load applications.
Large Ø35 mm stainless steel output shaft – ensures durability and optimal torque transfer even under heavy load conditions.
Input flange interface 80B14 – compatible with a wide range of IEC motors, allowing easy integration into existing systems.
Input shaft diameter Ø19 mm – suitable for standard couplings and direct motor connections, simplifying installation.
Gear housing size N85 – optimized for medium-duty applications with space-efficient design.
66% mechanical efficiency – ensures effective power transmission while minimizing energy loss in continuous operation.
Excellent resistance to aggressive cleaning agents and chemicals – suitable for environments with frequent washdowns such as meat, dairy, and beverage processing.
Non-toxic, lubricant-sealed design – ensures compliance with food safety regulations (e.g., FDA and EU directives).
Can operate in wet or humid conditions without degradation – critical for marine, food-grade, and outdoor industrial applications.
Highly durable worm gear mechanism – designed for extended service intervals and reduced downtime.
Ideal for use in conveyor systems, mixers, agitators, dosing systems, and other hygienically sensitive process equipment.SKU: Clean-Geartech N85, Worm Gear Ø35 mm, 52:1, Input 80B14, Stainless Steel (AISI 316L) Manufacturer: Clean-Geartech – Precision hygienic gear solutions engineered for performance in hostile environments.
