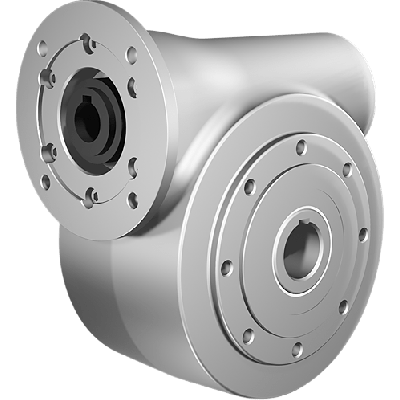

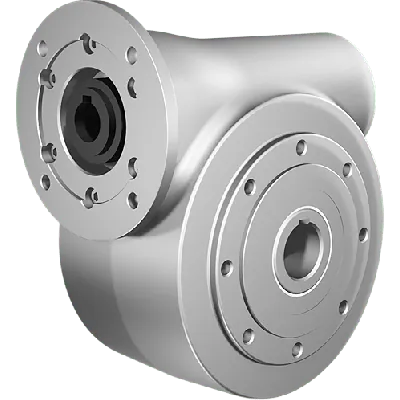

Clean-Geartech N85, worm gear Ø35, 38:1, input 90B14, stainless steel
HV82PN85UNIN070MKINN-TB3-E-OFIt features a gear ratio of 38:1 and a gear size N85, delivering efficient torque conversion with an efficiency of 71%. The input shaft diameter is 24 mm, while the output shaft diameter is 35 mm. The gear motor interface is 90B14, ensuring compatibility with standard motors.The gearing is made from stainless steel AISI 316L, offering durability in harsh or washdown environments. Specifications also include a BCD input of 115 mm and a BCD output of 130 mm. Designed for technical reliability, this gearbox is suitable for food, pharmaceutical, and marine sectors.
Specifications
Product description
Downloads
€1,995.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
12.800000
Material
Stainless steel AISI 316L
Ratio
38:1
BCD input
115
BCD output
130
Efficiency (%)
71
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
N85
Output speed at 1400 RPM
37
Max output torque (Nm)
336
Max kW input at 1400 rpm
1.8
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
The Clean-Geartech N85 is a high-performance worm gear unit designed for industrial environments requiring robustness, hygiene, and corrosion resistance. Manufactured by Clean-Geartech – a leading brand known for its precision-engineered gear solutions in stainless steel – this gearbox is particularly suited for demanding sectors such as food processing, pharma, marine, and chemical industries. Built with premium AISI 316L stainless steel, the N85 offers reliable torque transmission with a compact design, optimized for installations where cleanliness and durability are critical.Key Features & Application Advantages:
• Full housing and components in corrosion-resistant AISI 316L stainless steel, ensuring optimal resistance to aggressive cleaning chemicals and saline environments – ideal for food, pharmaceutical, and offshore industries.
• Stainless steel (SS) hollow output shaft Ø35 mm allows safe and efficient torque transfer under demanding load conditions, and is especially suitable for environments where hygiene and material integrity cannot be compromised.
• Compact worm gear module with a 38:1 ratio offers precise reduction for low-speed mechanical systems requiring high torque at lower rotational speeds – suitable for conveyors, mixers, and automated equipment.
• Input-side B14 flange interface (IEC 90B14-compatible) ensures easy integration with standard motor mounts, improving design flexibility across multiple machinery types.
• High-strength input shaft Ø24 mm constructed for mechanical stability during prolonged operational cycles in continuous processes and automation lines.
• Nominal gear efficiency at 71%, optimizing output force in systems where moderate energy efficiency is acceptable in favor of robustness and longevity.
• Gear unit mounting base diameter: BCD input 115 mm & BCD output 130 mm – versatile fitment across various mechanical interfaces without special adapters.
• Gear size N85 gives a compact footprint to power dense systems where available space is limited – ideal for modular equipment integration.Clean-Geartech stands for innovation, hygiene, and durability in motion control. With a strong commitment to quality and engineering excellence, Clean-Geartech delivers cutting-edge solutions for specialized industries where standard gear systems fall short.
• Full housing and components in corrosion-resistant AISI 316L stainless steel, ensuring optimal resistance to aggressive cleaning chemicals and saline environments – ideal for food, pharmaceutical, and offshore industries.
• Stainless steel (SS) hollow output shaft Ø35 mm allows safe and efficient torque transfer under demanding load conditions, and is especially suitable for environments where hygiene and material integrity cannot be compromised.
• Compact worm gear module with a 38:1 ratio offers precise reduction for low-speed mechanical systems requiring high torque at lower rotational speeds – suitable for conveyors, mixers, and automated equipment.
• Input-side B14 flange interface (IEC 90B14-compatible) ensures easy integration with standard motor mounts, improving design flexibility across multiple machinery types.
• High-strength input shaft Ø24 mm constructed for mechanical stability during prolonged operational cycles in continuous processes and automation lines.
• Nominal gear efficiency at 71%, optimizing output force in systems where moderate energy efficiency is acceptable in favor of robustness and longevity.
• Gear unit mounting base diameter: BCD input 115 mm & BCD output 130 mm – versatile fitment across various mechanical interfaces without special adapters.
• Gear size N85 gives a compact footprint to power dense systems where available space is limited – ideal for modular equipment integration.Clean-Geartech stands for innovation, hygiene, and durability in motion control. With a strong commitment to quality and engineering excellence, Clean-Geartech delivers cutting-edge solutions for specialized industries where standard gear systems fall short.
